<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Immersive' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='titlecontent='ScriptEventsPumpHouse.x3d'/>
<meta name='descriptioncontent='A Script node provides the path and orientation animation for three cones that orbit near the pump house.'/>
<meta name='creatorcontent='Todd Gagnon and Mark A. Boyd'/>
<meta name='translatorcontent=' Xeena VRML importer, X3D-Edit 3.1, https://www.web3d.org/x3d/content/README.X3D-Edit.html '/>
<meta name='createdcontent='8 June 1998'/>
<meta name='translatedcontent='20 December 2002'/>
<meta name='modifiedcontent='20 October 2019'/>
<meta name='referencecontent='KelpTank.x3d'/>
<meta name='referencecontent=' https://X3dGraphics.com/examples/X3dForWebAuthors/KelpForestExhibit/PumpHouse.x3d '/>
<meta name='identifiercontent=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter09EventUtilitiesScripting/ScriptEventsPumpHouse.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='generatorcontent='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!-- -->
<Scene>
<WorldInfo info='"DTG of last update: 081200Jun98 Added: Updated: cycleInterval to 5.5 Modeled by: Todd Gagnon and Mark A. Boyd"title='pumpHouse1.4.wrl'/>
<Background skyColor='1 1 1'/>

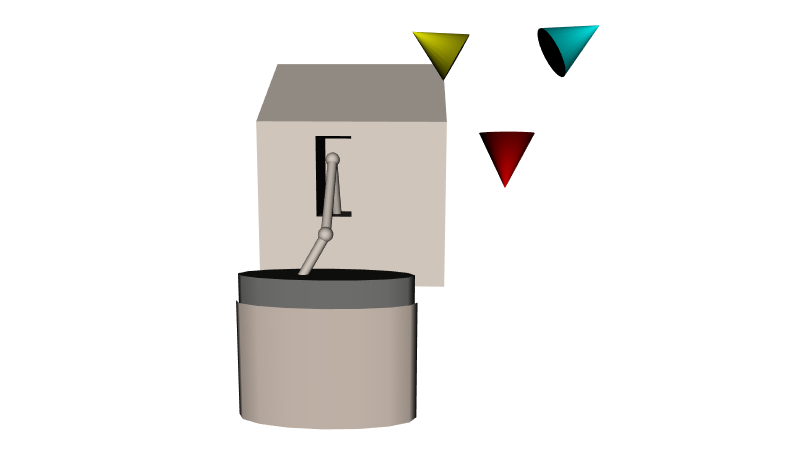

<Viewpoint description='Book Vieworientation='-0.969 0.239 0.056 0.13position='1.66 1.34 5.95'/>
<Group>
<Transform scale='0.91 0.6 0.3translation='0.8 -0.65 0.5'>
<Shape>
<Appearance>
<Material diffuseColor='0.749 0.694 0.651'/>
</Appearance>
<Cylinder bottom='falsetop='false'/>
</Shape>
</Transform>
<Group>
<Shape>
<Appearance DEF='PumpHouseAppearance'>
<Material diffuseColor='0.82 0.78 0.74'/>
</Appearance>
<IndexedFaceSet coordIndex='0 1 5 4 -1 5 1 2 6 -1 6 2 3 7 -1 3 0 4 7 -1 1 12 13 2 -1 2 13 14 -1 12 15 16 13 -1 15 0 3 16 -1 16 3 17 -1 9 5 6 10 -1 8 9 10 11 -1 4 8 11 7 -1 4 5 9 8 -1 11 10 6 7 -1 3 2 14 17 -1 13 16 17 14 -1'>
<Coordinate point='0.0 0.0 0.0 2.0 0.0 0.0 2.0 1.75 0.0 0.0 1.75 0.0 0.625 0.75 0.0 1.0 0.75 0.0 1.0 1.6 0.0 0.625 1.6 0.0 0.625 0.75 -0.65 1.0 0.75 -0.65 1.0 1.6 -0.65 0.625 1.6 -0.65 2.0 0.0 -2.7 2.0 1.75 -2.7 2.0 2.5 -1.0 0.0 0.0 -2.7 0.0 1.75 -2.7 0.0 2.5 -1.0'/>
</IndexedFaceSet>
</Shape>
<!-- ROUTE information for PumpTouched node:  [from isActive to Filter.set_boolean ] -->
<TouchSensor DEF='PumpToucheddescription='touch to activate'/>
</Group>
</Group>
<Group>
<Transform scale='0.5 0.5 0.5translation='1.0 1.1 -1.5'>
<!-- ROUTE information for PistonTransform node:  [from PistonPath.value_changed to set_translation ] -->
<Transform DEF='PistonTransform'>
<Transform scale='1.8 1.2 0.6translation='0.0 -0.2 0.0'>
<Shape>
<Appearance>
<Material diffuseColor='0.427 0.427 0.42'/>
</Appearance>
<Cylinder height='1.0radius='0.98'/>
</Shape>
</Transform>
<Transform DEF='CylinderRodrotation='0.0 0.0 -1.0 0.523599translation='-0.25 0.75 0.0'>
<Shape>
<Appearance USE='PumpHouseAppearance'/>
<Cylinder height='1.0radius='0.1'/>
</Shape>
</Transform>
<Transform rotation='0.0 0.0 1.0 1.047198translation='1.0 0.6 0.0'>
<Transform USE='CylinderRod'/>
</Transform>
<Transform translation='0.0 1.2 0.0'>
<Shape>
<Appearance USE='PumpHouseAppearance'/>
<Sphere radius='0.15'/>
</Shape>
</Transform>
<!-- ROUTE information for RockerArm1 node:  [from Rocker1Path.value_changed to set_translation ] [from Rocker1Rotation.value_changed to set_rotation ] -->
<Transform DEF='RockerArm1center='0.0 -0.4 0.0'>
<Shape>
<Appearance USE='PumpHouseAppearance'/>
<Cylinder height='1.8radius='0.1'/>
</Shape>
<Transform translation='0.0 0.95 0.0'>
<Shape>
<Appearance USE='PumpHouseAppearance'/>
<Sphere radius='0.15'/>
</Shape>
</Transform>
<!-- ROUTE information for Rocker1Path node:  [from PistonClock.fraction_changed to set_fraction ] [from value_changed to RockerArm1.set_translation ] -->
<PositionInterpolator DEF='Rocker1Pathkey='0.0 0.3 0.32 0.5 0.75 1.0keyValue='0.0 2.0 -0.25 0.0 1.8 -0.35 0.0 1.8 -0.35 0.0 2.0 -0.25 0.0 2.0 -0.12 0.0 2.0 -0.25'/>
<!-- ROUTE information for Rocker1Rotation node:  [from PistonClock.fraction_changed to set_fraction ] [from value_changed to RockerArm1.set_rotation ] -->
<OrientationInterpolator DEF='Rocker1Rotationkey='0.0 0.3 0.32 0.5 0.75 1.0keyValue='-1.0 0.0 0.0 0.523599 -1.0 0.0 0.0 1.0471976 -1.0 0.0 0.0 1.0471976 -1.0 0.0 0.0 0.523599 -1.0 0.0 0.0 0.2617994 -1.0 0.0 0.0 0.523599'/>
</Transform>
<!-- ROUTE information for RockerArm2 node:  [from Rocker2Path.value_changed to set_translation ] [from Rocker2Rotation.value_changed to set_rotation ] -->
<Transform DEF='RockerArm2center='0.0 0.7 0.0'>
<Shape>
<Appearance USE='PumpHouseAppearance'/>
<Cylinder height='1.8radius='0.1'/>
</Shape>
<Transform translation='0.0 -0.95 0.0'>
<Shape>
<Appearance USE='PumpHouseAppearance'/>
<Sphere radius='0.15'/>
</Shape>
</Transform>
<!-- ROUTE information for Rocker2Path node:  [from PistonClock.fraction_changed to set_fraction ] [from value_changed to RockerArm2.set_translation ] -->
<PositionInterpolator DEF='Rocker2Pathkey='0.0 0.3 0.32 0.5 0.75 1.0keyValue='0.0 1.95 -1.0 0.0 1.2 -1.6 0.0 1.2 -1.6 0.0 1.95 -1.0 0.0 2.2 -0.65 0.0 1.95 -1.0'/>
<!-- ROUTE information for Rocker2Rotation node:  [from PistonClock.fraction_changed to set_fraction ] [from value_changed to RockerArm2.set_rotation ] -->
<OrientationInterpolator DEF='Rocker2Rotationkey='0.0 0.3 0.32 0.5 0.75 1.0keyValue='1.0 0.0 0.0 0.523599 1.0 0.0 0.0 0.4 1.0 0.0 0.0 0.4 1.0 0.0 0.0 0.523599 1.0 0.0 0.0 1.570796 1.0 0.0 0.0 0.523599'/>
</Transform>
</Transform>
<!-- ROUTE information for PistonClock node:  [from Filter.inputFalse to enabled ] [from fraction_changed to PistonPath.set_fraction ] [from fraction_changed to Rocker1Path.set_fraction ] [from fraction_changed to Rocker1Rotation.set_fraction ] [from fraction_changed to Rocker2Path.set_fraction ] [from fraction_changed to Rocker2Rotation.set_fraction ] -->
<TimeSensor DEF='PistonClockcycleInterval='5.5loop='true'/>
<!-- ROUTE information for PistonPath node:  [from PistonClock.fraction_changed to set_fraction ] [from value_changed to PistonTransform.set_translation ] -->
<PositionInterpolator DEF='PistonPathkey='0.0 0.3 0.32 0.5 0.75 1.0keyValue='-0.4 -2.3 4.0 -0.4 -1.5 4.0 -0.4 -1.5 4.0 -0.4 -2.3 4.0 -0.4 -3.3 4.0 -0.4 -2.3 4.0'/>
<!-- ROUTE information for Timer node:  [from Filter.inputTrue to enabled ] [from fraction_changed to Angle.set_fraction ] -->
<TimeSensor DEF='TimercycleInterval='2enabled='falseloop='truestartTime='1'/>
<!-- ROUTE information for Angle node:  [from Timer.fraction_changed to set_fraction ] [from value_changed to Control.angle ] -->
<ScalarInterpolator DEF='Anglekey='0 1keyValue='0 6.28319'/>
<!-- ROUTE information for Filter node:  [from PumpTouched.isActive to set_boolean ] [from inputTrue to Timer.enabled ] [from inputFalse to PistonClock.enabled ] -->
<BooleanFilter DEF='FiltercontainerField='children'/>
<Transform translation='3 2 4'>
<Transform DEF='EyeCandy'>
<!-- ROUTE information for CandyRed node:  [from Control.positionRed to translation ] [from Control.orientationRed to rotation ] -->
<Transform DEF='CandyRedrotation='0 0 1 3.14translation='0 -1.5 .5'>
<Shape>
<Appearance>
<Material diffuseColor='1 0 0'/>
</Appearance>
<Cone DEF='b1bottomRadius='.5height='1'/>
</Shape>
</Transform>
<!-- ROUTE information for CandyGreen node:  [from Control.positionGreen to translation ] [from Control.orientationGreen to rotation ] -->
<Transform DEF='CandyGreenrotation='0 0 1 -1.05translation='1.3 .75 0'>
<Shape>
<Appearance>
<Material diffuseColor='0 1 1'/>
</Appearance>
<Cone USE='b1'/>
</Shape>
</Transform>
<!-- ROUTE information for CandyTurquoise node:  [from Control.positionTurquoise to translation ] [from Control.orientationTurquoise to rotation ] -->
<Transform DEF='CandyTurquoiserotation='0 0 1 1.05translation='-1.3 .75 -.5'>
<Shape>
<Appearance>
<Material diffuseColor='1 1 0'/>
</Appearance>
<Cone USE='b1'/>
</Shape>
</Transform>
</Transform>
</Transform>
<!-- ROUTE information for Control node:  [from Angle.value_changed to angle ] [from positionRed to CandyRed.translation ] [from positionGreen to CandyGreen.translation ] [from positionTurquoise to CandyTurquoise.translation ] [from orientationRed to CandyRed.rotation ] [from orientationGreen to CandyGreen.rotation ] [from orientationTurquoise to CandyTurquoise.rotation ] -->
<Script DEF='Control'
  url=' "ScriptEventsPumpHouse.js" "https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter09EventUtilitiesScripting/ScriptEventsPumpHouse.js" '>
<field name='angletype='SFFloataccessType='inputOnly'/>
<field name='positionRedtype='SFVec3faccessType='outputOnly'/>
<field name='positionGreentype='SFVec3faccessType='outputOnly'/>
<field name='positionTurquoisetype='SFVec3faccessType='outputOnly'/>
<field name='orientationRedtype='SFRotationaccessType='outputOnly'/>
<field name='orientationGreentype='SFRotationaccessType='outputOnly'/>
<field name='orientationTurquoisetype='SFRotationaccessType='outputOnly'/>
</Script>
</Transform>
</Group>
<ROUTE fromNode='PumpTouchedfromField='isActivetoNode='FiltertoField='set_boolean'/>
<ROUTE fromNode='FilterfromField='inputTruetoNode='TimertoField='enabled'/>
<ROUTE fromNode='TimerfromField='fraction_changedtoNode='AngletoField='set_fraction'/>
<ROUTE fromNode='AnglefromField='value_changedtoNode='ControltoField='angle'/>
<ROUTE fromNode='ControlfromField='positionRedtoNode='CandyRedtoField='translation'/>
<ROUTE fromNode='ControlfromField='positionGreentoNode='CandyGreentoField='translation'/>
<ROUTE fromNode='ControlfromField='positionTurquoisetoNode='CandyTurquoisetoField='translation'/>
<ROUTE fromNode='ControlfromField='orientationRedtoNode='CandyRedtoField='rotation'/>
<ROUTE fromNode='ControlfromField='orientationGreentoNode='CandyGreentoField='rotation'/>
<ROUTE fromNode='ControlfromField='orientationTurquoisetoNode='CandyTurquoisetoField='rotation'/>
<ROUTE fromNode='FilterfromField='inputFalsetoNode='PistonClocktoField='enabled'/>
<ROUTE fromNode='PistonClockfromField='fraction_changedtoNode='PistonPathtoField='set_fraction'/>
<ROUTE fromNode='PistonPathfromField='value_changedtoNode='PistonTransformtoField='set_translation'/>
<ROUTE fromNode='PistonClockfromField='fraction_changedtoNode='Rocker1PathtoField='set_fraction'/>
<ROUTE fromNode='Rocker1PathfromField='value_changedtoNode='RockerArm1toField='set_translation'/>
<ROUTE fromNode='PistonClockfromField='fraction_changedtoNode='Rocker1RotationtoField='set_fraction'/>
<ROUTE fromNode='Rocker1RotationfromField='value_changedtoNode='RockerArm1toField='set_rotation'/>
<ROUTE fromNode='PistonClockfromField='fraction_changedtoNode='Rocker2PathtoField='set_fraction'/>
<ROUTE fromNode='Rocker2PathfromField='value_changedtoNode='RockerArm2toField='set_translation'/>
<ROUTE fromNode='PistonClockfromField='fraction_changedtoNode='Rocker2RotationtoField='set_fraction'/>
<ROUTE fromNode='Rocker2RotationfromField='value_changedtoNode='RockerArm2toField='set_rotation'/>
</Scene>
</X3D>
<!--
