<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Interactive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='title' content='OrigamiCranes.x3d'/>
<meta name='description' content='Origami Cranes with black/white contrast as art work for Black Swan game.'/>
<meta name='created' content='2 November 2014'/>
<meta name='modified' content='20 October 2019'/>
<meta name='creator' content='epicpopcorn'/>
<meta name='reference' content=' http://www.turbosquid.com/FullPreview/Index.cfm/ID/598176 '/>
<meta name='reference' content='crane.obj'/>
<meta name='reference' content='OrigamiCrane.ply'/>
<meta name='translator' content='Don Brutzman'/>
<meta name='reference' content=' https://en.wikipedia.org/wiki/Swan '/>
<meta name='reference' content=' https://en.wikipedia.org/wiki/Orizuru '/>
<meta name='reference' content=' https://www.youtube.com/watch?v=CXwwPgMiEPc '/>
<meta name='reference' content=' http://www.origami-make.com/howto-origami-swan.php '/>
<meta name='reference' content=' http://origami.about.com/od/Origami-Animals/tp/How-To-Make-An-Origami-Swan.htm '/>
<meta name='reference' content=' https://en.wikipedia.org/wiki/The_Black_Swan_(2007_book) '/>
<meta name='reference' content=' https://en.wikipedia.org/wiki/Nassim_Nicholas_Taleb '/>
<meta name='reference' content='Making sense of The Black Swan por Mark Crovelli, quarta-feira, 18 de abril de 2012'/>
<meta name='reference' content=' http://www.mises.org.br/Article.aspx?id=1284 '/>
<meta name='Image' content=' http://www.mises.org.br/images/articles/2012/Abril/black_swan.jpg '/>
<meta name='Image' content='OrigamiBlackSwanWhiteSwan.jpg'/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/Animation/OrigamiCranes.x3d '/>

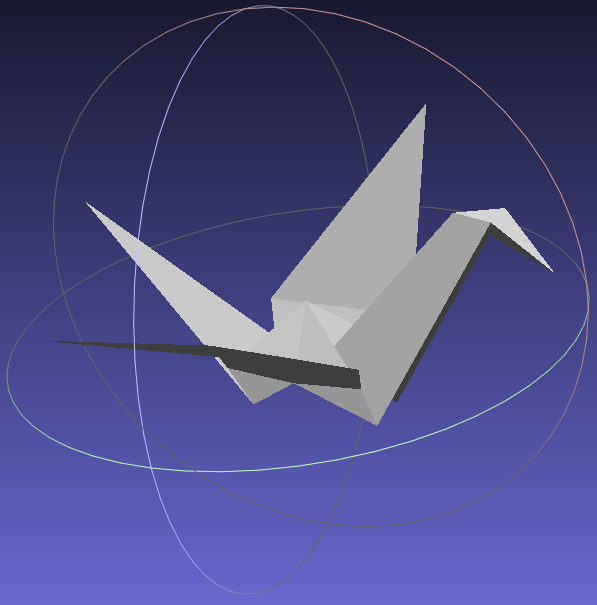

<meta name='Image' content='OrigamiCraneMeshlab.png'/>
<meta name=' warning ' content=' X3DJSAIL: NavigationInfo type newValue=""NONE""
has an unrecognized value not matching any of the optional string tokens. '/>
<meta name='generator' content='Meshlab X3D Exported, http://meshlab.sourceforge.net'/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' http://support.turbosquid.com/entries/31030006-Royalty-Free-License?locale=1 '/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
Index for DEF nodes : AnimatedView, CraneAbove, CraneBelow, CraneIFS, CraneShapeBlack, CraneShapeWhite, MovingPov, MovingPovLocation, MovingPovRotation, PovClock, TranslateToOrigin
Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, MovingPov
-->
<Scene>
<WorldInfo title='OrigamiCranes.x3d'/>
<Background groundAngle='1.5707' groundColor='1 1 1 1 1 1' skyAngle='0' skyColor='0 0 0 0 0 0'/>
<NavigationInfo type='"NONE"'/>
<PointLight intensity='0.3' location='0 2 6'/>
<PointLight intensity='0.3' location='0 -2 6'/>
<Group DEF='AnimatedView'>
<!-- ROUTE information for MovingPov node:  [from MovingPovLocation.value_changed to position ] [from MovingPovRotation.value_changed to set_orientation ] -->

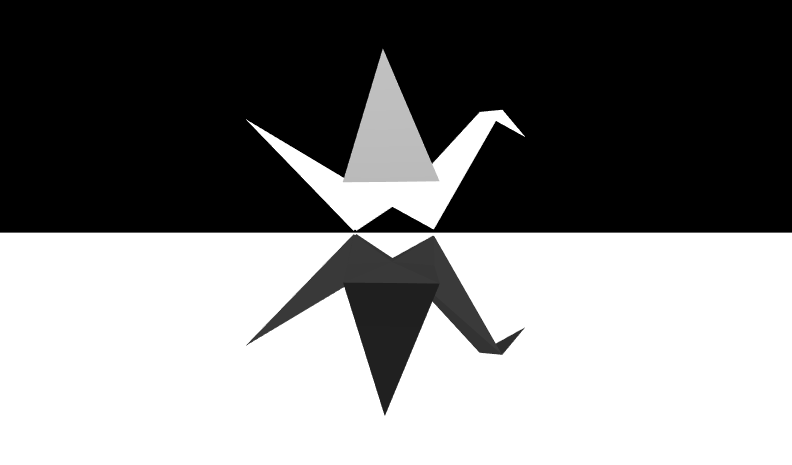

 <Viewpoint DEF='MovingPov' description='Rotating Viewpoint'/>
<!-- ROUTE information for PovClock node:  [from fraction_changed to MovingPovLocation.set_fraction ] [from fraction_changed to MovingPovRotation.set_fraction ] -->
 <TimeSensor DEF='PovClock' cycleInterval='60' loop='true'/>
<!-- ROUTE information for MovingPovLocation node:  [from PovClock.fraction_changed to set_fraction ] [from value_changed to MovingPov.position ] -->
 <PositionInterpolator DEF='MovingPovLocation' key='0 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1' keyValue='0 0 3 3 0 2 3 0 2 0 0 3 0 0 3 -3 0 2 -3 0 2 0 0 3 0 0 3'/>
<ROUTE fromNode='PovClock' fromField='fraction_changed' toNode='MovingPovLocation' toField='set_fraction'/>
<ROUTE fromNode='MovingPovLocation' fromField='value_changed' toNode='MovingPov' toField='position'/>
<!-- ROUTE information for MovingPovRotation node:  [from PovClock.fraction_changed to set_fraction ] [from value_changed to MovingPov.set_orientation ] -->
 <OrientationInterpolator DEF='MovingPovRotation' key='0 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1' keyValue='0 1 0 0 0 1 0 0.982794 0 1 0 0.982794 0 1 0 0 0 1 0 0 0 1 0 -0.982794 0 1 0 -0.982794 0 1 0 0 0 1 0 0'/>
<ROUTE fromNode='PovClock' fromField='fraction_changed' toNode='MovingPovRotation' toField='set_fraction'/>
<ROUTE fromNode='MovingPovRotation' fromField='value_changed' toNode='MovingPov' toField='set_orientation'/>
</Group>
<Viewpoint description='Origami Cranes, from ahead' orientation='0 1 0 0.982794' position='3 0 2'/>
<Viewpoint description='Origami Cranes, mirror image' position='0 0 3'/>
<Viewpoint description='Origami Cranes, from behind' orientation='0 1 0 -0.982794' position='-3 0 2'/>
<Transform DEF='CraneAbove' rotation='0 1 0 1.745329'>
<!-- Rotation was necessary to point along X axis -->
<Transform DEF='TranslateToOrigin' translation='0.25 -0.18 -0.1'>
<Shape DEF='CraneShapeWhite'>
<IndexedFaceSet DEF='CraneIFS' solid='false' coordIndex='0 1 2 -1 0 2 3 -1 4 5 2 -1 4 2 1 -1 1 0 6 -1 7 2 8 -1 3 9 10 -1 11 12 13 -1 12 9 14 -1 11 9 12 -1 15 2 7 -1 14 9 2 -1 7 10 15 -1 12 15 16 -1 13 12 16 -1 14 15 12 -1 16 17 13 -1 13 17 11 -1 15 14 2 -1 9 3 2 -1 1 6 4 -1 18 8 2 -1 5 19 20 -1 21 22 23 -1 23 24 20 -1 21 23 20 -1 25 18 2 -1 24 2 20 -1 18 25 19 -1 23 26 25 -1 22 26 23 -1 24 23 25 -1 26 22 27 -1 22 21 27 -1 25 2 24 -1 20 2 5 -1'>
<!-- Original model values are quite large, converted from inches to meters using factor 0.0254 to rescale, wingtip is now 0.8m and length is 1.5m. -->
<Coordinate point='-0.39882 0.8134 0.63626 -0.33169 0.81323 0.53558 -0.2503 0.31524 0.08395 -0.35153 0.19681 0.28621 -0.30394 0.8134 0.65336 -0.22605 0.19681 0.30883 -0.37413 0.67816 0.77105 -0.28707 0.18877 -0.12428 -0.11107 0.78537 -0.68858 -0.40796 0.34843 0.27538 -0.37208 0.32894 0.06357 -0.45279 0.43502 0.29314 -0.37197 0.32891 0.06359 -0.40743 0.43285 0.05396 -0.25021 0.52642 0.08345 -0.33581 0.34187 -0.15904 -0.36691 0.43174 -0.18336 -1.12733 0.86101 -0.07052 -0.14315 0.18877 -0.09835 -0.12906 0.32894 0.10737 -0.16939 0.34843 0.31838 -0.13358 0.43502 0.35067 -0.09258 0.43285 0.11071 -0.12918 0.32891 0.10735 -0.25021 0.52642 0.08345 -0.08534 0.34187 -0.1139 -0.0477 0.43174 -0.12584 0.62547 0.86101 0.24538'/>
</IndexedFaceSet>
<Appearance>
<Material diffuseColor='0.9 0.9 0.9'/>
</Appearance>
</Shape>
</Transform>
</Transform>
<Transform DEF='CraneBelow' rotation='1 0 0 3.141593'>
<Transform rotation='0 1 0 1.745329'>
<Transform translation='0.25 -0.18 -0.1'>
<Shape DEF='CraneShapeBlack'>
<IndexedFaceSet USE='CraneIFS'/>
<Appearance>
<Material diffuseColor='0.15 0.15 0.15'/>
</Appearance>
</Shape>
</Transform>
</Transform>
</Transform>
</Scene>
</X3D>
<!--
Index for DEF nodes : AnimatedView, CraneAbove, CraneBelow, CraneIFS, CraneShapeBlack, CraneShapeWhite, MovingPov, MovingPovLocation, MovingPovRotation, PovClock, TranslateToOrigin
Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, MovingPov
-->

<!-- Color key: <X3dNode DEF='idName' field='value'/> matches <XmlElement DEF='idName' attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->

<!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources and X3D Scene Authoring Hints. -->
