<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Interchange' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='titlecontent='CapsuleComparison.x3d'/>
<meta name='descriptioncontent='CapsuleComparison shows three capsules, using polygons/lines/points rendering, each a hollow cylinder with hemispherical end caps. These models were created by CapsuleGenerator.x3d (producing X3D source on the console) with 36 numberOfPoints around horizontal perimeter, 10 vertical levels, radius 0.5 and total height of 2.'/>
<meta name='createdcontent='13 October 2014'/>
<meta name='modifiedcontent='20 October 2019'/>
<meta name='referencecontent='CapsuleGenerator.x3d'/>
<meta name='referencecontent='CapsuleGenerator.js'/>
<meta name='creatorcontent='Don Brutzman'/>
<meta name='hintcontent='Compare regular and wireframe rendering for a given browser to see if the polygonal quadrilaterals in the Capsule are further tesselated by the browser.'/>

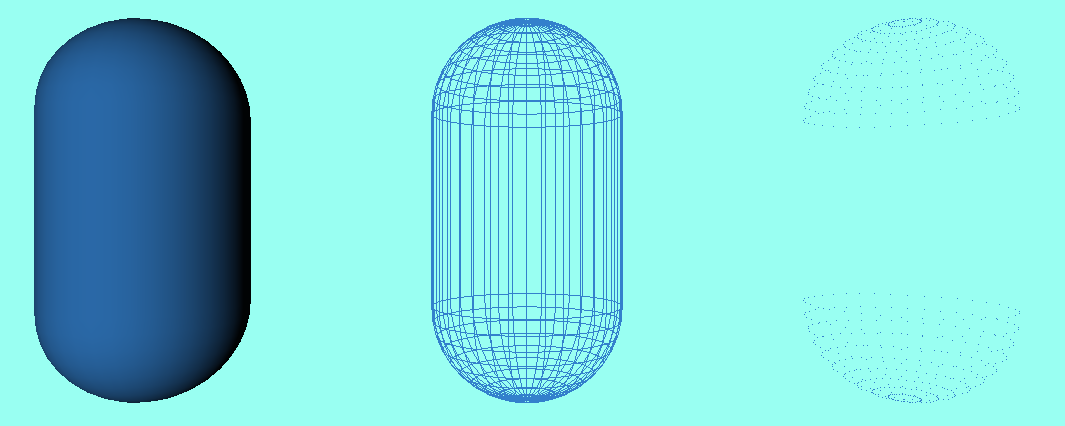

<meta name='Imagecontent='CapsuleComparisonRegularRendering.png'/>

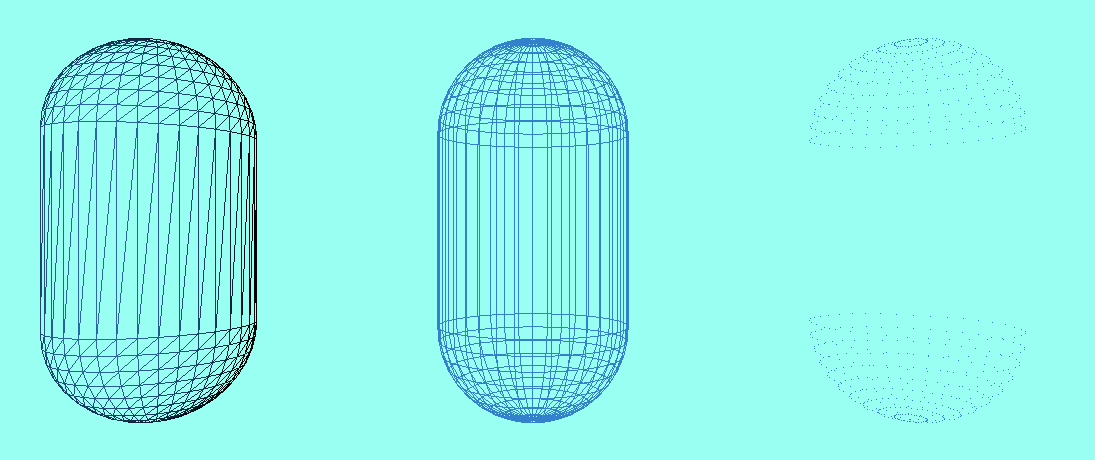

<meta name='Imagecontent='CapsuleComparisonWireframeRendering.png'/>
<meta name='referencecontent=' https://en.wikipedia.org/wiki/Capsule_(geometry) '/>
<meta name='referencecontent=' https://en.wiktionary.org/wiki/capsule '/>
<meta name='referencecontent=' https://en.wikipedia.org/wiki/Platonic_solid '/>
<meta name='referencecontent=' https://en.wikipedia.org/wiki/Geodesic_grid '/>
<meta name='referencecontent=' http://www.kjmaclean.com/Geometry/Capsule.html '/>
<meta name='referencecontent=' http://polyhedra.org/poly/show/4/capsule '/>
<meta name='referencecontent=' http://www.georgehart.com/virtual-polyhedra/vp.html '/>
<meta name='infocontent='Development of this scene added new features to X3D-Edit'/>
<meta name='identifiercontent=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/CapsuleComparison.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!--

Index for DEF nodes : linesCapsule, PointArray36x10, pointsCapsule, polygonsCapsule

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4
-->
<Scene>
<WorldInfo title='CapsuleComparison.x3d'/>
<Background skyColor='0.6 1 0.95'/>
<Viewpoint description='Capsule Comparisonposition='0 0 7'/>
<Viewpoint description='Polygons Capsuleposition='-2 0 3'/>
<Viewpoint description='Lines Capsuleposition='0 0 3'/>
<Viewpoint description='Points Capsuleposition='2 0 3'/>
<Transform translation='-2 0 0'>
<Shape DEF='polygonsCapsule'>
<!-- polygons Capsule consisting of 36 sides, with [36 circumference points * (10+1) vertical levels = 396] top-cap and 396 bottom-cap quadrilaterals together making a total of 792 Coordinate point values -->
<IndexedFaceSet creaseAngle='0.785398coordIndex='37 36 0 1 -1 38 37 1 2 -1 39 38 2 3 -1 40 39 3 4 -1 41 40 4 5 -1 42 41 5 6 -1 43 42 6 7 -1 44 43 7 8 -1 45 44 8 9 -1 46 45 9 10 -1 47 46 10 11 -1 48 47 11 12 -1 49 48 12 13 -1 50 49 13 14 -1 51 50 14 15 -1 52 51 15 16 -1 53 52 16 17 -1 54 53 17 18 -1 55 54 18 19 -1 56 55 19 20 -1 57 56 20 21 -1 58 57 21 22 -1 59 58 22 23 -1 60 59 23 24 -1 61 60 24 25 -1 62 61 25 26 -1 63 62 26 27 -1 64 63 27 28 -1 65 64 28 29 -1 66 65 29 30 -1 67 66 30 31 -1 68 67 31 32 -1 69 68 32 33 -1 70 69 33 34 -1 71 70 34 35 -1 36 71 35 0 -1 73 72 36 37 -1 74 73 37 38 -1 75 74 38 39 -1 76 75 39 40 -1 77 76 40 41 -1 78 77 41 42 -1 79 78 42 43 -1 80 79 43 44 -1 81 80 44 45 -1 82 81 45 46 -1 83 82 46 47 -1 84 83 47 48 -1 85 84 48 49 -1 86 85 49 50 -1 87 86 50 51 -1 88 87 51 52 -1 89 88 52 53 -1 90 89 53 54 -1 91 90 54 55 -1 92 91 55 56 -1 93 92 56 57 -1 94 93 57 58 -1 95 94 58 59 -1 96 95 59 60 -1 97 96 60 61 -1 98 97 61 62 -1 99 98 62 63 -1 100 99 63 64 -1 101 100 64 65 -1 102 101 65 66 -1 103 102 66 67 -1 104 103 67 68 -1 105 104 68 69 -1 106 105 69 70 -1 107 106 70 71 -1 72 107 71 36 -1 109 108 72 73 -1 110 109 73 74 -1 111 110 74 75 -1 112 111 75 76 -1 113 112 76 77 -1 114 113 77 78 -1 115 114 78 79 -1 116 115 79 80 -1 117 116 80 81 -1 118 117 81 82 -1 119 118 82 83 -1 120 119 83 84 -1 121 120 84 85 -1 122 121 85 86 -1 123 122 86 87 -1 124 123 87 88 -1 125 124 88 89 -1 126 125 89 90 -1 127 126 90 91 -1 128 127 91 92 -1 129 128 92 93 -1 130 129 93 94 -1 131 130 94 95 -1 132 131 95 96 -1 133 132 96 97 -1 134 133 97 98 -1 135 134 98 99 -1 136 135 99 100 -1 137 136 100 101 -1 138 137 101 102 -1 139 138 102 103 -1 140 139 103 104 -1 141 140 104 105 -1 142 141 105 106 -1 143 142 106 107 -1 108 143 107 72 -1 145 144 108 109 -1 146 145 109 110 -1 147 146 110 111 -1 148 147 111 112 -1 149 148 112 113 -1 150 149 113 114 -1 151 150 114 115 -1 152 151 115 116 -1 153 152 116 117 -1 154 153 117 118 -1 155 154 118 119 -1 156 155 119 120 -1 157 156 120 121 -1 158 157 121 122 -1 159 158 122 123 -1 160 159 123 124 -1 161 160 124 125 -1 162 161 125 126 -1 163 162 126 127 -1 164 163 127 128 -1 165 164 128 129 -1 166 165 129 130 -1 167 166 130 131 -1 168 167 131 132 -1 169 168 132 133 -1 170 169 133 134 -1 171 170 134 135 -1 172 171 135 136 -1 173 172 136 137 -1 174 173 137 138 -1 175 174 138 139 -1 176 175 139 140 -1 177 176 140 141 -1 178 177 141 142 -1 179 178 142 143 -1 144 179 143 108 -1 181 180 144 145 -1 182 181 145 146 -1 183 182 146 147 -1 184 183 147 148 -1 185 184 148 149 -1 186 185 149 150 -1 187 186 150 151 -1 188 187 151 152 -1 189 188 152 153 -1 190 189 153 154 -1 191 190 154 155 -1 192 191 155 156 -1 193 192 156 157 -1 194 193 157 158 -1 195 194 158 159 -1 196 195 159 160 -1 197 196 160 161 -1 198 197 161 162 -1 199 198 162 163 -1 200 199 163 164 -1 201 200 164 165 -1 202 201 165 166 -1 203 202 166 167 -1 204 203 167 168 -1 205 204 168 169 -1 206 205 169 170 -1 207 206 170 171 -1 208 207 171 172 -1 209 208 172 173 -1 210 209 173 174 -1 211 210 174 175 -1 212 211 175 176 -1 213 212 176 177 -1 214 213 177 178 -1 215 214 178 179 -1 180 215 179 144 -1 217 216 180 181 -1 218 217 181 182 -1 219 218 182 183 -1 220 219 183 184 -1 221 220 184 185 -1 222 221 185 186 -1 223 222 186 187 -1 224 223 187 188 -1 225 224 188 189 -1 226 225 189 190 -1 227 226 190 191 -1 228 227 191 192 -1 229 228 192 193 -1 230 229 193 194 -1 231 230 194 195 -1 232 231 195 196 -1 233 232 196 197 -1 234 233 197 198 -1 235 234 198 199 -1 236 235 199 200 -1 237 236 200 201 -1 238 237 201 202 -1 239 238 202 203 -1 240 239 203 204 -1 241 240 204 205 -1 242 241 205 206 -1 243 242 206 207 -1 244 243 207 208 -1 245 244 208 209 -1 246 245 209 210 -1 247 246 210 211 -1 248 247 211 212 -1 249 248 212 213 -1 250 249 213 214 -1 251 250 214 215 -1 216 251 215 180 -1 253 252 216 217 -1 254 253 217 218 -1 255 254 218 219 -1 256 255 219 220 -1 257 256 220 221 -1 258 257 221 222 -1 259 258 222 223 -1 260 259 223 224 -1 261 260 224 225 -1 262 261 225 226 -1 263 262 226 227 -1 264 263 227 228 -1 265 264 228 229 -1 266 265 229 230 -1 267 266 230 231 -1 268 267 231 232 -1 269 268 232 233 -1 270 269 233 234 -1 271 270 234 235 -1 272 271 235 236 -1 273 272 236 237 -1 274 273 237 238 -1 275 274 238 239 -1 276 275 239 240 -1 277 276 240 241 -1 278 277 241 242 -1 279 278 242 243 -1 280 279 243 244 -1 281 280 244 245 -1 282 281 245 246 -1 283 282 246 247 -1 284 283 247 248 -1 285 284 248 249 -1 286 285 249 250 -1 287 286 250 251 -1 252 287 251 216 -1 289 288 252 253 -1 290 289 253 254 -1 291 290 254 255 -1 292 291 255 256 -1 293 292 256 257 -1 294 293 257 258 -1 295 294 258 259 -1 296 295 259 260 -1 297 296 260 261 -1 298 297 261 262 -1 299 298 262 263 -1 300 299 263 264 -1 301 300 264 265 -1 302 301 265 266 -1 303 302 266 267 -1 304 303 267 268 -1 305 304 268 269 -1 306 305 269 270 -1 307 306 270 271 -1 308 307 271 272 -1 309 308 272 273 -1 310 309 273 274 -1 311 310 274 275 -1 312 311 275 276 -1 313 312 276 277 -1 314 313 277 278 -1 315 314 278 279 -1 316 315 279 280 -1 317 316 280 281 -1 318 317 281 282 -1 319 318 282 283 -1 320 319 283 284 -1 321 320 284 285 -1 322 321 285 286 -1 323 322 286 287 -1 288 323 287 252 -1 325 324 288 289 -1 326 325 289 290 -1 327 326 290 291 -1 328 327 291 292 -1 329 328 292 293 -1 330 329 293 294 -1 331 330 294 295 -1 332 331 295 296 -1 333 332 296 297 -1 334 333 297 298 -1 335 334 298 299 -1 336 335 299 300 -1 337 336 300 301 -1 338 337 301 302 -1 339 338 302 303 -1 340 339 303 304 -1 341 340 304 305 -1 342 341 305 306 -1 343 342 306 307 -1 344 343 307 308 -1 345 344 308 309 -1 346 345 309 310 -1 347 346 310 311 -1 348 347 311 312 -1 349 348 312 313 -1 350 349 313 314 -1 351 350 314 315 -1 352 351 315 316 -1 353 352 316 317 -1 354 353 317 318 -1 355 354 318 319 -1 356 355 319 320 -1 357 356 320 321 -1 358 357 321 322 -1 359 358 322 323 -1 324 359 323 288 -1 361 360 324 325 -1 362 361 325 326 -1 363 362 326 327 -1 364 363 327 328 -1 365 364 328 329 -1 366 365 329 330 -1 367 366 330 331 -1 368 367 331 332 -1 369 368 332 333 -1 370 369 333 334 -1 371 370 334 335 -1 372 371 335 336 -1 373 372 336 337 -1 374 373 337 338 -1 375 374 338 339 -1 376 375 339 340 -1 377 376 340 341 -1 378 377 341 342 -1 379 378 342 343 -1 380 379 343 344 -1 381 380 344 345 -1 382 381 345 346 -1 383 382 346 347 -1 384 383 347 348 -1 385 384 348 349 -1 386 385 349 350 -1 387 386 350 351 -1 388 387 351 352 -1 389 388 352 353 -1 390 389 353 354 -1 391 390 354 355 -1 392 391 355 356 -1 393 392 356 357 -1 394 393 357 358 -1 395 394 358 359 -1 360 395 359 324 -1 432 433 397 396 -1 433 434 398 397 -1 434 435 399 398 -1 435 436 400 399 -1 436 437 401 400 -1 437 438 402 401 -1 438 439 403 402 -1 439 440 404 403 -1 440 441 405 404 -1 441 442 406 405 -1 442 443 407 406 -1 443 444 408 407 -1 444 445 409 408 -1 445 446 410 409 -1 446 447 411 410 -1 447 448 412 411 -1 448 449 413 412 -1 449 450 414 413 -1 450 451 415 414 -1 451 452 416 415 -1 452 453 417 416 -1 453 454 418 417 -1 454 455 419 418 -1 455 456 420 419 -1 456 457 421 420 -1 457 458 422 421 -1 458 459 423 422 -1 459 460 424 423 -1 460 461 425 424 -1 461 462 426 425 -1 462 463 427 426 -1 463 464 428 427 -1 464 465 429 428 -1 465 466 430 429 -1 466 467 431 430 -1 467 432 396 431 -1 468 469 433 432 -1 469 470 434 433 -1 470 471 435 434 -1 471 472 436 435 -1 472 473 437 436 -1 473 474 438 437 -1 474 475 439 438 -1 475 476 440 439 -1 476 477 441 440 -1 477 478 442 441 -1 478 479 443 442 -1 479 480 444 443 -1 480 481 445 444 -1 481 482 446 445 -1 482 483 447 446 -1 483 484 448 447 -1 484 485 449 448 -1 485 486 450 449 -1 486 487 451 450 -1 487 488 452 451 -1 488 489 453 452 -1 489 490 454 453 -1 490 491 455 454 -1 491 492 456 455 -1 492 493 457 456 -1 493 494 458 457 -1 494 495 459 458 -1 495 496 460 459 -1 496 497 461 460 -1 497 498 462 461 -1 498 499 463 462 -1 499 500 464 463 -1 500 501 465 464 -1 501 502 466 465 -1 502 503 467 466 -1 503 468 432 467 -1 504 505 469 468 -1 505 506 470 469 -1 506 507 471 470 -1 507 508 472 471 -1 508 509 473 472 -1 509 510 474 473 -1 510 511 475 474 -1 511 512 476 475 -1 512 513 477 476 -1 513 514 478 477 -1 514 515 479 478 -1 515 516 480 479 -1 516 517 481 480 -1 517 518 482 481 -1 518 519 483 482 -1 519 520 484 483 -1 520 521 485 484 -1 521 522 486 485 -1 522 523 487 486 -1 523 524 488 487 -1 524 525 489 488 -1 525 526 490 489 -1 526 527 491 490 -1 527 528 492 491 -1 528 529 493 492 -1 529 530 494 493 -1 530 531 495 494 -1 531 532 496 495 -1 532 533 497 496 -1 533 534 498 497 -1 534 535 499 498 -1 535 536 500 499 -1 536 537 501 500 -1 537 538 502 501 -1 538 539 503 502 -1 539 504 468 503 -1 540 541 505 504 -1 541 542 506 505 -1 542 543 507 506 -1 543 544 508 507 -1 544 545 509 508 -1 545 546 510 509 -1 546 547 511 510 -1 547 548 512 511 -1 548 549 513 512 -1 549 550 514 513 -1 550 551 515 514 -1 551 552 516 515 -1 552 553 517 516 -1 553 554 518 517 -1 554 555 519 518 -1 555 556 520 519 -1 556 557 521 520 -1 557 558 522 521 -1 558 559 523 522 -1 559 560 524 523 -1 560 561 525 524 -1 561 562 526 525 -1 562 563 527 526 -1 563 564 528 527 -1 564 565 529 528 -1 565 566 530 529 -1 566 567 531 530 -1 567 568 532 531 -1 568 569 533 532 -1 569 570 534 533 -1 570 571 535 534 -1 571 572 536 535 -1 572 573 537 536 -1 573 574 538 537 -1 574 575 539 538 -1 575 540 504 539 -1 576 577 541 540 -1 577 578 542 541 -1 578 579 543 542 -1 579 580 544 543 -1 580 581 545 544 -1 581 582 546 545 -1 582 583 547 546 -1 583 584 548 547 -1 584 585 549 548 -1 585 586 550 549 -1 586 587 551 550 -1 587 588 552 551 -1 588 589 553 552 -1 589 590 554 553 -1 590 591 555 554 -1 591 592 556 555 -1 592 593 557 556 -1 593 594 558 557 -1 594 595 559 558 -1 595 596 560 559 -1 596 597 561 560 -1 597 598 562 561 -1 598 599 563 562 -1 599 600 564 563 -1 600 601 565 564 -1 601 602 566 565 -1 602 603 567 566 -1 603 604 568 567 -1 604 605 569 568 -1 605 606 570 569 -1 606 607 571 570 -1 607 608 572 571 -1 608 609 573 572 -1 609 610 574 573 -1 610 611 575 574 -1 611 576 540 575 -1 612 613 577 576 -1 613 614 578 577 -1 614 615 579 578 -1 615 616 580 579 -1 616 617 581 580 -1 617 618 582 581 -1 618 619 583 582 -1 619 620 584 583 -1 620 621 585 584 -1 621 622 586 585 -1 622 623 587 586 -1 623 624 588 587 -1 624 625 589 588 -1 625 626 590 589 -1 626 627 591 590 -1 627 628 592 591 -1 628 629 593 592 -1 629 630 594 593 -1 630 631 595 594 -1 631 632 596 595 -1 632 633 597 596 -1 633 634 598 597 -1 634 635 599 598 -1 635 636 600 599 -1 636 637 601 600 -1 637 638 602 601 -1 638 639 603 602 -1 639 640 604 603 -1 640 641 605 604 -1 641 642 606 605 -1 642 643 607 606 -1 643 644 608 607 -1 644 645 609 608 -1 645 646 610 609 -1 646 647 611 610 -1 647 612 576 611 -1 648 649 613 612 -1 649 650 614 613 -1 650 651 615 614 -1 651 652 616 615 -1 652 653 617 616 -1 653 654 618 617 -1 654 655 619 618 -1 655 656 620 619 -1 656 657 621 620 -1 657 658 622 621 -1 658 659 623 622 -1 659 660 624 623 -1 660 661 625 624 -1 661 662 626 625 -1 662 663 627 626 -1 663 664 628 627 -1 664 665 629 628 -1 665 666 630 629 -1 666 667 631 630 -1 667 668 632 631 -1 668 669 633 632 -1 669 670 634 633 -1 670 671 635 634 -1 671 672 636 635 -1 672 673 637 636 -1 673 674 638 637 -1 674 675 639 638 -1 675 676 640 639 -1 676 677 641 640 -1 677 678 642 641 -1 678 679 643 642 -1 679 680 644 643 -1 680 681 645 644 -1 681 682 646 645 -1 682 683 647 646 -1 683 648 612 647 -1 684 685 649 648 -1 685 686 650 649 -1 686 687 651 650 -1 687 688 652 651 -1 688 689 653 652 -1 689 690 654 653 -1 690 691 655 654 -1 691 692 656 655 -1 692 693 657 656 -1 693 694 658 657 -1 694 695 659 658 -1 695 696 660 659 -1 696 697 661 660 -1 697 698 662 661 -1 698 699 663 662 -1 699 700 664 663 -1 700 701 665 664 -1 701 702 666 665 -1 702 703 667 666 -1 703 704 668 667 -1 704 705 669 668 -1 705 706 670 669 -1 706 707 671 670 -1 707 708 672 671 -1 708 709 673 672 -1 709 710 674 673 -1 710 711 675 674 -1 711 712 676 675 -1 712 713 677 676 -1 713 714 678 677 -1 714 715 679 678 -1 715 716 680 679 -1 716 717 681 680 -1 717 718 682 681 -1 718 719 683 682 -1 719 684 648 683 -1 720 721 685 684 -1 721 722 686 685 -1 722 723 687 686 -1 723 724 688 687 -1 724 725 689 688 -1 725 726 690 689 -1 726 727 691 690 -1 727 728 692 691 -1 728 729 693 692 -1 729 730 694 693 -1 730 731 695 694 -1 731 732 696 695 -1 732 733 697 696 -1 733 734 698 697 -1 734 735 699 698 -1 735 736 700 699 -1 736 737 701 700 -1 737 738 702 701 -1 738 739 703 702 -1 739 740 704 703 -1 740 741 705 704 -1 741 742 706 705 -1 742 743 707 706 -1 743 744 708 707 -1 744 745 709 708 -1 745 746 710 709 -1 746 747 711 710 -1 747 748 712 711 -1 748 749 713 712 -1 749 750 714 713 -1 750 751 715 714 -1 751 752 716 715 -1 752 753 717 716 -1 753 754 718 717 -1 754 755 719 718 -1 755 720 684 719 -1 756 757 721 720 -1 757 758 722 721 -1 758 759 723 722 -1 759 760 724 723 -1 760 761 725 724 -1 761 762 726 725 -1 762 763 727 726 -1 763 764 728 727 -1 764 765 729 728 -1 765 766 730 729 -1 766 767 731 730 -1 767 768 732 731 -1 768 769 733 732 -1 769 770 734 733 -1 770 771 735 734 -1 771 772 736 735 -1 772 773 737 736 -1 773 774 738 737 -1 774 775 739 738 -1 775 776 740 739 -1 776 777 741 740 -1 777 778 742 741 -1 778 779 743 742 -1 779 780 744 743 -1 780 781 745 744 -1 781 782 746 745 -1 782 783 747 746 -1 783 784 748 747 -1 784 785 749 748 -1 785 786 750 749 -1 786 787 751 750 -1 787 788 752 751 -1 788 789 753 752 -1 789 790 754 753 -1 790 791 755 754 -1 791 756 720 755 -1 1 0 396 397 -1 2 1 397 398 -1 3 2 398 399 -1 4 3 399 400 -1 5 4 400 401 -1 6 5 401 402 -1 7 6 402 403 -1 8 7 403 404 -1 9 8 404 405 -1 10 9 405 406 -1 11 10 406 407 -1 12 11 407 408 -1 13 12 408 409 -1 14 13 409 410 -1 15 14 410 411 -1 16 15 411 412 -1 17 16 412 413 -1 18 17 413 414 -1 19 18 414 415 -1 20 19 415 416 -1 21 20 416 417 -1 22 21 417 418 -1 23 22 418 419 -1 24 23 419 420 -1 25 24 420 421 -1 26 25 421 422 -1 27 26 422 423 -1 28 27 423 424 -1 29 28 424 425 -1 30 29 425 426 -1 31 30 426 427 -1 32 31 427 428 -1 33 32 428 429 -1 34 33 429 430 -1 35 34 430 431 -1 0 35 431 396 -1'>
<Coordinate DEF='PointArray36x10point='0 0.5 0.5 0.08682408883346517 0.5 0.492403876506104 0.17101007166283436 0.5 0.4698463103929542 0.24999999999999997 0.5 0.43301270189221935 0.3213938048432696 0.5 0.383022221559489 0.383022221559489 0.5 0.3213938048432697 0.4330127018922193 0.5 0.25000000000000006 0.46984631039295416 0.5 0.1710100716628344 0.492403876506104 0.5 0.08682408883346521 0.5 0.5 3.061616997868383e-17 0.492403876506104 0.5 -0.08682408883346515 0.4698463103929542 0.5 -0.17101007166283425 0.43301270189221935 0.5 -0.2499999999999999 0.383022221559489 0.5 -0.3213938048432697 0.32139380484326974 0.5 -0.38302222155948895 0.25000000000000017 0.5 -0.43301270189221924 0.17101007166283444 0.5 -0.46984631039295416 0.08682408883346514 0.5 -0.492403876506104 6.123233995736766e-17 0.5 -0.5 -0.08682408883346501 0.5 -0.49240387650610407 -0.17101007166283433 0.5 -0.4698463103929542 -0.25000000000000006 0.5 -0.4330127018922193 -0.32139380484326946 0.5 -0.3830222215594892 -0.38302222155948895 0.5 -0.32139380484326974 -0.4330127018922192 0.5 -0.2500000000000002 -0.4698463103929542 0.5 -0.17101007166283427 -0.492403876506104 0.5 -0.08682408883346517 -0.5 0.5 -9.184850993605148e-17 -0.49240387650610407 0.5 0.08682408883346499 -0.46984631039295416 0.5 0.1710100716628345 -0.4330127018922195 0.5 0.24999999999999964 -0.38302222155948906 0.5 0.3213938048432696 -0.3213938048432698 0.5 0.3830222215594889 -0.24999999999999983 0.5 0.4330127018922194 -0.1710100716628343 0.5 0.4698463103929542 -0.0868240888334652 0.5 0.492403876506104 0 0.5782172325201155 0.4938441702975689 0.08575514022361004 0.5782172325201155 0.486341567688927 0.16890465390572046 0.5782172325201155 0.464061722646765 0.24692208514878441 0.5782172325201155 0.4276815969885432 0.31743691378320654 0.5782172325201155 0.3783065824231549 0.3783065824231549 0.5782172325201155 0.3174369137832066 0.42768159698854313 0.5782172325201155 0.2469220851487845 0.46406172264676493 0.5782172325201155 0.16890465390572051 0.486341567688927 0.5782172325201155 0.08575514022361008 0.4938441702975689 0.5782172325201155 3.0239234121624905e-17 0.486341567688927 0.5782172325201155 -0.08575514022361003 0.464061722646765 0.5782172325201155 -0.16890465390572035 0.4276815969885432 0.5782172325201155 -0.24692208514878433 0.3783065824231549 0.5782172325201155 -0.3174369137832066 0.31743691378320665 0.5782172325201155 -0.37830658242315485 0.2469220851487846 0.5782172325201155 -0.4276815969885431 0.16890465390572054 0.5782172325201155 -0.46406172264676493 0.08575514022361001 0.5782172325201155 -0.486341567688927 6.047846824324981e-17 0.5782172325201155 -0.4938441702975689 -0.08575514022360989 0.5782172325201155 -0.48634156768892706 -0.16890465390572043 0.5782172325201155 -0.464061722646765 -0.2469220851487845 0.5782172325201155 -0.42768159698854313 -0.3174369137832064 0.5782172325201155 -0.37830658242315507 -0.37830658242315485 0.5782172325201155 -0.31743691378320665 -0.427681596988543 0.5782172325201155 -0.24692208514878466 -0.464061722646765 0.5782172325201155 -0.16890465390572038 -0.486341567688927 0.5782172325201155 -0.08575514022361004 -0.4938441702975689 0.5782172325201155 -9.071770236487471e-17 -0.48634156768892706 0.5782172325201155 0.08575514022360986 -0.46406172264676493 0.5782172325201155 0.1689046539057206 -0.42768159698854336 0.5782172325201155 0.24692208514878408 -0.37830658242315496 0.5782172325201155 0.31743691378320654 -0.3174369137832067 0.5782172325201155 0.3783065824231548 -0.24692208514878428 0.5782172325201155 0.42768159698854324 -0.1689046539057204 0.5782172325201155 0.464061722646765 -0.08575514022361007 0.5782172325201155 0.486341567688927 0 0.6545084971874737 0.47552825814757677 0.08257461545645632 0.6545084971874737 0.4683039154001243 0.1626402430070398 0.6545084971874737 0.4468503951564544 0.23776412907378836 0.6545084971874737 0.411819551773166 0.30566367239308445 0.6545084971874737 0.3642757796999981 0.3642757796999981 0.6545084971874737 0.3056636723930845 0.4118195517731659 0.6545084971874737 0.23776412907378844 0.44685039515645436 0.6545084971874737 0.16264024300703986 0.4683039154001243 0.6545084971874737 0.08257461545645636 0.47552825814757677 0.6545084971874737 2.911770796222731e-17 0.4683039154001243 0.6545084971874737 -0.08257461545645631 0.4468503951564544 0.6545084971874737 -0.1626402430070397 0.411819551773166 0.6545084971874737 -0.23776412907378827 0.3642757796999981 0.6545084971874737 -0.3056636723930845 0.30566367239308456 0.6545084971874737 -0.364275779699998 0.23776412907378855 0.6545084971874737 -0.41181955177316587 0.1626402430070399 0.6545084971874737 -0.44685039515645436 0.0825746154564563 0.6545084971874737 -0.4683039154001243 5.823541592445462e-17 0.6545084971874737 -0.47552825814757677 -0.08257461545645618 0.6545084971874737 -0.46830391540012434 -0.16264024300703978 0.6545084971874737 -0.4468503951564544 -0.23776412907378844 0.6545084971874737 -0.4118195517731659 -0.3056636723930843 0.6545084971874737 -0.36427577969999825 -0.364275779699998 0.6545084971874737 -0.30566367239308456 -0.4118195517731658 0.6545084971874737 -0.2377641290737886 -0.4468503951564544 0.6545084971874737 -0.16264024300703972 -0.4683039154001243 0.6545084971874737 -0.08257461545645632 -0.47552825814757677 0.6545084971874737 -8.735312388668192e-17 -0.46830391540012434 0.6545084971874737 0.08257461545645615 -0.44685039515645436 0.6545084971874737 0.16264024300703994 -0.41181955177316615 0.6545084971874737 0.23776412907378805 -0.36427577969999814 0.6545084971874737 0.30566367239308445 -0.3056636723930846 0.6545084971874737 0.36427577969999797 -0.23776412907378822 0.6545084971874737 0.41181955177316604 -0.16264024300703975 0.6545084971874737 0.4468503951564544 -0.08257461545645635 0.6545084971874737 0.4683039154001243 0 0.7269952498697734 0.44550326209418395 0.07736082960732789 0.7269952498697734 0.4387350665025821 0.15237108955350576 0.7269952498697734 0.41863612792595517 0.22275163104709195 0.7269952498697734 0.3858171424424003 0.28636397694907634 0.7269952498697734 0.34127529831862724 0.34127529831862724 0.7269952498697734 0.28636397694907634 0.38581714244240023 0.7269952498697734 0.22275163104709203 0.4186361279259551 0.7269952498697734 0.15237108955350578 0.4387350665025821 0.7269952498697734 0.07736082960732792 0.44550326209418395 0.7269952498697734 2.7279207196667338e-17 0.4387350665025821 0.7269952498697734 -0.07736082960732787 0.41863612792595517 0.7269952498697734 -0.15237108955350565 0.3858171424424003 0.7269952498697734 -0.22275163104709186 0.34127529831862724 0.7269952498697734 -0.28636397694907634 0.2863639769490764 0.7269952498697734 -0.3412752983186272 0.2227516310470921 0.7269952498697734 -0.3858171424424002 0.1523710895535058 0.7269952498697734 -0.4186361279259551 0.07736082960732786 0.7269952498697734 -0.4387350665025821 5.4558414393334676e-17 0.7269952498697734 -0.44550326209418395 -0.07736082960732775 0.7269952498697734 -0.43873506650258215 -0.15237108955350573 0.7269952498697734 -0.41863612792595517 -0.22275163104709203 0.7269952498697734 -0.38581714244240023 -0.28636397694907617 0.7269952498697734 -0.3412752983186274 -0.3412752983186272 0.7269952498697734 -0.2863639769490764 -0.3858171424424001 0.7269952498697734 -0.22275163104709217 -0.41863612792595517 0.7269952498697734 -0.15237108955350567 -0.4387350665025821 0.7269952498697734 -0.07736082960732789 -0.44550326209418395 0.7269952498697734 -8.183762159000201e-17 -0.43873506650258215 0.7269952498697734 0.07736082960732772 -0.4186361279259551 0.7269952498697734 0.15237108955350587 -0.38581714244240045 0.7269952498697734 0.22275163104709164 -0.3412752983186273 0.7269952498697734 0.28636397694907634 -0.28636397694907645 0.7269952498697734 0.34127529831862713 -0.22275163104709184 0.7269952498697734 0.38581714244240034 -0.1523710895535057 0.7269952498697734 0.41863612792595517 -0.0773608296073279 0.7269952498697734 0.4387350665025821 0 0.7938926261462366 0.4045084971874737 0.07024216338739342 0.7938926261462366 0.3983631041895411 0.13835005418451063 0.7938926261462366 0.3801136498522665 0.20225424859373684 0.7938926261462366 0.3503146346110184 0.26001305000503044 0.7938926261462366 0.309871486464873 0.309871486464873 0.7938926261462366 0.26001305000503044 0.35031463461101836 0.7938926261462366 0.20225424859373692 0.3801136498522664 0.7938926261462366 0.13835005418451066 0.3983631041895411 0.7938926261462366 0.07024216338739346 0.4045084971874737 0.7938926261462366 2.476900181542729e-17 0.3983631041895411 0.7938926261462366 -0.07024216338739342 0.3801136498522665 0.7938926261462366 -0.13835005418451055 0.3503146346110184 0.7938926261462366 -0.20225424859373678 0.309871486464873 0.7938926261462366 -0.26001305000503044 0.2600130500050305 0.7938926261462366 -0.30987148646487295 0.202254248593737 0.7938926261462366 -0.3503146346110183 0.13835005418451068 0.7938926261462366 -0.3801136498522664 0.0702421633873934 0.7938926261462366 -0.3983631041895411 4.953800363085458e-17 0.7938926261462366 -0.4045084971874737 -0.07024216338739331 0.7938926261462366 -0.39836310418954113 -0.1383500541845106 0.7938926261462366 -0.3801136498522665 -0.20225424859373692 0.7938926261462366 -0.35031463461101836 -0.2600130500050303 0.7938926261462366 -0.3098714864648731 -0.30987148646487295 0.7938926261462366 -0.2600130500050305 -0.3503146346110183 0.7938926261462366 -0.20225424859373703 -0.3801136498522665 0.7938926261462366 -0.13835005418451055 -0.3983631041895411 0.7938926261462366 -0.07024216338739342 -0.4045084971874737 0.7938926261462366 -7.430700544628186e-17 -0.39836310418954113 0.7938926261462366 0.07024216338739328 -0.3801136498522664 0.7938926261462366 0.13835005418451074 -0.3503146346110186 0.7938926261462366 0.20225424859373656 -0.30987148646487306 0.7938926261462366 0.26001305000503044 -0.26001305000503055 0.7938926261462366 0.3098714864648729 -0.20225424859373672 0.7938926261462366 0.35031463461101847 -0.13835005418451057 0.7938926261462366 0.3801136498522665 -0.07024216338739345 0.7938926261462366 0.3983631041895411 0 0.8535533905932737 0.3535533905932738 0.061393901984486424 0.8535533905932737 0.3481821201600095 0.12092238132398764 0.8535533905932737 0.3322315121943374 0.17677669529663687 0.8535533905932737 0.3061862178478973 0.22725973883602182 0.8535533905932737 0.2708376102098509 0.2708376102098509 0.8535533905932737 0.22725973883602188 0.3061862178478973 0.8535533905932737 0.17677669529663692 0.33223151219433733 0.8535533905932737 0.12092238132398767 0.3481821201600095 0.8535533905932737 0.06139390198448645 0.3535533905932738 0.8535533905932737 2.1648901405887335e-17 0.3481821201600095 0.8535533905932737 -0.06139390198448641 0.3322315121943374 0.8535533905932737 -0.12092238132398755 0.3061862178478973 0.8535533905932737 -0.1767766952966368 0.2708376102098509 0.8535533905932737 -0.22725973883602188 0.2272597388360219 0.8535533905932737 -0.2708376102098509 0.176776695296637 0.8535533905932737 -0.30618621784789724 0.1209223813239877 0.8535533905932737 -0.33223151219433733 0.0613939019844864 0.8535533905932737 -0.3481821201600095 4.329780281177467e-17 0.8535533905932737 -0.3535533905932738 -0.06139390198448631 0.8535533905932737 -0.34818212016000955 -0.12092238132398761 0.8535533905932737 -0.3322315121943374 -0.17677669529663692 0.8535533905932737 -0.3061862178478973 -0.2272597388360217 0.8535533905932737 -0.27083761020985103 -0.2708376102098509 0.8535533905932737 -0.2272597388360219 -0.3061862178478972 0.8535533905932737 -0.17677669529663706 -0.3322315121943374 0.8535533905932737 -0.12092238132398757 -0.3481821201600095 0.8535533905932737 -0.061393901984486424 -0.3535533905932738 0.8535533905932737 -6.4946704217662e-17 -0.34818212016000955 0.8535533905932737 0.06139390198448629 -0.33223151219433733 0.8535533905932737 0.12092238132398773 -0.3061862178478974 0.8535533905932737 0.17677669529663664 -0.270837610209851 0.8535533905932737 0.22725973883602182 -0.22725973883602194 0.8535533905932737 0.27083761020985087 -0.17677669529663678 0.8535533905932737 0.30618621784789735 -0.1209223813239876 0.8535533905932737 0.3322315121943374 -0.06139390198448644 0.8535533905932737 0.3481821201600095 0 0.9045084971874737 0.29389262614623657 0.051033918960042425 0.9045084971874737 0.2894277367819321 0.100517198116893 0.9045084971874737 0.27616873209301024 0.14694631307311826 0.9045084971874737 0.2545184802275636 0.18891053866503912 0.9045084971874737 0.2251348131329678 0.2251348131329678 0.9045084971874737 0.18891053866503915 0.25451848022756357 0.9045084971874737 0.1469463130731183 0.2761687320930102 0.9045084971874737 0.10051719811689304 0.2894277367819321 0.9045084971874737 0.051033918960042446 0.29389262614623657 0.9045084971874737 1.7995733195149916e-17 0.2894277367819321 0.9045084971874737 -0.05103391896004241 0.27616873209301024 0.9045084971874737 -0.10051719811689294 0.2545184802275636 0.9045084971874737 -0.14694631307311823 0.2251348131329678 0.9045084971874737 -0.18891053866503915 0.18891053866503918 0.9045084971874737 -0.22513481313296776 0.1469463130731184 0.9045084971874737 -0.25451848022756357 0.10051719811689305 0.9045084971874737 -0.2761687320930102 0.051033918960042404 0.9045084971874737 -0.2894277367819321 3.599146639029983e-17 0.9045084971874737 -0.29389262614623657 -0.051033918960042335 0.9045084971874737 -0.2894277367819322 -0.10051719811689298 0.9045084971874737 -0.27616873209301024 -0.1469463130731183 0.9045084971874737 -0.25451848022756357 -0.188910538665039 0.9045084971874737 -0.22513481313296788 -0.22513481313296776 0.9045084971874737 -0.18891053866503918 -0.2545184802275635 0.9045084971874737 -0.14694631307311842 -0.27616873209301024 0.9045084971874737 -0.10051719811689296 -0.2894277367819321 0.9045084971874737 -0.051033918960042425 -0.29389262614623657 0.9045084971874737 -5.398719958544975e-17 -0.2894277367819322 0.9045084971874737 0.051033918960042314 -0.2761687320930102 0.9045084971874737 0.10051719811689308 -0.25451848022756374 0.9045084971874737 0.14694631307311806 -0.22513481313296782 0.9045084971874737 0.18891053866503912 -0.1889105386650392 0.9045084971874737 0.22513481313296774 -0.14694631307311817 0.9045084971874737 0.2545184802275636 -0.10051719811689297 0.9045084971874737 0.27616873209301024 -0.05103391896004244 0.9045084971874737 0.2894277367819321 0 0.9455032620941839 0.22699524986977343 0.03941731147893566 0.9455032620941839 0.2235466819686963 0.07763694789470589 0.9455032620941839 0.21330576125607953 0.1134976249348867 0.9455032620941839 0.1965836529256201 0.14590973407399038 0.9455032620941839 0.17388844977714385 0.17388844977714385 0.9455032620941839 0.1459097340739904 0.19658365292562008 0.9455032620941839 0.11349762493488674 0.2133057612560795 0.9455032620941839 0.07763694789470592 0.2235466819686963 0.9455032620941839 0.03941731147893568 0.22699524986977343 0.9455032620941839 1.3899450308733582e-17 0.2235466819686963 0.9455032620941839 -0.03941731147893565 0.21330576125607953 0.9455032620941839 -0.07763694789470584 0.1965836529256201 0.9455032620941839 -0.11349762493488666 0.17388844977714385 0.9455032620941839 -0.1459097340739904 0.1459097340739904 0.9455032620941839 -0.17388844977714382 0.11349762493488678 0.9455032620941839 -0.19658365292562005 0.07763694789470593 0.9455032620941839 -0.2133057612560795 0.039417311478935645 0.9455032620941839 -0.2235466819686963 2.7798900617467165e-17 0.9455032620941839 -0.22699524986977343 -0.03941731147893559 0.9455032620941839 -0.22354668196869631 -0.07763694789470588 0.9455032620941839 -0.21330576125607953 -0.11349762493488674 0.9455032620941839 -0.19658365292562008 -0.1459097340739903 0.9455032620941839 -0.17388844977714393 -0.17388844977714382 0.9455032620941839 -0.1459097340739904 -0.19658365292562002 0.9455032620941839 -0.11349762493488681 -0.21330576125607953 0.9455032620941839 -0.07763694789470585 -0.2235466819686963 0.9455032620941839 -0.03941731147893566 -0.22699524986977343 0.9455032620941839 -4.169835092620075e-17 -0.22354668196869631 0.9455032620941839 0.03941731147893558 -0.2133057612560795 0.9455032620941839 0.07763694789470596 -0.19658365292562016 0.9455032620941839 0.11349762493488655 -0.17388844977714388 0.9455032620941839 0.14590973407399038 -0.14590973407399044 0.9455032620941839 0.1738884497771438 -0.11349762493488665 0.9455032620941839 0.1965836529256201 -0.07763694789470586 0.9455032620941839 0.21330576125607953 -0.03941731147893567 0.9455032620941839 0.2235466819686963 0 0.9755282581475768 0.15450849718747373 0.026830118970660843 0.9755282581475768 0.15216116593648907 0.052845018353093444 0.9755282581475768 0.14519049465578934 0.07725424859373685 0.9755282581475768 0.13380828366490874 0.0993161475833956 0.9755282581475768 0.11836037568512849 0.11836037568512849 0.9755282581475768 0.09931614758339563 0.13380828366490874 0.9755282581475768 0.07725424859373688 0.14519049465578934 0.9755282581475768 0.052845018353093465 0.15216116593648907 0.9755282581475768 0.026830118970660857 0.15450849718747373 0.9755282581475768 9.460916826085376e-18 0.15216116593648907 0.9755282581475768 -0.02683011897066084 0.14519049465578934 0.9755282581475768 -0.05284501835309341 0.13380828366490874 0.9755282581475768 -0.07725424859373684 0.11836037568512849 0.9755282581475768 -0.09931614758339563 0.09931614758339564 0.9755282581475768 -0.11836037568512847 0.07725424859373692 0.9755282581475768 -0.1338082836649087 0.05284501835309347 0.9755282581475768 -0.14519049465578934 0.026830118970660833 0.9755282581475768 -0.15216116593648907 1.8921833652170753e-17 0.9755282581475768 -0.15450849718747373 -0.026830118970660795 0.9755282581475768 -0.15216116593648907 -0.05284501835309344 0.9755282581475768 -0.14519049465578934 -0.07725424859373688 0.9755282581475768 -0.13380828366490874 -0.09931614758339556 0.9755282581475768 -0.11836037568512854 -0.11836037568512847 0.9755282581475768 -0.09931614758339564 -0.13380828366490868 0.9755282581475768 -0.07725424859373693 -0.14519049465578934 0.9755282581475768 -0.052845018353093416 -0.15216116593648907 0.9755282581475768 -0.026830118970660843 -0.15450849718747373 0.9755282581475768 -2.838275047825613e-17 -0.15216116593648907 0.9755282581475768 0.026830118970660788 -0.14519049465578934 0.9755282581475768 0.052845018353093486 -0.1338082836649088 0.9755282581475768 0.07725424859373675 -0.11836037568512851 0.9755282581475768 0.0993161475833956 -0.09931614758339566 0.9755282581475768 0.11836037568512846 -0.07725424859373681 0.9755282581475768 0.13380828366490877 -0.05284501835309343 0.9755282581475768 0.14519049465578934 -0.02683011897066085 0.9755282581475768 0.15216116593648907 0 0.9938441702975689 0.07821723252011546 0.013582279889268611 0.9938441702975689 0.07702893700496831 0.026751869077067045 0.9938441702975689 0.07350015621744808 0.039108616260057724 0.9938441702975689 0.06773811037613432 0.050277067927901264 0.9938441702975689 0.059917876328179465 0.059917876328179465 0.9938441702975689 0.05027706792790127 0.06773811037613431 0.9938441702975689 0.03910861626005774 0.07350015621744807 0.9938441702975689 0.026751869077067055 0.07702893700496831 0.9938441702975689 0.013582279889268618 0.07821723252011546 0.9938441702975689 4.789424172196183e-18 0.07702893700496831 0.9938441702975689 -0.01358227988926861 0.07350015621744808 0.9938441702975689 -0.026751869077067027 0.06773811037613432 0.9938441702975689 -0.03910861626005771 0.059917876328179465 0.9938441702975689 -0.05027706792790127 0.05027706792790128 0.9938441702975689 -0.05991787632817946 0.03910861626005776 0.9938441702975689 -0.06773811037613431 0.02675186907706706 0.9938441702975689 -0.07350015621744807 0.013582279889268606 0.9938441702975689 -0.07702893700496831 9.578848344392366e-18 0.9938441702975689 -0.07821723252011546 -0.013582279889268587 0.9938441702975689 -0.07702893700496832 -0.02675186907706704 0.9938441702975689 -0.07350015621744808 -0.03910861626005774 0.9938441702975689 -0.06773811037613431 -0.05027706792790124 0.9938441702975689 -0.05991787632817949 -0.05991787632817946 0.9938441702975689 -0.05027706792790128 -0.0677381103761343 0.9938441702975689 -0.039108616260057766 -0.07350015621744808 0.9938441702975689 -0.026751869077067034 -0.07702893700496831 0.9938441702975689 -0.013582279889268611 -0.07821723252011546 0.9938441702975689 -1.436827251658855e-17 -0.07702893700496832 0.9938441702975689 0.013582279889268582 -0.07350015621744807 0.9938441702975689 0.02675186907706707 -0.06773811037613435 0.9938441702975689 0.039108616260057676 -0.05991787632817948 0.9938441702975689 0.050277067927901264 -0.050277067927901285 0.9938441702975689 0.05991787632817945 -0.0391086162600577 0.9938441702975689 0.06773811037613434 -0.026751869077067038 0.9938441702975689 0.07350015621744808 -0.013582279889268615 0.9938441702975689 0.07702893700496831 0 1 3.061616997868383e-17 5.316442123939428e-18 1 3.015104156254744e-17 1.047134684419248e-17 1 2.8769789005696257e-17 1.5308084989341912e-17 1 2.6514380968122673e-17 1.9679694718354963e-17 1 2.3453346881756827e-17 2.3453346881756827e-17 1 1.9679694718354966e-17 2.651438096812267e-17 1 1.5308084989341918e-17 2.8769789005696257e-17 1 1.0471346844192482e-17 3.015104156254744e-17 1 5.3164421239394306e-18 3.061616997868383e-17 1 1.874699728327322e-33 3.015104156254744e-17 1 -5.3164421239394275e-18 2.8769789005696257e-17 1 -1.0471346844192472e-17 2.6514380968122673e-17 1 -1.530808498934191e-17 2.3453346881756827e-17 1 -1.9679694718354966e-17 1.967969471835497e-17 1 -2.3453346881756824e-17 1.5308084989341924e-17 1 -2.6514380968122667e-17 1.0471346844192484e-17 1 -2.8769789005696257e-17 5.316442123939427e-18 1 -3.015104156254744e-17 3.749399456654644e-33 1 -3.061616997868383e-17 -5.316442123939419e-18 1 -3.0151041562547447e-17 -1.0471346844192478e-17 1 -2.8769789005696257e-17 -1.5308084989341918e-17 1 -2.651438096812267e-17 -1.9679694718354953e-17 1 -2.345334688175684e-17 -2.3453346881756824e-17 1 -1.967969471835497e-17 -2.6514380968122664e-17 1 -1.5308084989341927e-17 -2.8769789005696257e-17 1 -1.0471346844192475e-17 -3.015104156254744e-17 1 -5.316442123939428e-18 -3.061616997868383e-17 1 -5.624099184981966e-33 -3.0151041562547447e-17 1 5.3164421239394175e-18 -2.8769789005696257e-17 1 1.0471346844192487e-17 -2.6514380968122685e-17 1 1.5308084989341894e-17 -2.345334688175683e-17 1 1.9679694718354963e-17 -1.9679694718354972e-17 1 2.345334688175682e-17 -1.5308084989341906e-17 1 2.651438096812268e-17 -1.0471346844192476e-17 1 2.8769789005696257e-17 -5.31644212393943e-18 1 3.015104156254744e-17 0 -0.5 0.5 0.08682408883346517 -0.5 0.492403876506104 0.17101007166283436 -0.5 0.4698463103929542 0.24999999999999997 -0.5 0.43301270189221935 0.3213938048432696 -0.5 0.383022221559489 0.383022221559489 -0.5 0.3213938048432697 0.4330127018922193 -0.5 0.25000000000000006 0.46984631039295416 -0.5 0.1710100716628344 0.492403876506104 -0.5 0.08682408883346521 0.5 -0.5 3.061616997868383e-17 0.492403876506104 -0.5 -0.08682408883346515 0.4698463103929542 -0.5 -0.17101007166283425 0.43301270189221935 -0.5 -0.2499999999999999 0.383022221559489 -0.5 -0.3213938048432697 0.32139380484326974 -0.5 -0.38302222155948895 0.25000000000000017 -0.5 -0.43301270189221924 0.17101007166283444 -0.5 -0.46984631039295416 0.08682408883346514 -0.5 -0.492403876506104 6.123233995736766e-17 -0.5 -0.5 -0.08682408883346501 -0.5 -0.49240387650610407 -0.17101007166283433 -0.5 -0.4698463103929542 -0.25000000000000006 -0.5 -0.4330127018922193 -0.32139380484326946 -0.5 -0.3830222215594892 -0.38302222155948895 -0.5 -0.32139380484326974 -0.4330127018922192 -0.5 -0.2500000000000002 -0.4698463103929542 -0.5 -0.17101007166283427 -0.492403876506104 -0.5 -0.08682408883346517 -0.5 -0.5 -9.184850993605148e-17 -0.49240387650610407 -0.5 0.08682408883346499 -0.46984631039295416 -0.5 0.1710100716628345 -0.4330127018922195 -0.5 0.24999999999999964 -0.38302222155948906 -0.5 0.3213938048432696 -0.3213938048432698 -0.5 0.3830222215594889 -0.24999999999999983 -0.5 0.4330127018922194 -0.1710100716628343 -0.5 0.4698463103929542 -0.0868240888334652 -0.5 0.492403876506104 0 -0.5782172325201155 0.4938441702975689 0.08575514022361004 -0.5782172325201155 0.486341567688927 0.16890465390572046 -0.5782172325201155 0.464061722646765 0.24692208514878441 -0.5782172325201155 0.4276815969885432 0.31743691378320654 -0.5782172325201155 0.3783065824231549 0.3783065824231549 -0.5782172325201155 0.3174369137832066 0.42768159698854313 -0.5782172325201155 0.2469220851487845 0.46406172264676493 -0.5782172325201155 0.16890465390572051 0.486341567688927 -0.5782172325201155 0.08575514022361008 0.4938441702975689 -0.5782172325201155 3.0239234121624905e-17 0.486341567688927 -0.5782172325201155 -0.08575514022361003 0.464061722646765 -0.5782172325201155 -0.16890465390572035 0.4276815969885432 -0.5782172325201155 -0.24692208514878433 0.3783065824231549 -0.5782172325201155 -0.3174369137832066 0.31743691378320665 -0.5782172325201155 -0.37830658242315485 0.2469220851487846 -0.5782172325201155 -0.4276815969885431 0.16890465390572054 -0.5782172325201155 -0.46406172264676493 0.08575514022361001 -0.5782172325201155 -0.486341567688927 6.047846824324981e-17 -0.5782172325201155 -0.4938441702975689 -0.08575514022360989 -0.5782172325201155 -0.48634156768892706 -0.16890465390572043 -0.5782172325201155 -0.464061722646765 -0.2469220851487845 -0.5782172325201155 -0.42768159698854313 -0.3174369137832064 -0.5782172325201155 -0.37830658242315507 -0.37830658242315485 -0.5782172325201155 -0.31743691378320665 -0.427681596988543 -0.5782172325201155 -0.24692208514878466 -0.464061722646765 -0.5782172325201155 -0.16890465390572038 -0.486341567688927 -0.5782172325201155 -0.08575514022361004 -0.4938441702975689 -0.5782172325201155 -9.071770236487471e-17 -0.48634156768892706 -0.5782172325201155 0.08575514022360986 -0.46406172264676493 -0.5782172325201155 0.1689046539057206 -0.42768159698854336 -0.5782172325201155 0.24692208514878408 -0.37830658242315496 -0.5782172325201155 0.31743691378320654 -0.3174369137832067 -0.5782172325201155 0.3783065824231548 -0.24692208514878428 -0.5782172325201155 0.42768159698854324 -0.1689046539057204 -0.5782172325201155 0.464061722646765 -0.08575514022361007 -0.5782172325201155 0.486341567688927 0 -0.6545084971874737 0.47552825814757677 0.08257461545645632 -0.6545084971874737 0.4683039154001243 0.1626402430070398 -0.6545084971874737 0.4468503951564544 0.23776412907378836 -0.6545084971874737 0.411819551773166 0.30566367239308445 -0.6545084971874737 0.3642757796999981 0.3642757796999981 -0.6545084971874737 0.3056636723930845 0.4118195517731659 -0.6545084971874737 0.23776412907378844 0.44685039515645436 -0.6545084971874737 0.16264024300703986 0.4683039154001243 -0.6545084971874737 0.08257461545645636 0.47552825814757677 -0.6545084971874737 2.911770796222731e-17 0.4683039154001243 -0.6545084971874737 -0.08257461545645631 0.4468503951564544 -0.6545084971874737 -0.1626402430070397 0.411819551773166 -0.6545084971874737 -0.23776412907378827 0.3642757796999981 -0.6545084971874737 -0.3056636723930845 0.30566367239308456 -0.6545084971874737 -0.364275779699998 0.23776412907378855 -0.6545084971874737 -0.41181955177316587 0.1626402430070399 -0.6545084971874737 -0.44685039515645436 0.0825746154564563 -0.6545084971874737 -0.4683039154001243 5.823541592445462e-17 -0.6545084971874737 -0.47552825814757677 -0.08257461545645618 -0.6545084971874737 -0.46830391540012434 -0.16264024300703978 -0.6545084971874737 -0.4468503951564544 -0.23776412907378844 -0.6545084971874737 -0.4118195517731659 -0.3056636723930843 -0.6545084971874737 -0.36427577969999825 -0.364275779699998 -0.6545084971874737 -0.30566367239308456 -0.4118195517731658 -0.6545084971874737 -0.2377641290737886 -0.4468503951564544 -0.6545084971874737 -0.16264024300703972 -0.4683039154001243 -0.6545084971874737 -0.08257461545645632 -0.47552825814757677 -0.6545084971874737 -8.735312388668192e-17 -0.46830391540012434 -0.6545084971874737 0.08257461545645615 -0.44685039515645436 -0.6545084971874737 0.16264024300703994 -0.41181955177316615 -0.6545084971874737 0.23776412907378805 -0.36427577969999814 -0.6545084971874737 0.30566367239308445 -0.3056636723930846 -0.6545084971874737 0.36427577969999797 -0.23776412907378822 -0.6545084971874737 0.41181955177316604 -0.16264024300703975 -0.6545084971874737 0.4468503951564544 -0.08257461545645635 -0.6545084971874737 0.4683039154001243 0 -0.7269952498697734 0.44550326209418395 0.07736082960732789 -0.7269952498697734 0.4387350665025821 0.15237108955350576 -0.7269952498697734 0.41863612792595517 0.22275163104709195 -0.7269952498697734 0.3858171424424003 0.28636397694907634 -0.7269952498697734 0.34127529831862724 0.34127529831862724 -0.7269952498697734 0.28636397694907634 0.38581714244240023 -0.7269952498697734 0.22275163104709203 0.4186361279259551 -0.7269952498697734 0.15237108955350578 0.4387350665025821 -0.7269952498697734 0.07736082960732792 0.44550326209418395 -0.7269952498697734 2.7279207196667338e-17 0.4387350665025821 -0.7269952498697734 -0.07736082960732787 0.41863612792595517 -0.7269952498697734 -0.15237108955350565 0.3858171424424003 -0.7269952498697734 -0.22275163104709186 0.34127529831862724 -0.7269952498697734 -0.28636397694907634 0.2863639769490764 -0.7269952498697734 -0.3412752983186272 0.2227516310470921 -0.7269952498697734 -0.3858171424424002 0.1523710895535058 -0.7269952498697734 -0.4186361279259551 0.07736082960732786 -0.7269952498697734 -0.4387350665025821 5.4558414393334676e-17 -0.7269952498697734 -0.44550326209418395 -0.07736082960732775 -0.7269952498697734 -0.43873506650258215 -0.15237108955350573 -0.7269952498697734 -0.41863612792595517 -0.22275163104709203 -0.7269952498697734 -0.38581714244240023 -0.28636397694907617 -0.7269952498697734 -0.3412752983186274 -0.3412752983186272 -0.7269952498697734 -0.2863639769490764 -0.3858171424424001 -0.7269952498697734 -0.22275163104709217 -0.41863612792595517 -0.7269952498697734 -0.15237108955350567 -0.4387350665025821 -0.7269952498697734 -0.07736082960732789 -0.44550326209418395 -0.7269952498697734 -8.183762159000201e-17 -0.43873506650258215 -0.7269952498697734 0.07736082960732772 -0.4186361279259551 -0.7269952498697734 0.15237108955350587 -0.38581714244240045 -0.7269952498697734 0.22275163104709164 -0.3412752983186273 -0.7269952498697734 0.28636397694907634 -0.28636397694907645 -0.7269952498697734 0.34127529831862713 -0.22275163104709184 -0.7269952498697734 0.38581714244240034 -0.1523710895535057 -0.7269952498697734 0.41863612792595517 -0.0773608296073279 -0.7269952498697734 0.4387350665025821 0 -0.7938926261462366 0.4045084971874737 0.07024216338739342 -0.7938926261462366 0.3983631041895411 0.13835005418451063 -0.7938926261462366 0.3801136498522665 0.20225424859373684 -0.7938926261462366 0.3503146346110184 0.26001305000503044 -0.7938926261462366 0.309871486464873 0.309871486464873 -0.7938926261462366 0.26001305000503044 0.35031463461101836 -0.7938926261462366 0.20225424859373692 0.3801136498522664 -0.7938926261462366 0.13835005418451066 0.3983631041895411 -0.7938926261462366 0.07024216338739346 0.4045084971874737 -0.7938926261462366 2.476900181542729e-17 0.3983631041895411 -0.7938926261462366 -0.07024216338739342 0.3801136498522665 -0.7938926261462366 -0.13835005418451055 0.3503146346110184 -0.7938926261462366 -0.20225424859373678 0.309871486464873 -0.7938926261462366 -0.26001305000503044 0.2600130500050305 -0.7938926261462366 -0.30987148646487295 0.202254248593737 -0.7938926261462366 -0.3503146346110183 0.13835005418451068 -0.7938926261462366 -0.3801136498522664 0.0702421633873934 -0.7938926261462366 -0.3983631041895411 4.953800363085458e-17 -0.7938926261462366 -0.4045084971874737 -0.07024216338739331 -0.7938926261462366 -0.39836310418954113 -0.1383500541845106 -0.7938926261462366 -0.3801136498522665 -0.20225424859373692 -0.7938926261462366 -0.35031463461101836 -0.2600130500050303 -0.7938926261462366 -0.3098714864648731 -0.30987148646487295 -0.7938926261462366 -0.2600130500050305 -0.3503146346110183 -0.7938926261462366 -0.20225424859373703 -0.3801136498522665 -0.7938926261462366 -0.13835005418451055 -0.3983631041895411 -0.7938926261462366 -0.07024216338739342 -0.4045084971874737 -0.7938926261462366 -7.430700544628186e-17 -0.39836310418954113 -0.7938926261462366 0.07024216338739328 -0.3801136498522664 -0.7938926261462366 0.13835005418451074 -0.3503146346110186 -0.7938926261462366 0.20225424859373656 -0.30987148646487306 -0.7938926261462366 0.26001305000503044 -0.26001305000503055 -0.7938926261462366 0.3098714864648729 -0.20225424859373672 -0.7938926261462366 0.35031463461101847 -0.13835005418451057 -0.7938926261462366 0.3801136498522665 -0.07024216338739345 -0.7938926261462366 0.3983631041895411 0 -0.8535533905932737 0.3535533905932738 0.061393901984486424 -0.8535533905932737 0.3481821201600095 0.12092238132398764 -0.8535533905932737 0.3322315121943374 0.17677669529663687 -0.8535533905932737 0.3061862178478973 0.22725973883602182 -0.8535533905932737 0.2708376102098509 0.2708376102098509 -0.8535533905932737 0.22725973883602188 0.3061862178478973 -0.8535533905932737 0.17677669529663692 0.33223151219433733 -0.8535533905932737 0.12092238132398767 0.3481821201600095 -0.8535533905932737 0.06139390198448645 0.3535533905932738 -0.8535533905932737 2.1648901405887335e-17 0.3481821201600095 -0.8535533905932737 -0.06139390198448641 0.3322315121943374 -0.8535533905932737 -0.12092238132398755 0.3061862178478973 -0.8535533905932737 -0.1767766952966368 0.2708376102098509 -0.8535533905932737 -0.22725973883602188 0.2272597388360219 -0.8535533905932737 -0.2708376102098509 0.176776695296637 -0.8535533905932737 -0.30618621784789724 0.1209223813239877 -0.8535533905932737 -0.33223151219433733 0.0613939019844864 -0.8535533905932737 -0.3481821201600095 4.329780281177467e-17 -0.8535533905932737 -0.3535533905932738 -0.06139390198448631 -0.8535533905932737 -0.34818212016000955 -0.12092238132398761 -0.8535533905932737 -0.3322315121943374 -0.17677669529663692 -0.8535533905932737 -0.3061862178478973 -0.2272597388360217 -0.8535533905932737 -0.27083761020985103 -0.2708376102098509 -0.8535533905932737 -0.2272597388360219 -0.3061862178478972 -0.8535533905932737 -0.17677669529663706 -0.3322315121943374 -0.8535533905932737 -0.12092238132398757 -0.3481821201600095 -0.8535533905932737 -0.061393901984486424 -0.3535533905932738 -0.8535533905932737 -6.4946704217662e-17 -0.34818212016000955 -0.8535533905932737 0.06139390198448629 -0.33223151219433733 -0.8535533905932737 0.12092238132398773 -0.3061862178478974 -0.8535533905932737 0.17677669529663664 -0.270837610209851 -0.8535533905932737 0.22725973883602182 -0.22725973883602194 -0.8535533905932737 0.27083761020985087 -0.17677669529663678 -0.8535533905932737 0.30618621784789735 -0.1209223813239876 -0.8535533905932737 0.3322315121943374 -0.06139390198448644 -0.8535533905932737 0.3481821201600095 0 -0.9045084971874737 0.29389262614623657 0.051033918960042425 -0.9045084971874737 0.2894277367819321 0.100517198116893 -0.9045084971874737 0.27616873209301024 0.14694631307311826 -0.9045084971874737 0.2545184802275636 0.18891053866503912 -0.9045084971874737 0.2251348131329678 0.2251348131329678 -0.9045084971874737 0.18891053866503915 0.25451848022756357 -0.9045084971874737 0.1469463130731183 0.2761687320930102 -0.9045084971874737 0.10051719811689304 0.2894277367819321 -0.9045084971874737 0.051033918960042446 0.29389262614623657 -0.9045084971874737 1.7995733195149916e-17 0.2894277367819321 -0.9045084971874737 -0.05103391896004241 0.27616873209301024 -0.9045084971874737 -0.10051719811689294 0.2545184802275636 -0.9045084971874737 -0.14694631307311823 0.2251348131329678 -0.9045084971874737 -0.18891053866503915 0.18891053866503918 -0.9045084971874737 -0.22513481313296776 0.1469463130731184 -0.9045084971874737 -0.25451848022756357 0.10051719811689305 -0.9045084971874737 -0.2761687320930102 0.051033918960042404 -0.9045084971874737 -0.2894277367819321 3.599146639029983e-17 -0.9045084971874737 -0.29389262614623657 -0.051033918960042335 -0.9045084971874737 -0.2894277367819322 -0.10051719811689298 -0.9045084971874737 -0.27616873209301024 -0.1469463130731183 -0.9045084971874737 -0.25451848022756357 -0.188910538665039 -0.9045084971874737 -0.22513481313296788 -0.22513481313296776 -0.9045084971874737 -0.18891053866503918 -0.2545184802275635 -0.9045084971874737 -0.14694631307311842 -0.27616873209301024 -0.9045084971874737 -0.10051719811689296 -0.2894277367819321 -0.9045084971874737 -0.051033918960042425 -0.29389262614623657 -0.9045084971874737 -5.398719958544975e-17 -0.2894277367819322 -0.9045084971874737 0.051033918960042314 -0.2761687320930102 -0.9045084971874737 0.10051719811689308 -0.25451848022756374 -0.9045084971874737 0.14694631307311806 -0.22513481313296782 -0.9045084971874737 0.18891053866503912 -0.1889105386650392 -0.9045084971874737 0.22513481313296774 -0.14694631307311817 -0.9045084971874737 0.2545184802275636 -0.10051719811689297 -0.9045084971874737 0.27616873209301024 -0.05103391896004244 -0.9045084971874737 0.2894277367819321 0 -0.9455032620941839 0.22699524986977343 0.03941731147893566 -0.9455032620941839 0.2235466819686963 0.07763694789470589 -0.9455032620941839 0.21330576125607953 0.1134976249348867 -0.9455032620941839 0.1965836529256201 0.14590973407399038 -0.9455032620941839 0.17388844977714385 0.17388844977714385 -0.9455032620941839 0.1459097340739904 0.19658365292562008 -0.9455032620941839 0.11349762493488674 0.2133057612560795 -0.9455032620941839 0.07763694789470592 0.2235466819686963 -0.9455032620941839 0.03941731147893568 0.22699524986977343 -0.9455032620941839 1.3899450308733582e-17 0.2235466819686963 -0.9455032620941839 -0.03941731147893565 0.21330576125607953 -0.9455032620941839 -0.07763694789470584 0.1965836529256201 -0.9455032620941839 -0.11349762493488666 0.17388844977714385 -0.9455032620941839 -0.1459097340739904 0.1459097340739904 -0.9455032620941839 -0.17388844977714382 0.11349762493488678 -0.9455032620941839 -0.19658365292562005 0.07763694789470593 -0.9455032620941839 -0.2133057612560795 0.039417311478935645 -0.9455032620941839 -0.2235466819686963 2.7798900617467165e-17 -0.9455032620941839 -0.22699524986977343 -0.03941731147893559 -0.9455032620941839 -0.22354668196869631 -0.07763694789470588 -0.9455032620941839 -0.21330576125607953 -0.11349762493488674 -0.9455032620941839 -0.19658365292562008 -0.1459097340739903 -0.9455032620941839 -0.17388844977714393 -0.17388844977714382 -0.9455032620941839 -0.1459097340739904 -0.19658365292562002 -0.9455032620941839 -0.11349762493488681 -0.21330576125607953 -0.9455032620941839 -0.07763694789470585 -0.2235466819686963 -0.9455032620941839 -0.03941731147893566 -0.22699524986977343 -0.9455032620941839 -4.169835092620075e-17 -0.22354668196869631 -0.9455032620941839 0.03941731147893558 -0.2133057612560795 -0.9455032620941839 0.07763694789470596 -0.19658365292562016 -0.9455032620941839 0.11349762493488655 -0.17388844977714388 -0.9455032620941839 0.14590973407399038 -0.14590973407399044 -0.9455032620941839 0.1738884497771438 -0.11349762493488665 -0.9455032620941839 0.1965836529256201 -0.07763694789470586 -0.9455032620941839 0.21330576125607953 -0.03941731147893567 -0.9455032620941839 0.2235466819686963 0 -0.9755282581475768 0.15450849718747373 0.026830118970660843 -0.9755282581475768 0.15216116593648907 0.052845018353093444 -0.9755282581475768 0.14519049465578934 0.07725424859373685 -0.9755282581475768 0.13380828366490874 0.0993161475833956 -0.9755282581475768 0.11836037568512849 0.11836037568512849 -0.9755282581475768 0.09931614758339563 0.13380828366490874 -0.9755282581475768 0.07725424859373688 0.14519049465578934 -0.9755282581475768 0.052845018353093465 0.15216116593648907 -0.9755282581475768 0.026830118970660857 0.15450849718747373 -0.9755282581475768 9.460916826085376e-18 0.15216116593648907 -0.9755282581475768 -0.02683011897066084 0.14519049465578934 -0.9755282581475768 -0.05284501835309341 0.13380828366490874 -0.9755282581475768 -0.07725424859373684 0.11836037568512849 -0.9755282581475768 -0.09931614758339563 0.09931614758339564 -0.9755282581475768 -0.11836037568512847 0.07725424859373692 -0.9755282581475768 -0.1338082836649087 0.05284501835309347 -0.9755282581475768 -0.14519049465578934 0.026830118970660833 -0.9755282581475768 -0.15216116593648907 1.8921833652170753e-17 -0.9755282581475768 -0.15450849718747373 -0.026830118970660795 -0.9755282581475768 -0.15216116593648907 -0.05284501835309344 -0.9755282581475768 -0.14519049465578934 -0.07725424859373688 -0.9755282581475768 -0.13380828366490874 -0.09931614758339556 -0.9755282581475768 -0.11836037568512854 -0.11836037568512847 -0.9755282581475768 -0.09931614758339564 -0.13380828366490868 -0.9755282581475768 -0.07725424859373693 -0.14519049465578934 -0.9755282581475768 -0.052845018353093416 -0.15216116593648907 -0.9755282581475768 -0.026830118970660843 -0.15450849718747373 -0.9755282581475768 -2.838275047825613e-17 -0.15216116593648907 -0.9755282581475768 0.026830118970660788 -0.14519049465578934 -0.9755282581475768 0.052845018353093486 -0.1338082836649088 -0.9755282581475768 0.07725424859373675 -0.11836037568512851 -0.9755282581475768 0.0993161475833956 -0.09931614758339566 -0.9755282581475768 0.11836037568512846 -0.07725424859373681 -0.9755282581475768 0.13380828366490877 -0.05284501835309343 -0.9755282581475768 0.14519049465578934 -0.02683011897066085 -0.9755282581475768 0.15216116593648907 0 -0.9938441702975689 0.07821723252011546 0.013582279889268611 -0.9938441702975689 0.07702893700496831 0.026751869077067045 -0.9938441702975689 0.07350015621744808 0.039108616260057724 -0.9938441702975689 0.06773811037613432 0.050277067927901264 -0.9938441702975689 0.059917876328179465 0.059917876328179465 -0.9938441702975689 0.05027706792790127 0.06773811037613431 -0.9938441702975689 0.03910861626005774 0.07350015621744807 -0.9938441702975689 0.026751869077067055 0.07702893700496831 -0.9938441702975689 0.013582279889268618 0.07821723252011546 -0.9938441702975689 4.789424172196183e-18 0.07702893700496831 -0.9938441702975689 -0.01358227988926861 0.07350015621744808 -0.9938441702975689 -0.026751869077067027 0.06773811037613432 -0.9938441702975689 -0.03910861626005771 0.059917876328179465 -0.9938441702975689 -0.05027706792790127 0.05027706792790128 -0.9938441702975689 -0.05991787632817946 0.03910861626005776 -0.9938441702975689 -0.06773811037613431 0.02675186907706706 -0.9938441702975689 -0.07350015621744807 0.013582279889268606 -0.9938441702975689 -0.07702893700496831 9.578848344392366e-18 -0.9938441702975689 -0.07821723252011546 -0.013582279889268587 -0.9938441702975689 -0.07702893700496832 -0.02675186907706704 -0.9938441702975689 -0.07350015621744808 -0.03910861626005774 -0.9938441702975689 -0.06773811037613431 -0.05027706792790124 -0.9938441702975689 -0.05991787632817949 -0.05991787632817946 -0.9938441702975689 -0.05027706792790128 -0.0677381103761343 -0.9938441702975689 -0.039108616260057766 -0.07350015621744808 -0.9938441702975689 -0.026751869077067034 -0.07702893700496831 -0.9938441702975689 -0.013582279889268611 -0.07821723252011546 -0.9938441702975689 -1.436827251658855e-17 -0.07702893700496832 -0.9938441702975689 0.013582279889268582 -0.07350015621744807 -0.9938441702975689 0.02675186907706707 -0.06773811037613435 -0.9938441702975689 0.039108616260057676 -0.05991787632817948 -0.9938441702975689 0.050277067927901264 -0.050277067927901285 -0.9938441702975689 0.05991787632817945 -0.0391086162600577 -0.9938441702975689 0.06773811037613434 -0.026751869077067038 -0.9938441702975689 0.07350015621744808 -0.013582279889268615 -0.9938441702975689 0.07702893700496831 0 -1 3.061616997868383e-17 5.316442123939428e-18 -1 3.015104156254744e-17 1.047134684419248e-17 -1 2.8769789005696257e-17 1.5308084989341912e-17 -1 2.6514380968122673e-17 1.9679694718354963e-17 -1 2.3453346881756827e-17 2.3453346881756827e-17 -1 1.9679694718354966e-17 2.651438096812267e-17 -1 1.5308084989341918e-17 2.8769789005696257e-17 -1 1.0471346844192482e-17 3.015104156254744e-17 -1 5.3164421239394306e-18 3.061616997868383e-17 -1 1.874699728327322e-33 3.015104156254744e-17 -1 -5.3164421239394275e-18 2.8769789005696257e-17 -1 -1.0471346844192472e-17 2.6514380968122673e-17 -1 -1.530808498934191e-17 2.3453346881756827e-17 -1 -1.9679694718354966e-17 1.967969471835497e-17 -1 -2.3453346881756824e-17 1.5308084989341924e-17 -1 -2.6514380968122667e-17 1.0471346844192484e-17 -1 -2.8769789005696257e-17 5.316442123939427e-18 -1 -3.015104156254744e-17 3.749399456654644e-33 -1 -3.061616997868383e-17 -5.316442123939419e-18 -1 -3.0151041562547447e-17 -1.0471346844192478e-17 -1 -2.8769789005696257e-17 -1.5308084989341918e-17 -1 -2.651438096812267e-17 -1.9679694718354953e-17 -1 -2.345334688175684e-17 -2.3453346881756824e-17 -1 -1.967969471835497e-17 -2.6514380968122664e-17 -1 -1.5308084989341927e-17 -2.8769789005696257e-17 -1 -1.0471346844192475e-17 -3.015104156254744e-17 -1 -5.316442123939428e-18 -3.061616997868383e-17 -1 -5.624099184981966e-33 -3.0151041562547447e-17 -1 5.3164421239394175e-18 -2.8769789005696257e-17 -1 1.0471346844192487e-17 -2.6514380968122685e-17 -1 1.5308084989341894e-17 -2.345334688175683e-17 -1 1.9679694718354963e-17 -1.9679694718354972e-17 -1 2.345334688175682e-17 -1.5308084989341906e-17 -1 2.651438096812268e-17 -1.0471346844192476e-17 -1 2.8769789005696257e-17 -5.31644212393943e-18 -1 3.015104156254744e-17'/>
</IndexedFaceSet>
<Appearance>
<Material diffuseColor='0.2 0.5 0.8'/>
</Appearance>
</Shape>
</Transform>
<Shape DEF='linesCapsule'>
<!-- lines Capsule consisting of 36 sides, with [36 circumference points * (10+1) vertical levels = 396] top-cap and 396 bottom-cap quadrilaterals together making a total of 792 Coordinate point values -->
<IndexedLineSet coordIndex='37 36 0 1 -1 38 37 1 2 -1 39 38 2 3 -1 40 39 3 4 -1 41 40 4 5 -1 42 41 5 6 -1 43 42 6 7 -1 44 43 7 8 -1 45 44 8 9 -1 46 45 9 10 -1 47 46 10 11 -1 48 47 11 12 -1 49 48 12 13 -1 50 49 13 14 -1 51 50 14 15 -1 52 51 15 16 -1 53 52 16 17 -1 54 53 17 18 -1 55 54 18 19 -1 56 55 19 20 -1 57 56 20 21 -1 58 57 21 22 -1 59 58 22 23 -1 60 59 23 24 -1 61 60 24 25 -1 62 61 25 26 -1 63 62 26 27 -1 64 63 27 28 -1 65 64 28 29 -1 66 65 29 30 -1 67 66 30 31 -1 68 67 31 32 -1 69 68 32 33 -1 70 69 33 34 -1 71 70 34 35 -1 36 71 35 0 -1 73 72 36 37 -1 74 73 37 38 -1 75 74 38 39 -1 76 75 39 40 -1 77 76 40 41 -1 78 77 41 42 -1 79 78 42 43 -1 80 79 43 44 -1 81 80 44 45 -1 82 81 45 46 -1 83 82 46 47 -1 84 83 47 48 -1 85 84 48 49 -1 86 85 49 50 -1 87 86 50 51 -1 88 87 51 52 -1 89 88 52 53 -1 90 89 53 54 -1 91 90 54 55 -1 92 91 55 56 -1 93 92 56 57 -1 94 93 57 58 -1 95 94 58 59 -1 96 95 59 60 -1 97 96 60 61 -1 98 97 61 62 -1 99 98 62 63 -1 100 99 63 64 -1 101 100 64 65 -1 102 101 65 66 -1 103 102 66 67 -1 104 103 67 68 -1 105 104 68 69 -1 106 105 69 70 -1 107 106 70 71 -1 72 107 71 36 -1 109 108 72 73 -1 110 109 73 74 -1 111 110 74 75 -1 112 111 75 76 -1 113 112 76 77 -1 114 113 77 78 -1 115 114 78 79 -1 116 115 79 80 -1 117 116 80 81 -1 118 117 81 82 -1 119 118 82 83 -1 120 119 83 84 -1 121 120 84 85 -1 122 121 85 86 -1 123 122 86 87 -1 124 123 87 88 -1 125 124 88 89 -1 126 125 89 90 -1 127 126 90 91 -1 128 127 91 92 -1 129 128 92 93 -1 130 129 93 94 -1 131 130 94 95 -1 132 131 95 96 -1 133 132 96 97 -1 134 133 97 98 -1 135 134 98 99 -1 136 135 99 100 -1 137 136 100 101 -1 138 137 101 102 -1 139 138 102 103 -1 140 139 103 104 -1 141 140 104 105 -1 142 141 105 106 -1 143 142 106 107 -1 108 143 107 72 -1 145 144 108 109 -1 146 145 109 110 -1 147 146 110 111 -1 148 147 111 112 -1 149 148 112 113 -1 150 149 113 114 -1 151 150 114 115 -1 152 151 115 116 -1 153 152 116 117 -1 154 153 117 118 -1 155 154 118 119 -1 156 155 119 120 -1 157 156 120 121 -1 158 157 121 122 -1 159 158 122 123 -1 160 159 123 124 -1 161 160 124 125 -1 162 161 125 126 -1 163 162 126 127 -1 164 163 127 128 -1 165 164 128 129 -1 166 165 129 130 -1 167 166 130 131 -1 168 167 131 132 -1 169 168 132 133 -1 170 169 133 134 -1 171 170 134 135 -1 172 171 135 136 -1 173 172 136 137 -1 174 173 137 138 -1 175 174 138 139 -1 176 175 139 140 -1 177 176 140 141 -1 178 177 141 142 -1 179 178 142 143 -1 144 179 143 108 -1 181 180 144 145 -1 182 181 145 146 -1 183 182 146 147 -1 184 183 147 148 -1 185 184 148 149 -1 186 185 149 150 -1 187 186 150 151 -1 188 187 151 152 -1 189 188 152 153 -1 190 189 153 154 -1 191 190 154 155 -1 192 191 155 156 -1 193 192 156 157 -1 194 193 157 158 -1 195 194 158 159 -1 196 195 159 160 -1 197 196 160 161 -1 198 197 161 162 -1 199 198 162 163 -1 200 199 163 164 -1 201 200 164 165 -1 202 201 165 166 -1 203 202 166 167 -1 204 203 167 168 -1 205 204 168 169 -1 206 205 169 170 -1 207 206 170 171 -1 208 207 171 172 -1 209 208 172 173 -1 210 209 173 174 -1 211 210 174 175 -1 212 211 175 176 -1 213 212 176 177 -1 214 213 177 178 -1 215 214 178 179 -1 180 215 179 144 -1 217 216 180 181 -1 218 217 181 182 -1 219 218 182 183 -1 220 219 183 184 -1 221 220 184 185 -1 222 221 185 186 -1 223 222 186 187 -1 224 223 187 188 -1 225 224 188 189 -1 226 225 189 190 -1 227 226 190 191 -1 228 227 191 192 -1 229 228 192 193 -1 230 229 193 194 -1 231 230 194 195 -1 232 231 195 196 -1 233 232 196 197 -1 234 233 197 198 -1 235 234 198 199 -1 236 235 199 200 -1 237 236 200 201 -1 238 237 201 202 -1 239 238 202 203 -1 240 239 203 204 -1 241 240 204 205 -1 242 241 205 206 -1 243 242 206 207 -1 244 243 207 208 -1 245 244 208 209 -1 246 245 209 210 -1 247 246 210 211 -1 248 247 211 212 -1 249 248 212 213 -1 250 249 213 214 -1 251 250 214 215 -1 216 251 215 180 -1 253 252 216 217 -1 254 253 217 218 -1 255 254 218 219 -1 256 255 219 220 -1 257 256 220 221 -1 258 257 221 222 -1 259 258 222 223 -1 260 259 223 224 -1 261 260 224 225 -1 262 261 225 226 -1 263 262 226 227 -1 264 263 227 228 -1 265 264 228 229 -1 266 265 229 230 -1 267 266 230 231 -1 268 267 231 232 -1 269 268 232 233 -1 270 269 233 234 -1 271 270 234 235 -1 272 271 235 236 -1 273 272 236 237 -1 274 273 237 238 -1 275 274 238 239 -1 276 275 239 240 -1 277 276 240 241 -1 278 277 241 242 -1 279 278 242 243 -1 280 279 243 244 -1 281 280 244 245 -1 282 281 245 246 -1 283 282 246 247 -1 284 283 247 248 -1 285 284 248 249 -1 286 285 249 250 -1 287 286 250 251 -1 252 287 251 216 -1 289 288 252 253 -1 290 289 253 254 -1 291 290 254 255 -1 292 291 255 256 -1 293 292 256 257 -1 294 293 257 258 -1 295 294 258 259 -1 296 295 259 260 -1 297 296 260 261 -1 298 297 261 262 -1 299 298 262 263 -1 300 299 263 264 -1 301 300 264 265 -1 302 301 265 266 -1 303 302 266 267 -1 304 303 267 268 -1 305 304 268 269 -1 306 305 269 270 -1 307 306 270 271 -1 308 307 271 272 -1 309 308 272 273 -1 310 309 273 274 -1 311 310 274 275 -1 312 311 275 276 -1 313 312 276 277 -1 314 313 277 278 -1 315 314 278 279 -1 316 315 279 280 -1 317 316 280 281 -1 318 317 281 282 -1 319 318 282 283 -1 320 319 283 284 -1 321 320 284 285 -1 322 321 285 286 -1 323 322 286 287 -1 288 323 287 252 -1 325 324 288 289 -1 326 325 289 290 -1 327 326 290 291 -1 328 327 291 292 -1 329 328 292 293 -1 330 329 293 294 -1 331 330 294 295 -1 332 331 295 296 -1 333 332 296 297 -1 334 333 297 298 -1 335 334 298 299 -1 336 335 299 300 -1 337 336 300 301 -1 338 337 301 302 -1 339 338 302 303 -1 340 339 303 304 -1 341 340 304 305 -1 342 341 305 306 -1 343 342 306 307 -1 344 343 307 308 -1 345 344 308 309 -1 346 345 309 310 -1 347 346 310 311 -1 348 347 311 312 -1 349 348 312 313 -1 350 349 313 314 -1 351 350 314 315 -1 352 351 315 316 -1 353 352 316 317 -1 354 353 317 318 -1 355 354 318 319 -1 356 355 319 320 -1 357 356 320 321 -1 358 357 321 322 -1 359 358 322 323 -1 324 359 323 288 -1 361 360 324 325 -1 362 361 325 326 -1 363 362 326 327 -1 364 363 327 328 -1 365 364 328 329 -1 366 365 329 330 -1 367 366 330 331 -1 368 367 331 332 -1 369 368 332 333 -1 370 369 333 334 -1 371 370 334 335 -1 372 371 335 336 -1 373 372 336 337 -1 374 373 337 338 -1 375 374 338 339 -1 376 375 339 340 -1 377 376 340 341 -1 378 377 341 342 -1 379 378 342 343 -1 380 379 343 344 -1 381 380 344 345 -1 382 381 345 346 -1 383 382 346 347 -1 384 383 347 348 -1 385 384 348 349 -1 386 385 349 350 -1 387 386 350 351 -1 388 387 351 352 -1 389 388 352 353 -1 390 389 353 354 -1 391 390 354 355 -1 392 391 355 356 -1 393 392 356 357 -1 394 393 357 358 -1 395 394 358 359 -1 360 395 359 324 -1 432 433 397 396 -1 433 434 398 397 -1 434 435 399 398 -1 435 436 400 399 -1 436 437 401 400 -1 437 438 402 401 -1 438 439 403 402 -1 439 440 404 403 -1 440 441 405 404 -1 441 442 406 405 -1 442 443 407 406 -1 443 444 408 407 -1 444 445 409 408 -1 445 446 410 409 -1 446 447 411 410 -1 447 448 412 411 -1 448 449 413 412 -1 449 450 414 413 -1 450 451 415 414 -1 451 452 416 415 -1 452 453 417 416 -1 453 454 418 417 -1 454 455 419 418 -1 455 456 420 419 -1 456 457 421 420 -1 457 458 422 421 -1 458 459 423 422 -1 459 460 424 423 -1 460 461 425 424 -1 461 462 426 425 -1 462 463 427 426 -1 463 464 428 427 -1 464 465 429 428 -1 465 466 430 429 -1 466 467 431 430 -1 467 432 396 431 -1 468 469 433 432 -1 469 470 434 433 -1 470 471 435 434 -1 471 472 436 435 -1 472 473 437 436 -1 473 474 438 437 -1 474 475 439 438 -1 475 476 440 439 -1 476 477 441 440 -1 477 478 442 441 -1 478 479 443 442 -1 479 480 444 443 -1 480 481 445 444 -1 481 482 446 445 -1 482 483 447 446 -1 483 484 448 447 -1 484 485 449 448 -1 485 486 450 449 -1 486 487 451 450 -1 487 488 452 451 -1 488 489 453 452 -1 489 490 454 453 -1 490 491 455 454 -1 491 492 456 455 -1 492 493 457 456 -1 493 494 458 457 -1 494 495 459 458 -1 495 496 460 459 -1 496 497 461 460 -1 497 498 462 461 -1 498 499 463 462 -1 499 500 464 463 -1 500 501 465 464 -1 501 502 466 465 -1 502 503 467 466 -1 503 468 432 467 -1 504 505 469 468 -1 505 506 470 469 -1 506 507 471 470 -1 507 508 472 471 -1 508 509 473 472 -1 509 510 474 473 -1 510 511 475 474 -1 511 512 476 475 -1 512 513 477 476 -1 513 514 478 477 -1 514 515 479 478 -1 515 516 480 479 -1 516 517 481 480 -1 517 518 482 481 -1 518 519 483 482 -1 519 520 484 483 -1 520 521 485 484 -1 521 522 486 485 -1 522 523 487 486 -1 523 524 488 487 -1 524 525 489 488 -1 525 526 490 489 -1 526 527 491 490 -1 527 528 492 491 -1 528 529 493 492 -1 529 530 494 493 -1 530 531 495 494 -1 531 532 496 495 -1 532 533 497 496 -1 533 534 498 497 -1 534 535 499 498 -1 535 536 500 499 -1 536 537 501 500 -1 537 538 502 501 -1 538 539 503 502 -1 539 504 468 503 -1 540 541 505 504 -1 541 542 506 505 -1 542 543 507 506 -1 543 544 508 507 -1 544 545 509 508 -1 545 546 510 509 -1 546 547 511 510 -1 547 548 512 511 -1 548 549 513 512 -1 549 550 514 513 -1 550 551 515 514 -1 551 552 516 515 -1 552 553 517 516 -1 553 554 518 517 -1 554 555 519 518 -1 555 556 520 519 -1 556 557 521 520 -1 557 558 522 521 -1 558 559 523 522 -1 559 560 524 523 -1 560 561 525 524 -1 561 562 526 525 -1 562 563 527 526 -1 563 564 528 527 -1 564 565 529 528 -1 565 566 530 529 -1 566 567 531 530 -1 567 568 532 531 -1 568 569 533 532 -1 569 570 534 533 -1 570 571 535 534 -1 571 572 536 535 -1 572 573 537 536 -1 573 574 538 537 -1 574 575 539 538 -1 575 540 504 539 -1 576 577 541 540 -1 577 578 542 541 -1 578 579 543 542 -1 579 580 544 543 -1 580 581 545 544 -1 581 582 546 545 -1 582 583 547 546 -1 583 584 548 547 -1 584 585 549 548 -1 585 586 550 549 -1 586 587 551 550 -1 587 588 552 551 -1 588 589 553 552 -1 589 590 554 553 -1 590 591 555 554 -1 591 592 556 555 -1 592 593 557 556 -1 593 594 558 557 -1 594 595 559 558 -1 595 596 560 559 -1 596 597 561 560 -1 597 598 562 561 -1 598 599 563 562 -1 599 600 564 563 -1 600 601 565 564 -1 601 602 566 565 -1 602 603 567 566 -1 603 604 568 567 -1 604 605 569 568 -1 605 606 570 569 -1 606 607 571 570 -1 607 608 572 571 -1 608 609 573 572 -1 609 610 574 573 -1 610 611 575 574 -1 611 576 540 575 -1 612 613 577 576 -1 613 614 578 577 -1 614 615 579 578 -1 615 616 580 579 -1 616 617 581 580 -1 617 618 582 581 -1 618 619 583 582 -1 619 620 584 583 -1 620 621 585 584 -1 621 622 586 585 -1 622 623 587 586 -1 623 624 588 587 -1 624 625 589 588 -1 625 626 590 589 -1 626 627 591 590 -1 627 628 592 591 -1 628 629 593 592 -1 629 630 594 593 -1 630 631 595 594 -1 631 632 596 595 -1 632 633 597 596 -1 633 634 598 597 -1 634 635 599 598 -1 635 636 600 599 -1 636 637 601 600 -1 637 638 602 601 -1 638 639 603 602 -1 639 640 604 603 -1 640 641 605 604 -1 641 642 606 605 -1 642 643 607 606 -1 643 644 608 607 -1 644 645 609 608 -1 645 646 610 609 -1 646 647 611 610 -1 647 612 576 611 -1 648 649 613 612 -1 649 650 614 613 -1 650 651 615 614 -1 651 652 616 615 -1 652 653 617 616 -1 653 654 618 617 -1 654 655 619 618 -1 655 656 620 619 -1 656 657 621 620 -1 657 658 622 621 -1 658 659 623 622 -1 659 660 624 623 -1 660 661 625 624 -1 661 662 626 625 -1 662 663 627 626 -1 663 664 628 627 -1 664 665 629 628 -1 665 666 630 629 -1 666 667 631 630 -1 667 668 632 631 -1 668 669 633 632 -1 669 670 634 633 -1 670 671 635 634 -1 671 672 636 635 -1 672 673 637 636 -1 673 674 638 637 -1 674 675 639 638 -1 675 676 640 639 -1 676 677 641 640 -1 677 678 642 641 -1 678 679 643 642 -1 679 680 644 643 -1 680 681 645 644 -1 681 682 646 645 -1 682 683 647 646 -1 683 648 612 647 -1 684 685 649 648 -1 685 686 650 649 -1 686 687 651 650 -1 687 688 652 651 -1 688 689 653 652 -1 689 690 654 653 -1 690 691 655 654 -1 691 692 656 655 -1 692 693 657 656 -1 693 694 658 657 -1 694 695 659 658 -1 695 696 660 659 -1 696 697 661 660 -1 697 698 662 661 -1 698 699 663 662 -1 699 700 664 663 -1 700 701 665 664 -1 701 702 666 665 -1 702 703 667 666 -1 703 704 668 667 -1 704 705 669 668 -1 705 706 670 669 -1 706 707 671 670 -1 707 708 672 671 -1 708 709 673 672 -1 709 710 674 673 -1 710 711 675 674 -1 711 712 676 675 -1 712 713 677 676 -1 713 714 678 677 -1 714 715 679 678 -1 715 716 680 679 -1 716 717 681 680 -1 717 718 682 681 -1 718 719 683 682 -1 719 684 648 683 -1 720 721 685 684 -1 721 722 686 685 -1 722 723 687 686 -1 723 724 688 687 -1 724 725 689 688 -1 725 726 690 689 -1 726 727 691 690 -1 727 728 692 691 -1 728 729 693 692 -1 729 730 694 693 -1 730 731 695 694 -1 731 732 696 695 -1 732 733 697 696 -1 733 734 698 697 -1 734 735 699 698 -1 735 736 700 699 -1 736 737 701 700 -1 737 738 702 701 -1 738 739 703 702 -1 739 740 704 703 -1 740 741 705 704 -1 741 742 706 705 -1 742 743 707 706 -1 743 744 708 707 -1 744 745 709 708 -1 745 746 710 709 -1 746 747 711 710 -1 747 748 712 711 -1 748 749 713 712 -1 749 750 714 713 -1 750 751 715 714 -1 751 752 716 715 -1 752 753 717 716 -1 753 754 718 717 -1 754 755 719 718 -1 755 720 684 719 -1 756 757 721 720 -1 757 758 722 721 -1 758 759 723 722 -1 759 760 724 723 -1 760 761 725 724 -1 761 762 726 725 -1 762 763 727 726 -1 763 764 728 727 -1 764 765 729 728 -1 765 766 730 729 -1 766 767 731 730 -1 767 768 732 731 -1 768 769 733 732 -1 769 770 734 733 -1 770 771 735 734 -1 771 772 736 735 -1 772 773 737 736 -1 773 774 738 737 -1 774 775 739 738 -1 775 776 740 739 -1 776 777 741 740 -1 777 778 742 741 -1 778 779 743 742 -1 779 780 744 743 -1 780 781 745 744 -1 781 782 746 745 -1 782 783 747 746 -1 783 784 748 747 -1 784 785 749 748 -1 785 786 750 749 -1 786 787 751 750 -1 787 788 752 751 -1 788 789 753 752 -1 789 790 754 753 -1 790 791 755 754 -1 791 756 720 755 -1 1 0 396 397 -1 2 1 397 398 -1 3 2 398 399 -1 4 3 399 400 -1 5 4 400 401 -1 6 5 401 402 -1 7 6 402 403 -1 8 7 403 404 -1 9 8 404 405 -1 10 9 405 406 -1 11 10 406 407 -1 12 11 407 408 -1 13 12 408 409 -1 14 13 409 410 -1 15 14 410 411 -1 16 15 411 412 -1 17 16 412 413 -1 18 17 413 414 -1 19 18 414 415 -1 20 19 415 416 -1 21 20 416 417 -1 22 21 417 418 -1 23 22 418 419 -1 24 23 419 420 -1 25 24 420 421 -1 26 25 421 422 -1 27 26 422 423 -1 28 27 423 424 -1 29 28 424 425 -1 30 29 425 426 -1 31 30 426 427 -1 32 31 427 428 -1 33 32 428 429 -1 34 33 429 430 -1 35 34 430 431 -1 0 35 431 396 -1'>
<Coordinate USE='PointArray36x10'/>
</IndexedLineSet>
<Appearance>
<Material emissiveColor='0.2 0.5 0.8'/>
</Appearance>
</Shape>
<Transform translation='2 0 0'>
<Shape DEF='pointsCapsule'>
<!-- points Capsule consisting of 36 sides, with [36 circumference points * (10+1) vertical levels = 396] top-cap and 396 bottom-cap points together making a total of 792 Coordinate point values -->
<PointSet>
<Coordinate USE='PointArray36x10'/>
</PointSet>
<Appearance>
<Material emissiveColor='0.1 0.25 0.4'/>
</Appearance>
</Shape>
</Transform>
</Scene>
</X3D>
<!--

Index for DEF nodes : linesCapsule, PointArray36x10, pointsCapsule, polygonsCapsule

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4
-->

<!-- Color key: <X3dNode DEF='idName' field='value'/> matches <XmlElement DEF='idName' attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->

<!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources and X3D Scene Authoring Hints. -->
