<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "http://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Immersive' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='titlecontent='LOD.x3d'/>
<meta name='descriptioncontent='Example for LOD node'/>
<meta name='creatorcontent='Leonard Daly and Don Brutzman'/>
<meta name='createdcontent='14 November 2005'/>
<meta name='modifiedcontent='20 October 2019'/>
<meta name='referencecontent=' https://github.com/create3000/x_ite/issues/38 '/>
<meta name='referencecontent=' http://X3dGraphics.com '/>
<meta name='referencecontent=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rightscontent='Copyright 2006, Daly Realism and Don Brutzman'/>
<meta name='subjectcontent=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifiercontent=' http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter03Grouping/LOD.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!--

Index for DEF nodes : View2dImageAtLongerRange, View3dModelAtCloseRange

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3
-->
<Scene>
<Background skyColor='1 1 1transparency='0'/>
<NavigationInfo type='"FLY" "ANY"'/>

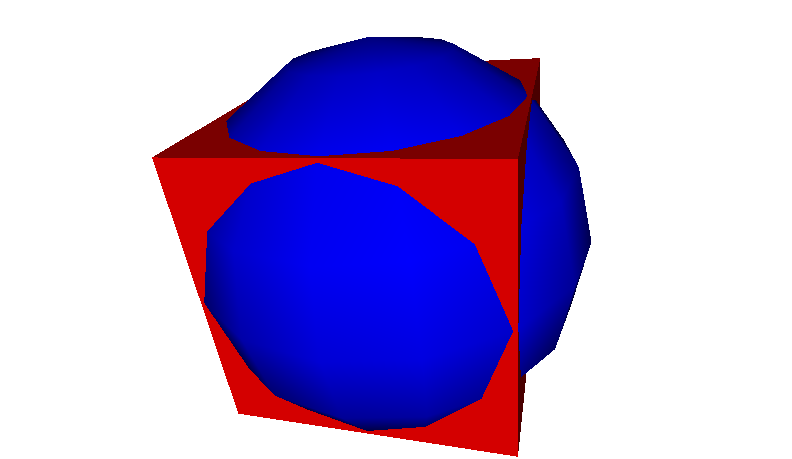

<Viewpoint description='Book View - Near, all shapes shownorientation='0.866 -0.497 0.058 -0.59position='1.2 1.98 3.4'/>

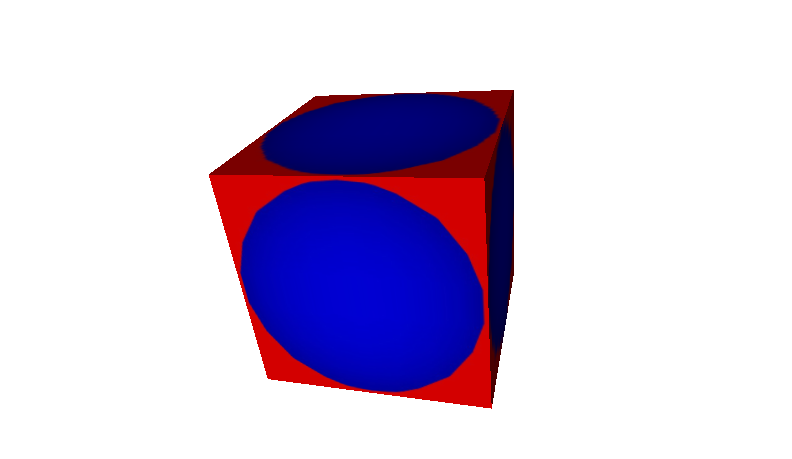

<Viewpoint description='Book View - Farther, texture shownorientation='0.866 -0.497 0.058 -0.59position='1.47 2.43 4.18'/>
<Viewpoint description='Book View - Farthest, nothing shownposition='0 0 12'/>
<LOD range='5 9bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Group DEF='View3dModelAtCloseRangebboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material diffuseColor='1 0 0'/>
</Appearance>
<Box size='2 2 2solid='true'/>
</Shape>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material diffuseColor='0 0 1'/>
</Appearance>
<Sphere radius='1.4'/>
</Shape>
</Group>
<Group DEF='View2dImageAtLongerRangebboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material/>
<!-- https://github.com/create3000/x_ite/issues/38 -->
<ImageTexture
  url=' "LOD.jpg" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter03Grouping/LOD.jpg" '/>
</Appearance>
<Box size='2 2 2solid='true'/>
</Shape>
</Group>
<WorldInfo info='"Not visible at farthest range"'/>
</LOD>
</Scene>
</X3D>
<!--

Index for DEF nodes : View2dImageAtLongerRange, View3dModelAtCloseRange

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3
-->
