Anchor comparison, view from front

Viewpoint nodes are the primary means for users to explore a scene. NavigationInfo nodes enable different user-interaction styles (FLY, WALK, EXAMINE etc.) as appropriate. Only one Viewpoint and one NavigationInfo node can each be active a time, with order of selection controlled via a binding stack.

The supporting Chapter 4 slideset and course videos (NPS, YouTube) for X3D for Web Authors are available online via

Also available: X3D Scene Authoring Hints: Viewpoints and Navigation.

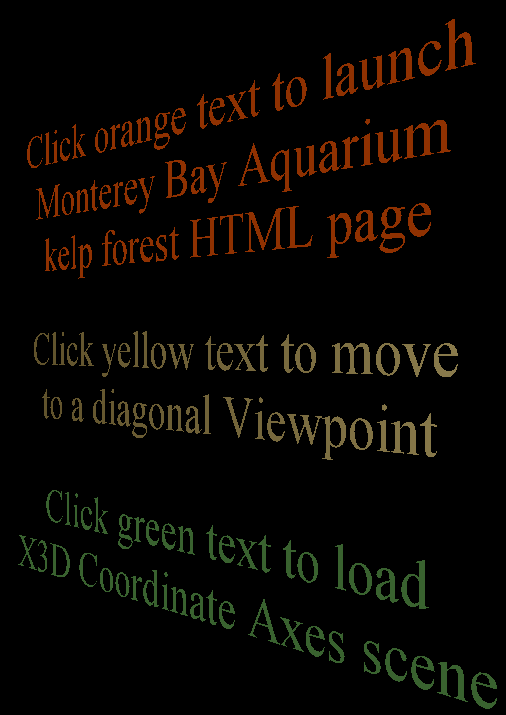

Anchor comparison, oblique view from right side
  8 X3D Scenes       Scene Descriptions
Aliasing Example Illustrates the effect of aliasing (tearing) by the coplanar overlap of two cubes with different colors.
Anchor Anchor example using the Kelp Forest world.
Anchor Comparison Anchor-node examples comparing HTML page launch, shifting Viewpoints, and loading another X3D scene.
Billboard Illustrates Billboard operation using Kelp Forest example scenes for Figure 4.4, X3D for Web Authors.
Binding Operations Illustrate Viewpoint binding operations (in gory detail!) as described in Chapter 4 concepts. Scene design: a TimeSensor clock drives and IntegerSequencer for each t0/t1/etc. event, and a customized Script node sends bind/unbind events to the correct Viewpoint. Display the browser console to see occurrence of each event.
Collision Illustrate Collision node operation: set Collision enabled="true" to block user navigation through the Kelp Forest tank glass.
Navigation Info NavigationInfo override example for Kelp Forest world.
Viewpoint Viewpoint example added to Kelp Forest world.
