<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN"   "http://www.web3d.org/specifications/x3d-3.2.dtd">
<X3D profile='Immersive' version='3.2' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation=' http://www.web3d.org/specifications/x3d-3.2.xsd '>
<head>
<meta name='title' content='MovieTextureAuthoringOptions.x3d'/>
<meta name='description' content='Provide examples of helpful MovieTexture usage'/>
<meta name='creator' content='Don Brutzman and MV3204 class'/>
<meta name='created' content='21 August 2008'/>
<meta name='modified' content='27 August 2008'/>
<meta name='subject' content='MovieTexture examples'/>

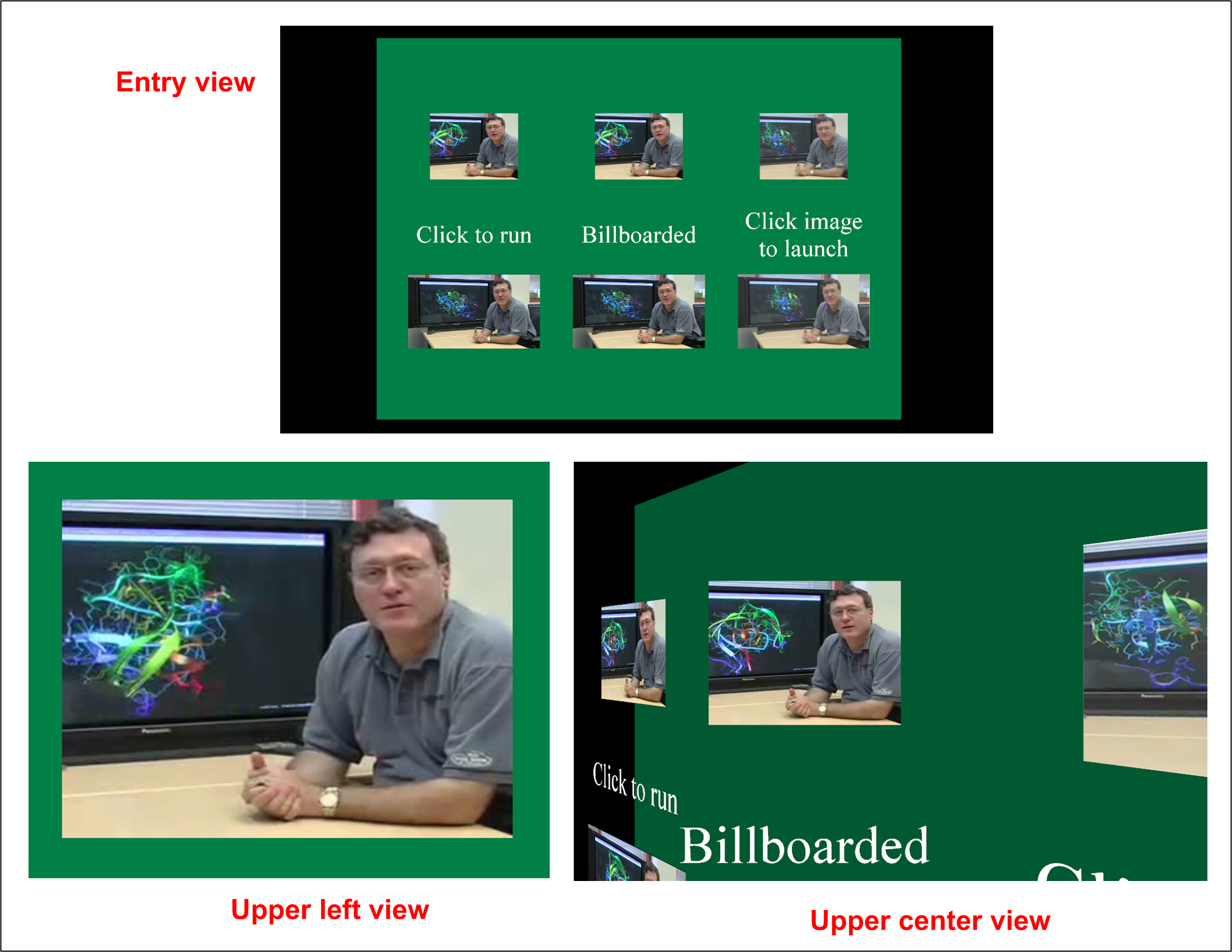

<meta name='image' content='MovieTextureFigure.png'/>
<meta name='identifier' content=' http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/MovieTextureAuthoringOptions.x3d '/>
<meta name='generator' content='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content='../license.html'/>
</head>
<!--
Index for DEF nodes: Backdrop, BottomGroup, CenterGroup, FullImageMapping, MovieShapeHighDefinition, MovieShapeStandardDefinition, MovieTouchHighDefinition, MovieTouchStandardDefinition, Quadrilateral320x240, Quadrilateral480x270, TopGroup, X3dQuipMovieHighDefinition, X3dQuipMovieStandardDefinition
Index for Viewpoint images: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7
-->
<Scene>
<Viewpoint description='MovieTexture authoring options' position='0 0 18' retainUserOffsets='false'/>
<!-- Flat surface movie, fixed position and orientation -->
<Group DEF='TopGroup'>
<Transform translation='-6 3 0'>
<Viewpoint description='Movie #1, standard aspect ratio' position='0 0 5' retainUserOffsets='false'/>
<Shape DEF='MovieShapeStandardDefinition'>
<IndexedFaceSet DEF='Quadrilateral320x240' solid='false' coordIndex='0 1 2 3'>
<Coordinate point='-1.6 -1.2 0 1.6 -1.2 0 1.6 1.2 0 -1.6 1.2 0'/>
<TextureCoordinate DEF='FullImageMapping' point='0 0 1 0 1 1 0 1'/>
</IndexedFaceSet>
<Appearance>
<!-- X3dQuipMovieStandardDefinition ROUTE:  [from MovieTouchStandardDefinition.touchTime to startTime ] -->
<MovieTexture DEF='X3dQuipMovieStandardDefinition' repeatS='false' repeatT='false'
  url=' "X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "X3dQuipBrutzmanStandardDefinitionMPEG1.mov" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mov" '/>
</Appearance>
</Shape>
</Transform>
<!-- movie under a Billboard to always face user -->
<Transform translation='0 3 0'>
<Viewpoint description='Billboarded movie #2 offset view location, standard aspect ratio' orientation='0 1 0 0.8' position='4 0 4' retainUserOffsets='false'/>
<Billboard axisOfRotation='0 0 0'>
<Shape USE='MovieShapeStandardDefinition'/>
</Billboard>
</Transform>
<!-- MovieTouchStandardDefinition ROUTE:  [from touchTime to X3dQuipMovieStandardDefinition.startTime ] -->
<TouchSensor DEF='MovieTouchStandardDefinition' description='click to start'/>
<ROUTE fromNode='MovieTouchStandardDefinition' fromField='touchTime' toNode='X3dQuipMovieStandardDefinition' toField='startTime'/>
</Group>
<!-- Launch movie into external browser -->
<Transform translation='6 3 0'>
<Viewpoint description='Image #3 launches movie externally, standard aspect ratio' position='0 0 5' retainUserOffsets='false'/>
<Anchor description='Click to launch in external browser' parameter='target=_blank'
  url=' "X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "X3dQuipBrutzmanStandardDefinitionMPEG1.mov" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mpg" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionMPEG1.mov" '>
<Shape>
<IndexedFaceSet USE='Quadrilateral320x240'/>
<Appearance>
<ImageTexture repeatS='false' repeatT='false'
  url=' "X3dQuipBrutzmanStandardDefinitionInitialFrame.png" "X3dQuipBrutzmanStandardDefinitionInitialFrame.gif" "X3dQuipBrutzmanStandardDefinitionInitialFrame.jpg" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionInitialFrame.png" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionInitialFrame.gif" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanStandardDefinitionInitialFrame.jpg" '/>
</Appearance>
</Shape>
</Anchor>
</Transform>
<Group DEF='CenterGroup'>
<Transform translation='-6 0 0'>
<Shape>
<Text string='"Click to run"' solid='true'>
<FontStyle justify='"MIDDLE" "MIDDLE"'/>
</Text>
</Shape>
</Transform>
<Billboard axisOfRotation='0 0 0'>
<Shape>
<Text string='Billboarded' solid='true'>
<FontStyle justify='"MIDDLE" "MIDDLE"'/>
</Text>
</Shape>
</Billboard>
<Transform translation='6 0 0'>
<Shape>
<Text string='"Click image" "to launch"' solid='true'>
<FontStyle justify='"MIDDLE" "MIDDLE"'/>
</Text>
</Shape>
</Transform>
</Group>
<Group DEF='BottomGroup'>
<Transform translation='-6 -3 0'>
<Viewpoint description='Movie #4, standard aspect ratio' position='0 0 5' retainUserOffsets='false'/>
<Shape DEF='MovieShapeHighDefinition'>
<IndexedFaceSet DEF='Quadrilateral480x270' solid='false' coordIndex='0 1 2 3'>
<Coordinate point='-2.4 -1.35 0 2.4 -1.35 0 2.4 1.35 0 -2.4 1.35 0'/>
<TextureCoordinate USE='FullImageMapping'/>
</IndexedFaceSet>
<Appearance>
<TextureTransform scale='1 1'/>
<!-- X3dQuipMovieHighDefinition ROUTE:  [from MovieTouchHighDefinition.touchTime to startTime ] -->
<MovieTexture DEF='X3dQuipMovieHighDefinition' repeatS='false' repeatT='false'
  url=' "X3dQuipBrutzmanH264MPEG1Mash.mpg" "X3dQuipBrutzmanH264.mov" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanH264MPEG1Mash.mpg" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanH264.mov" '/>
</Appearance>
</Shape>
</Transform>
<!-- movie under a Billboard to always face user -->
<Transform translation='0 -3 0'>
<Viewpoint description='Billboarded movie #5 offset view location, standard aspect ratio' orientation='0 1 0 0.8' position='4 0 4' retainUserOffsets='false'/>
<Billboard axisOfRotation='0 0 0'>
<Shape USE='MovieShapeHighDefinition'/>
</Billboard>
</Transform>
<!-- MovieTouchHighDefinition ROUTE:  [from touchTime to X3dQuipMovieHighDefinition.startTime ] -->
<TouchSensor DEF='MovieTouchHighDefinition' description='click to start'/>
<ROUTE fromNode='MovieTouchHighDefinition' fromField='touchTime' toNode='X3dQuipMovieHighDefinition' toField='startTime'/>
</Group>
<!-- Launch movie into external browser -->
<Transform translation='6 -3 0'>
<Viewpoint description='Image #6 launches movie externally, standard aspect ratio' position='0 0 5' retainUserOffsets='false'/>
<Anchor description='Click to launch in external browser' parameter='target=_blank'
  url=' "X3dQuipBrutzmanH264MPEG1Mash.mpg" "X3dQuipBrutzmanH264.mov" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanH264MPEG1Mash.mpg" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanH264.mov" '>
<Shape>
<IndexedFaceSet USE='Quadrilateral480x270'/>
<Appearance>
<ImageTexture repeatS='false' repeatT='false'
  url=' "X3dQuipBrutzmanH264InitialFrame.png" "X3dQuipBrutzmanH264InitialFrame.gif" "X3dQuipBrutzmanH264InitialFrame.jpg" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanH264InitialFrame.png" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanH264InitialFrame.gif" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures/X3dQuipBrutzmanH264InitialFrame.jpg" '/>
</Appearance>
</Shape>
</Anchor>
</Transform>
<Transform DEF='Backdrop' translation='0 0 -3'>
<Shape>
<Box size='22 16 0.5'/>
<Appearance>
<Material diffuseColor='0 0.501961 0.27451'/>
</Appearance>
</Shape>
</Transform>
</Scene>
</X3D>
<!--
