<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Interchange' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='title' content='ColorPerVertexExamples.x3d'/>
<meta name='description' content='Geometry Polygons Nodes: Color, Coordinate, IndexedFaceSet, IndexedLineSet, PointSet'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='created' content='5 September 2005'/>
<meta name='modified' content='11 May 2021'/>
<meta name='Image' content='ColorPerVertexExamples.png'/>

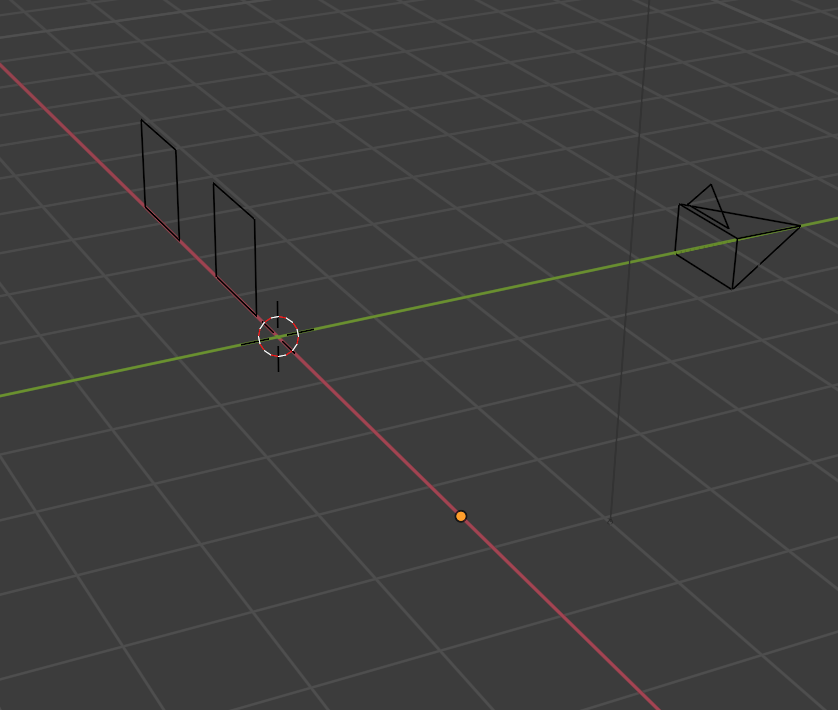

<meta name=' TODO ' content=' Blender import problems '/>
<meta name='Image' content='ColorPerVertexExamplesBlender.png'/>

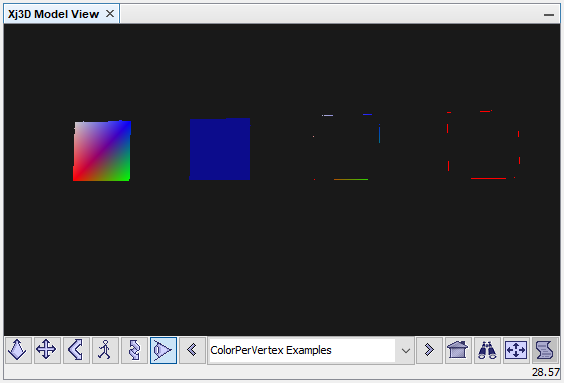

<meta name=' TODO ' content=' Xj3D rendering problems '/>
<meta name='Image' content='ColorPerVertexExamplesXj3D.png'/>
<meta name='reference' content=' https://www.web3d.org/x3d/tooltips/X3dTooltips.html#IndexedFaceSet '/>
<meta name='reference' content=' https://www.web3d.org/x3d/tooltips/X3dTooltips.html#IndexedLineSet '/>
<meta name='reference' content=' https://www.web3d.org/x3d/tooltips/X3dTooltips.html#Coordinate '/>
<meta name='reference' content=' https://www.web3d.org/x3d/tooltips/X3dTooltips.html#Color '/>
<meta name='rights' content='Copyright (c) 2005, Daly Realism and Don Brutzman'/>
<meta name='identifier' content=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter06GeometryPointsLinesPolygons/ColorPerVertexExamples.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
Index for DEF nodes : FourColors, FourColorsRGBA, FourPoints
Index for Viewpoint image : Viewpoint_1
-->
<Scene>
<WorldInfo title='ColorPerVertexExamples.x3d'/>
<Viewpoint description='ColorPerVertex Examples' position='0 0 6'/>
<Background groundColor='0.1 0.1 0.1' skyColor='0.1 0.1 0.1'/>
<Transform translation='-0.5 0 0'>
<Transform translation='-3 0 0'>
<Shape>
<!-- Default settings: colorPerVertex='true' and solid='true' (single-sided polygon) -->
<IndexedFaceSet colorIndex='0 1 2 3 0 -1' coordIndex='0 1 2 3 0 -1'>
<Coordinate DEF='FourPoints' point='0 0 0 1 0 0 1 1 0 0 1 0'/>
<Color DEF='FourColors' color='1 0 0 0 1 0 0 0 1 0.8 0.8 0.8'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform translation='-1 0 0'>
<Shape>
<!-- Non-default settings: colorPerVertex='false' and solid='false' (double-sided polygon) -->
<IndexedFaceSet colorPerVertex='false' solid='false' colorIndex='2' coordIndex='0 1 2 3 0 -1'>
<!-- Note that only 4 points are needed to create a 4-vertex polygon. -->
<Coordinate USE='FourPoints'/>
<ColorRGBA DEF='FourColorsRGBA' color='1 0 0 1 0 1 0 1 0 0 1 0.5 0.8 0.8 0.8 0'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform translation='1 0 0'>
<Shape>
<!-- Student TODO: try different color indices. -->
<IndexedLineSet colorIndex='0 1 2 3 0 -1' coordIndex='0 1 2 3 0 -1'>
<Coordinate USE='FourPoints'/>
<Color USE='FourColors'/>
</IndexedLineSet>
</Shape>
</Transform>
<Transform translation='3 0 0'>
<Shape>
<!-- Note that 5 points are needed to create 4 complete line segments. -->
<IndexedLineSet colorPerVertex='false' colorIndex='0' coordIndex='0 1 2 3 0 -1'>
<Coordinate USE='FourPoints'/>
<Color USE='FourColors'/>
</IndexedLineSet>
</Shape>
</Transform>
</Transform>
</Scene>
</X3D>
<!--
