<meta name='title' content='PositionOrientationInterpolatorsExample.x3d'/>
<meta name='description' content='Demonstrate use of PositionInterpolator and OrientationInterpolator to animate object motion.'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='created' content='29 January 2008'/>
<meta name='modified' content='8 March 2008'/>
<meta name='reference' content=' http://X3dGraphics.com '/>
<meta name='reference' content=' http://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rights' content='Copyright Don Brutzman and Leonard Daly 2007'/>
<meta name='subject' content=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifier' content=' http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter07-EventAnimationInterpolation/PositionOrientationInterpolatorsExample.x3d '/>
<meta name='generator' content='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content='../license.html'/>

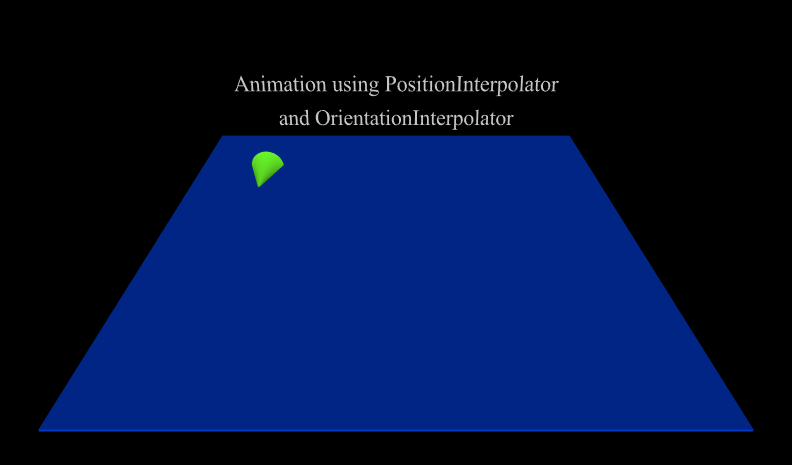

<Viewpoint description='Animation demo' orientation='1 0 1 -0.2' position='0 4 10'/>

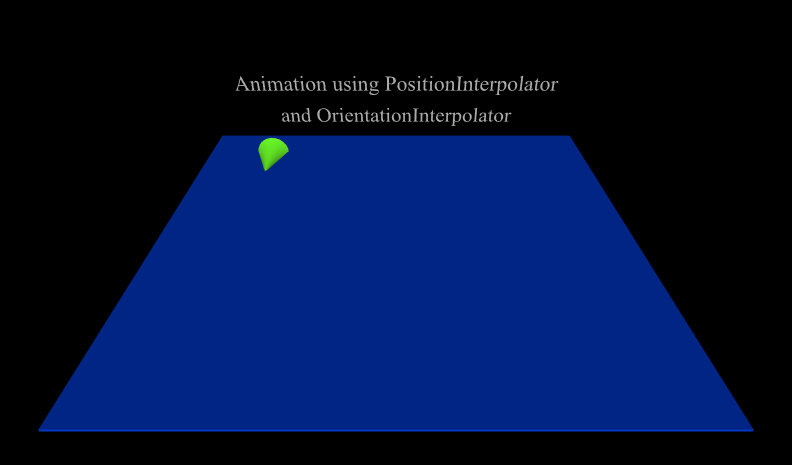

<Viewpoint centerOfRotation='0 0.1 0' description='View from above' orientation='1 0 1 -1.57' position='0 20 0'/>
<!-- Pointer ROUTEs:  [from PositionAnimator.value_changed to set_translation ] [from OrientationAnimator.value_changed to set_rotation ] -->
<Transform DEF='Pointer' translation='1 0 1'> </Transform>
<Shape DEF='Floor'> </Shape>
<!-- note that final value equals first value in keyValue array in order to support smooth looping -->
<!-- first drive around the location -->
<!-- PositionAnimator ROUTEs:  [from AnimationClock.fraction_changed to set_fraction ] [from value_changed to Pointer.set_translation ] -->
<PositionInterpolator DEF='PositionAnimator' key='0 0.2 0.25 0.45 0.5 0.7 0.75 0.95 1' keyValue='-4 0 -4 -4 0 4 -4 0 4 4 0 4 4 0 4 4 0 -4 4 0 -4 -4 0 -4 -4 0 -4'/>
<ROUTE fromNode='PositionAnimator' fromField='value_changed' toNode='Pointer' toField='set_translation'/>
<!-- then rotate the pointer to match next direction while paused at each position -->
<!-- OrientationAnimator ROUTEs:  [from AnimationClock.fraction_changed to set_fraction ] [from value_changed to Pointer.set_rotation ] -->
<OrientationInterpolator DEF='OrientationAnimator' key='0 0.2 0.25 0.45 0.5 0.7 0.75 0.95 1' keyValue='0 1 0 0 0 1 0 0 0 1 0 1.57 0 1 0 1.57 0 1 0 3.14 0 1 0 3.14 0 1 0 4.71 0 1 0 4.71 0 1 0 6.283'/>
<!-- final rotation value is 2pi rather than 0 so that rotation animation is smooth, not flip-flopping -->
<ROUTE fromNode='OrientationAnimator' fromField='value_changed' toNode='Pointer' toField='set_rotation'/>
<!-- put TimeSensor clock last so that animation design pattern and ROUTE events flow upward -->
<!-- AnimationClock ROUTEs:  [from fraction_changed to PositionAnimator.set_fraction ] [from fraction_changed to OrientationAnimator.set_fraction ] -->
<TimeSensor DEF='AnimationClock' cycleInterval='10' loop='true'/>
<ROUTE fromNode='AnimationClock' fromField='fraction_changed' toNode='PositionAnimator' toField='set_fraction'/>
<ROUTE fromNode='AnimationClock' fromField='fraction_changed' toNode='OrientationAnimator' toField='set_fraction'/>
<!-- notice that explanatory Text is placed later in scene although it is graphically located above driving plane -->
<Transform translation='0 3.5 0'> </Transform>
