SphereSensor-Lefty.x3d (X3dToXhtml)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.1//EN"   "http://www.web3d.org/specifications/x3d-3.1.dtd">

<X3D profile='Immersive' version='3.1' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation=' http://www.web3d.org/specifications/x3d-3.1.xsd '>

<head>

<meta name='title' content='SphereSensor-Lefty.x3d'/>
<meta name='description' content='Using a SphereSensor, Lefty shark can be oriented in any direction.'/>
<meta name='creator' content='Leonard Daly and Don Brutzman'/>
<meta name='created' content='10 June 2006'/>
<meta name='modified' content='10 February 2008'/>
<meta name='reference' content=' http://X3dGraphics.com '/>
<meta name='reference' content=' http://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rights' content='Copyright 2006, Leonard Daly and Don Brutzman'/>
<meta name='subject' content=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifier' content=' http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter08-UserInteractivity/SphereSensor-Lefty.x3d '/>
<meta name='generator' content='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content='../license.html'/>

</head>
<!--

Index for DEF nodes: OrientationControl, OrientationDisplay, ReOrient, Rotator

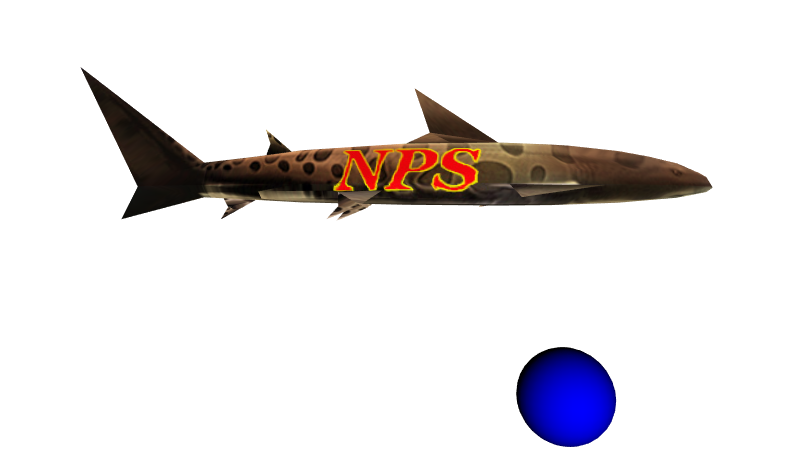

Index for Viewpoint image: Viewpoint_1

-->
<Scene>

<Background skyColor='1 1 1'/>
<Viewpoint description='Book View' orientation='0 -1 0 0.05' position='-0.06 -0.29 8.78'/>
<Transform DEF='OrientationControl' translation='2 -2 3'>

<SphereSensor DEF='Rotator' description='drag sphere to rotate Lefty'/>

<Transform DEF='OrientationDisplay'>

<Shape>

<Appearance>

<Material diffuseColor='0 0 1'/>

</Appearance>
<Sphere radius='.5'/>

</Shape>

</Transform>

</Transform>
<Transform translation='0 0 7'>

<Transform DEF='ReOrient'>

<Inline
url=' "../KelpForestExhibit/SharkLefty.x3d" "../KelpForestExhibit/SharkLefty.wrl" "http://X3dGraphics.com/examples/X3dForWebAuthors/KelpForestExhibit/SharkLefty.x3d" "http://X3dGraphics.com/examples/X3dForWebAuthors/KelpForestExhibit/SharkLefty.wrl" '/>

</Transform>

</Transform>
<ROUTE fromNode='Rotator' fromField='rotation_changed' toNode='OrientationDisplay' toField='rotation'/>
<ROUTE fromNode='Rotator' fromField='rotation_changed' toNode='ReOrient' toField='rotation'/>

</Scene>

</X3D>
<!--

Index for DEF nodes: OrientationControl, OrientationDisplay, ReOrient, Rotator
Index for Viewpoint image: Viewpoint_1

-->
