<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "http://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Interchange' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='DirectionalLight.x3d'/>
<meta name='description' content='An example of the DirectionalLight node showing no shadows on the lit geometry.'/>
<meta name='creator' content='Leonard Daly and Don Brutzman'/>
<meta name='created' content='24 April 2006'/>
<meta name='modified' content='20 October 2019'/>
<meta name='Image' content='DirectionalLightFigure.png'/>
<meta name='reference' content=' http://X3dGraphics.com '/>
<meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rights' content='Copyright 2006, Daly Realism and Don Brutzman'/>
<meta name='subject' content=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifier' content=' http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter11LightingEnvironmentalEffects/DirectionalLight.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

Index for DEF nodes : Arrow, ArrowApp, ArrowColor, ball, Box, hat, rod

Index for Viewpoint image : Viewpoint_1

-->
<Scene>

<WorldInfo title='DirectionalLight.x3d'/>
<Background skyColor='1 1 1' transparency='0'/>

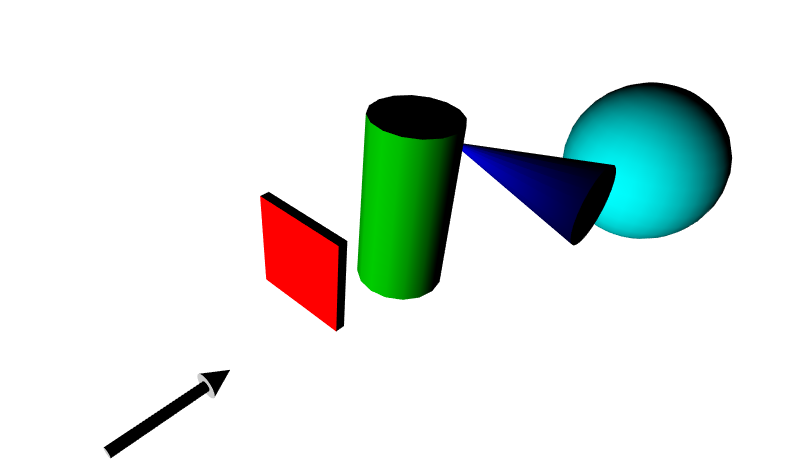

<Viewpoint description='Book Viewpoint' orientation='0.627 -0.707 -0.326 -0.93' position='6.03 6.69 9.25'/>
<NavigationInfo headlight='false'/>
<DirectionalLight/>
<Transform translation='0 1.5 7' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Group DEF='Arrow' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Transform rotation='1 0 0 1.57' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Shape bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Appearance DEF='ArrowApp'>

<Material DEF='ArrowColor'/>

</Appearance>
<Cylinder radius='.1'/>

</Shape>

</Transform>
<Transform rotation='1 0 0 -1.57' translation='0 0 -1' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Shape bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Appearance USE='ArrowApp'/>
<Cone bottomRadius='.25' height='.5' side='true' bottom='true' solid='true'/>

</Shape>

</Transform>

</Group>

</Transform>
<Transform translation='0 .5 7' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Group USE='Arrow' bboxCenter='0 0 0' bboxSize='-1 -1 -1'/>

</Transform>
<Transform translation='0 -.5 7' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Group USE='Arrow' bboxCenter='0 0 0' bboxSize='-1 -1 -1'/>

</Transform>
<Transform translation='0 -1.5 7' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Group USE='Arrow' bboxCenter='0 0 0' bboxSize='-1 -1 -1'/>

</Transform>
<Transform bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Transform DEF='Box' translation='0 0 4' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Shape bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Appearance>

<Material diffuseColor='1 0 0'/>

</Appearance>
<Box size='2 2 .2' solid='true'/>

</Shape>

</Transform>
<Transform DEF='rod' translation='0 0 1' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Shape bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Appearance>

<Material diffuseColor='0 .8 0'/>

</Appearance>
<Cylinder height='4'/>

</Shape>

</Transform>
<Transform DEF='hat' rotation='0 0 1 1.57' translation='1 0 -2' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Shape bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Appearance>

<Material diffuseColor='0 0 1'/>

</Appearance>
<Cone height='4' bottomRadius='1' side='true' bottom='true' solid='true'/>

</Shape>

</Transform>
<Transform DEF='ball' translation='3 0 -5' bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Shape bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Appearance>

<Material diffuseColor='0 1 1'/>

</Appearance>
<Sphere radius='2'/>

</Shape>

</Transform>

</Transform>

</Scene>

</X3D>
<!--
