X3D Example Archives: X3D for Web Authors, Chapter 11 Lighting Environmental Effects

[1] BackgroundColorsOnly.x3d Background colors view
Directory Viewpoint Slideshow
DirectionalLight Diagram

Light nodes make the appearance of geometry visible and viewable in a scene.

Lights illuminate geometry in a scene relative to the user's view. Lighting nodes include DirectionalLight, PointLight, SpotLight, and the active NavigationInfo headlight (which points along the user's viewing direction).

Environmental effects include Background, TextureBackground, Fog and LocalFog. Each set of light nodes, NavigationInfo nodes, background nodes and fog nodes are bound on a separate binding stack, meaning that only one of each can be active at a time.

The supporting Chapter 11 slideset and course videos (NPS, YouTube) for X3D for Web Authors are available online via X3dGraphics.com.

15 X3D Models                 41 X3D Model Viewpoint Snapshots

BackgroundColorsOnly
Background Colors Only.x3d

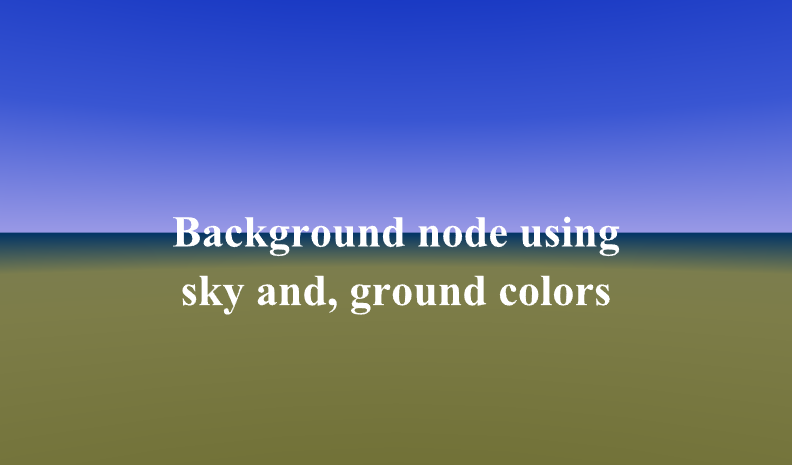

[1] BackgroundColorsOnly.x3d Background colors view
[2] BackgroundColorsOnly.x3d (default X3D view from 0 0 10)

BackgroundImagesOnly
Background Images Only.x3d

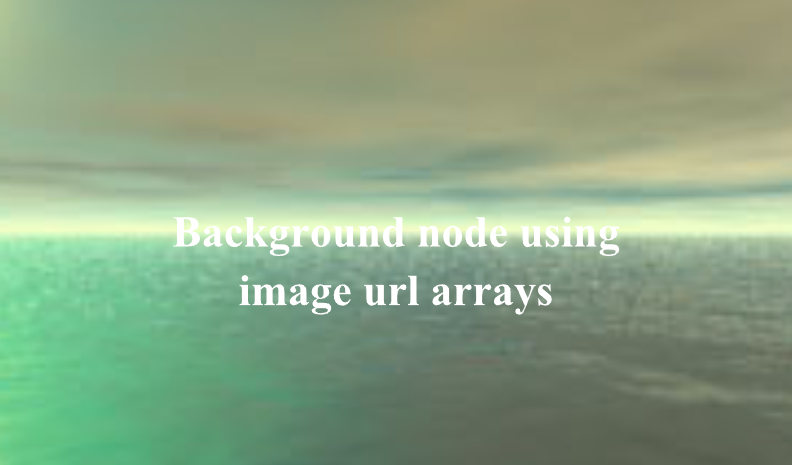

[3] BackgroundImagesOnly.x3d Background images view
[4] BackgroundImagesOnly.x3d (default X3D view from 0 0 10)

BackgroundKelpForestMain
Background Kelp Forest Main.x3d
[5] BackgroundKelpForestMain.x3d Kelp Forest Monterey Bay Aquarium

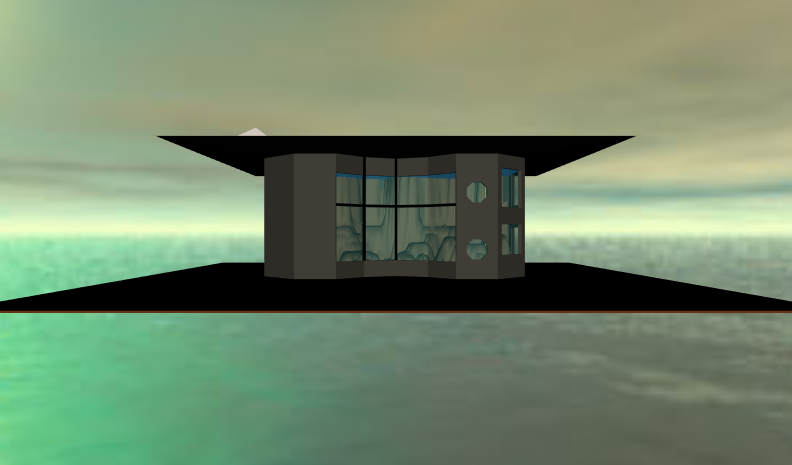

[6] BackgroundKelpForestMain.x3d Side Windows

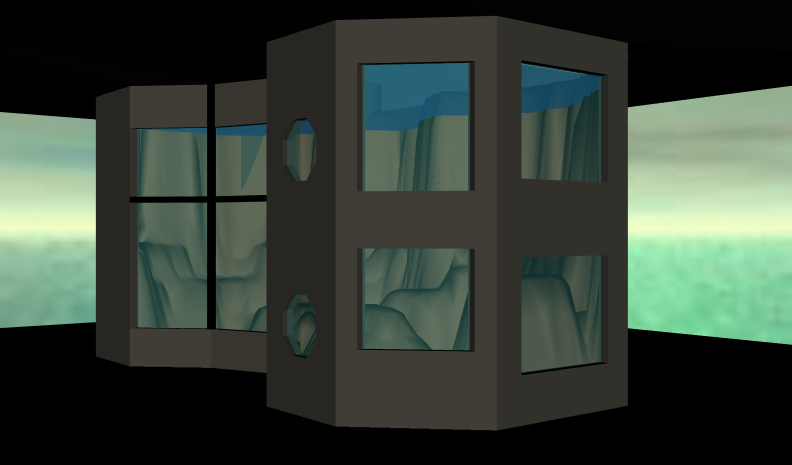

[7] BackgroundKelpForestMain.x3d Star Fish

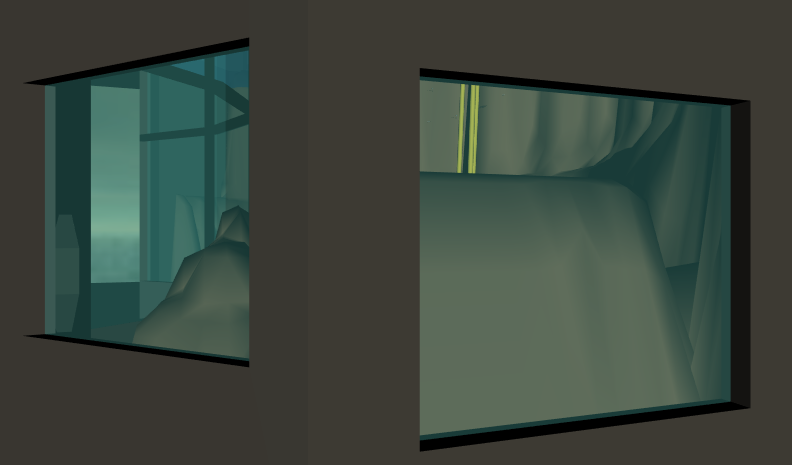

[8] BackgroundKelpForestMain.x3d Inside Tank
[9] BackgroundKelpForestMain.x3d Top floor
[10] BackgroundKelpForestMain.x3d Bird's Eye View

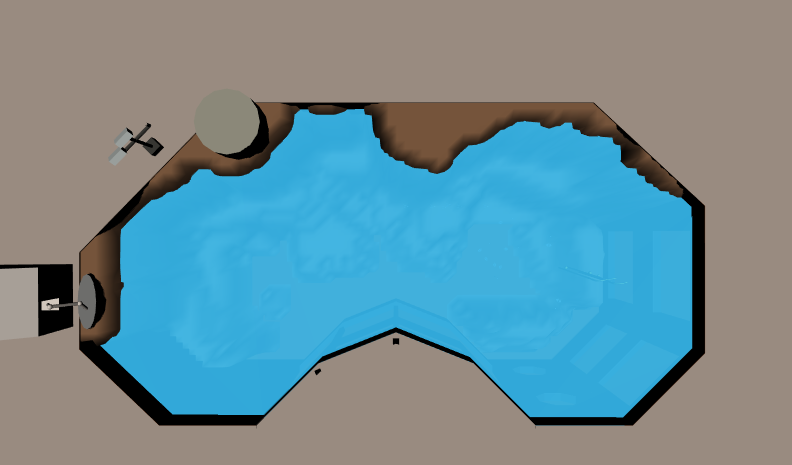

[11] BackgroundKelpForestMain.x3d Pump House

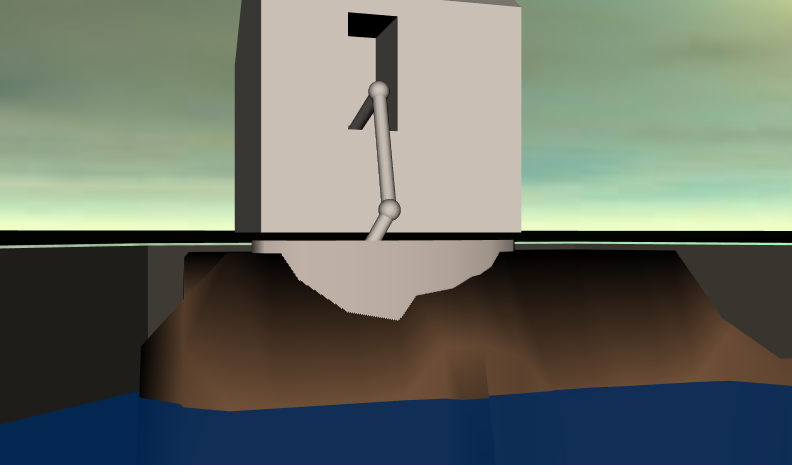

[12] BackgroundKelpForestMain.x3d (default X3D view from 0 0 10)

BackgroundSelector
Background Selector.x3d

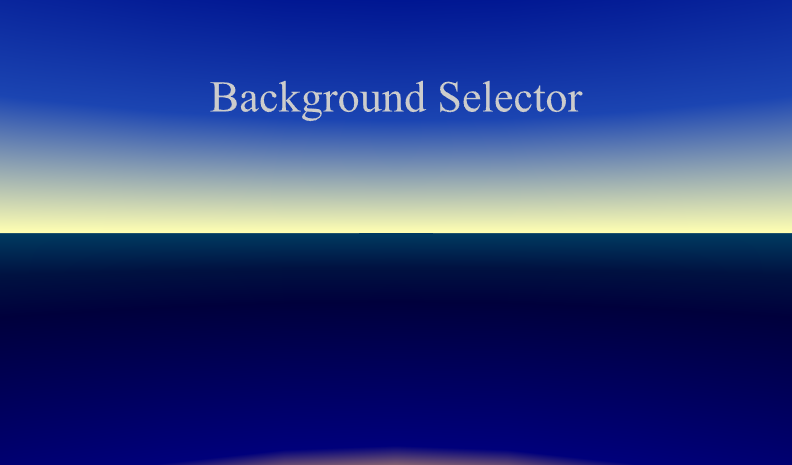

[13] BackgroundSelector.x3d (default X3D view from 0 0 10)

BackgroundSequencer
Background Sequencer.x3d

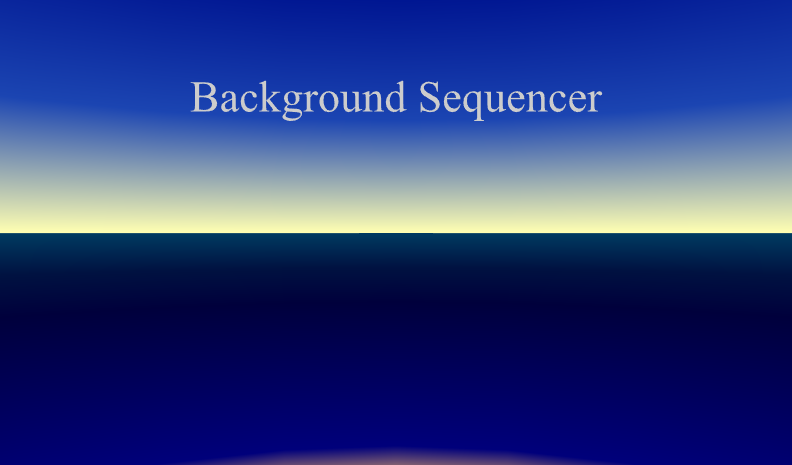

[14] BackgroundSequencer.x3d (default X3D view from 0 0 10)

BackgroundTimeOfDay
Background Time Of Day.x3d
[15] BackgroundTimeOfDay.x3d (default X3D view from 0 0 10)

DirectionalLightExample
Directional Light Example.x3d

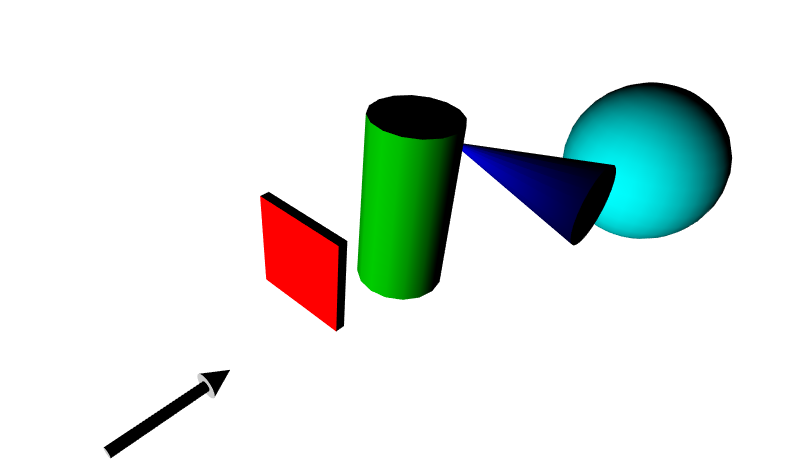

[16] DirectionalLightExample.x3d Book Viewpoint
[17] DirectionalLightExample.x3d (default X3D view from 0 0 10)

FogKelpForestMain
Fog Kelp Forest Main.x3d
[18] FogKelpForestMain.x3d Kelp Forest Monterey Bay Aquarium

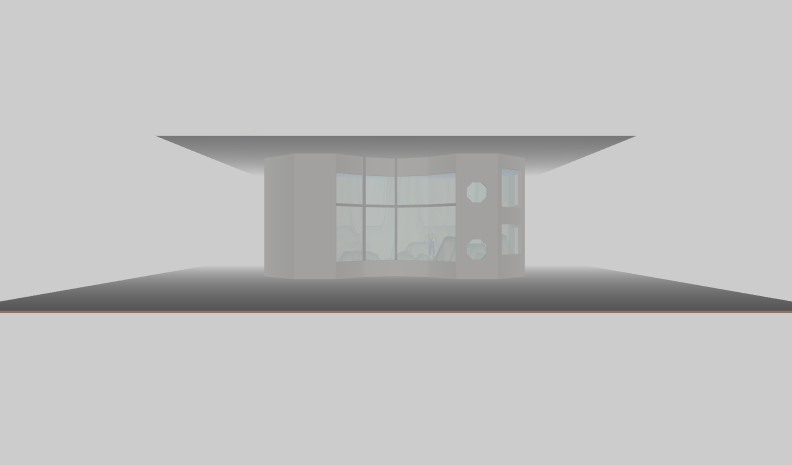

[19] FogKelpForestMain.x3d Side Windows

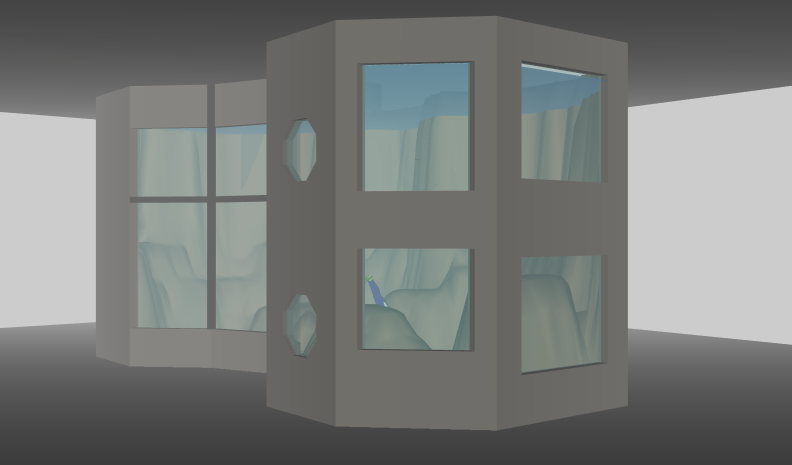

[20] FogKelpForestMain.x3d Star Fish

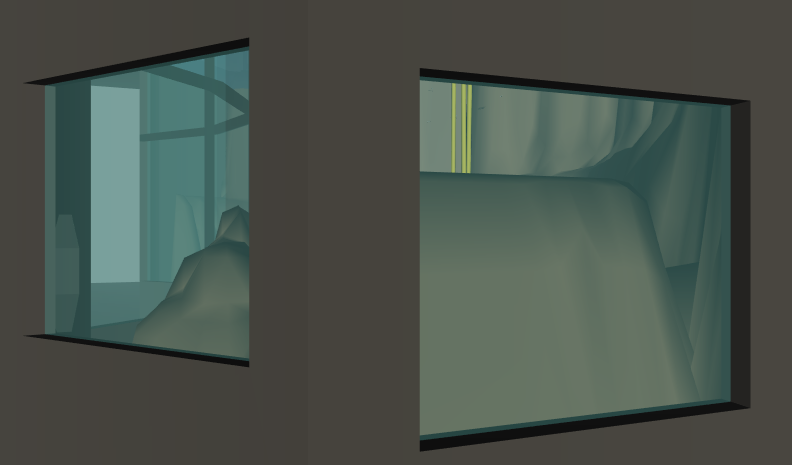

[21] FogKelpForestMain.x3d Inside Tank
[22] FogKelpForestMain.x3d Top floor
[23] FogKelpForestMain.x3d Bird's Eye View

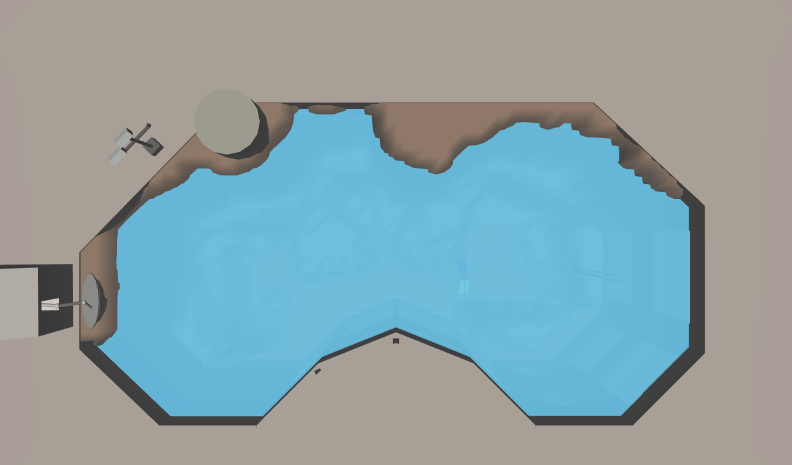

[24] FogKelpForestMain.x3d Pump House

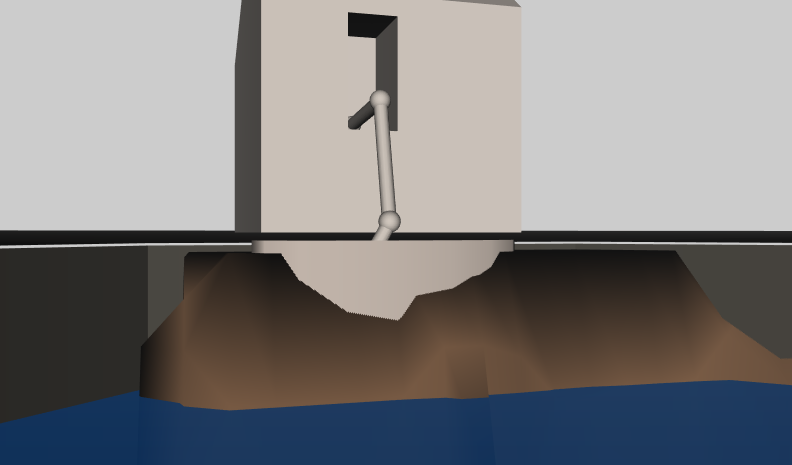

[25] FogKelpForestMain.x3d (default X3D view from 0 0 10)

PointLightColor
Point Light Color.x3d
[26] PointLightColor.x3d Book Viewpoint
[27] PointLightColor.x3d (default X3D view from 0 0 10)

PointLightExample
Point Light Example.x3d

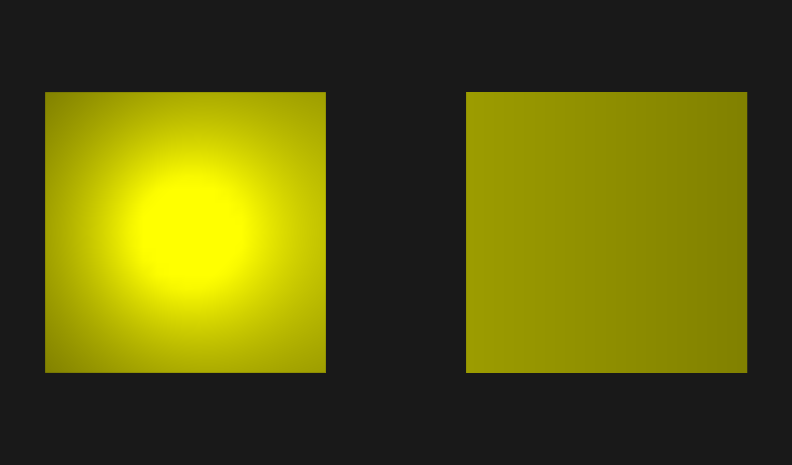

[28] PointLightExample.x3d Common viewpoint
[29] PointLightExample.x3d Faceted box, smooth shading

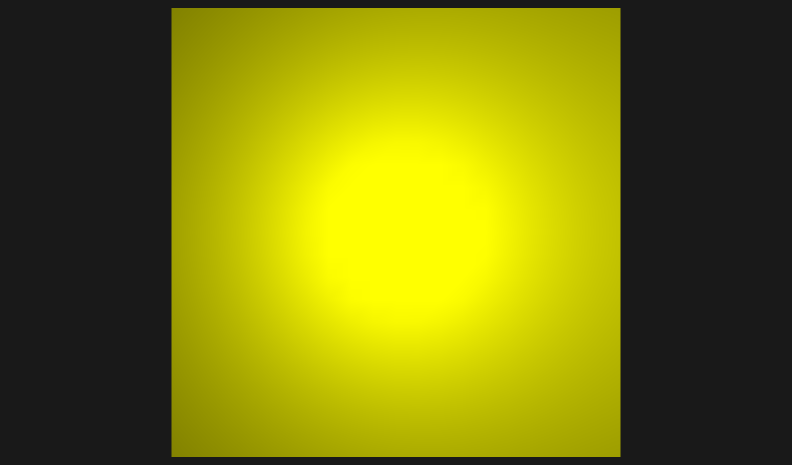

[30] PointLightExample.x3d Simple box, constant shading

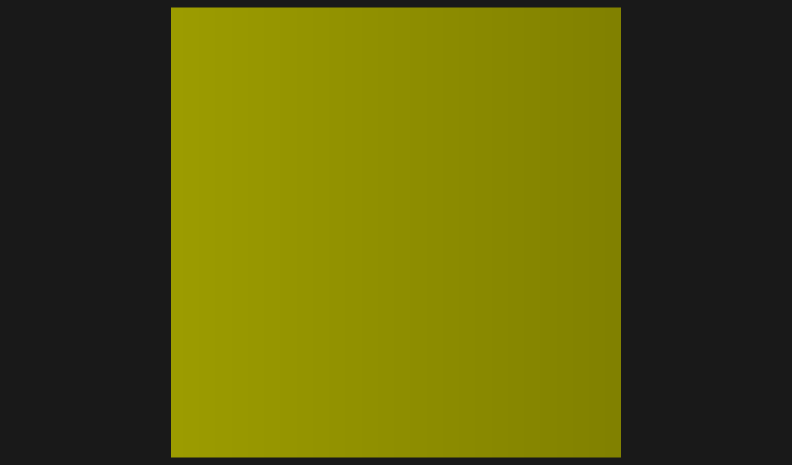

[31] PointLightExample.x3d (default X3D view from 0 0 10)

SpotLightColor
Spot Light Color.x3d
[32] SpotLightColor.x3d Book Viewpoint

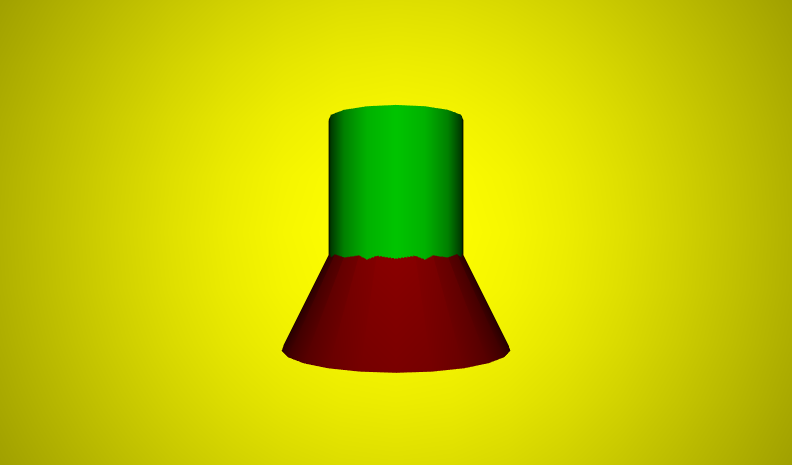

[33] SpotLightColor.x3d Complete scene

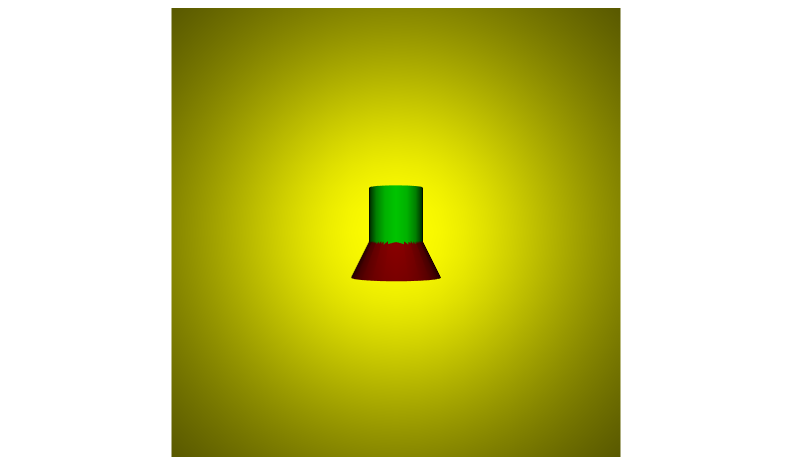

[34] SpotLightColor.x3d (default X3D view from 0 0 10)

SpotLightExample
Spot Light Example.x3d
[35] SpotLightExample.x3d Book Viewpoint

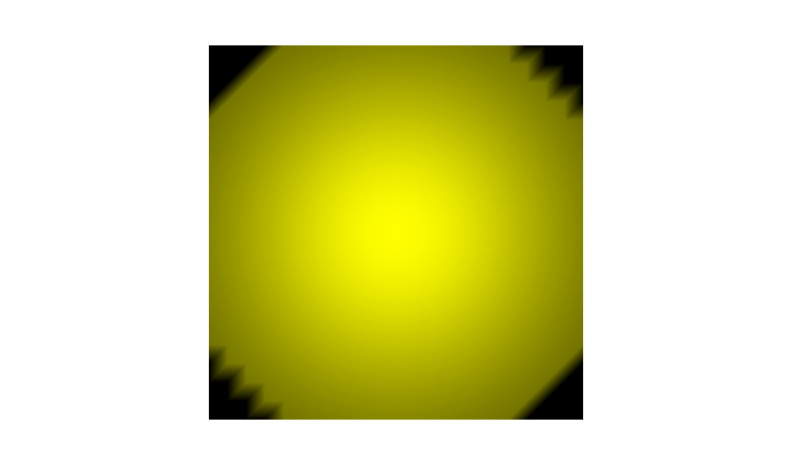

[36] SpotLightExample.x3d (default X3D view from 0 0 10)

SpotLightVisualization
Spot Light Visualization.x3d

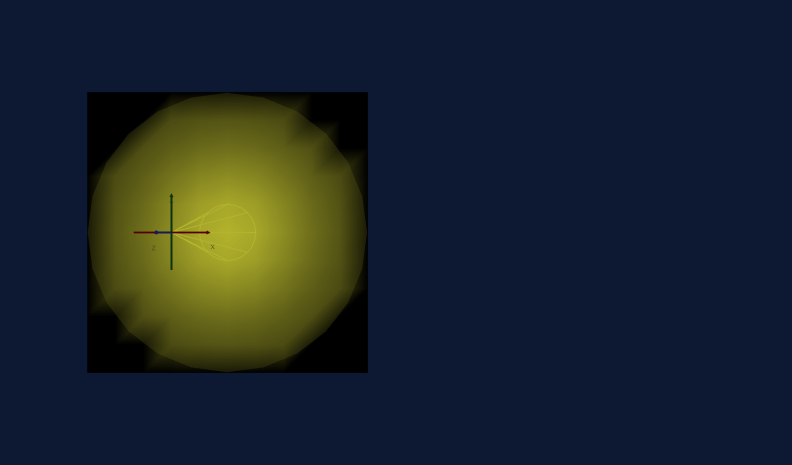

[37] SpotLightVisualization.x3d Two examples of a single SpotLight

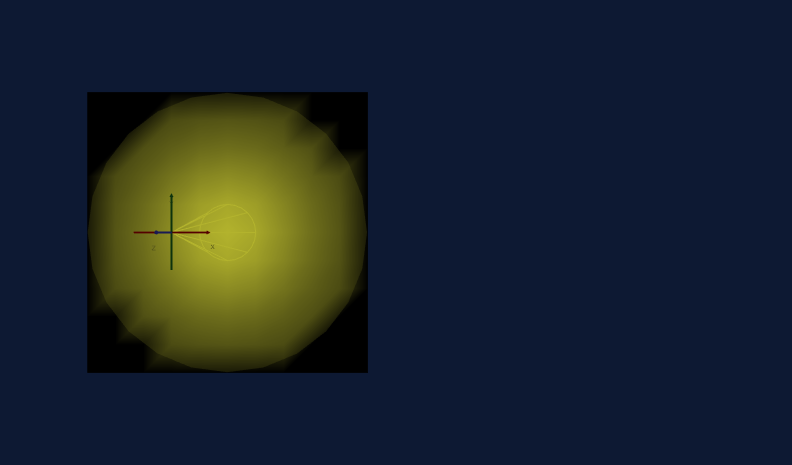

[38] SpotLightVisualization.x3d View from above
[39] SpotLightVisualization.x3d View from behind DirectionalLight

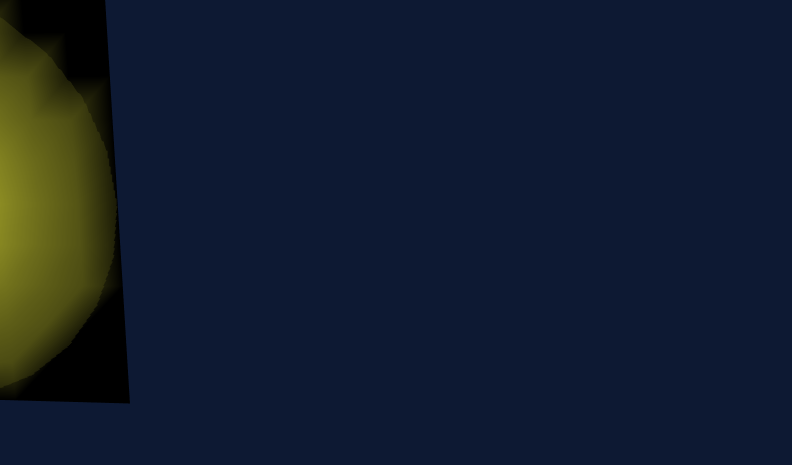

[40] SpotLightVisualization.x3d View from behind SpotLight
[41] SpotLightVisualization.x3d Side view of SpotLight outline

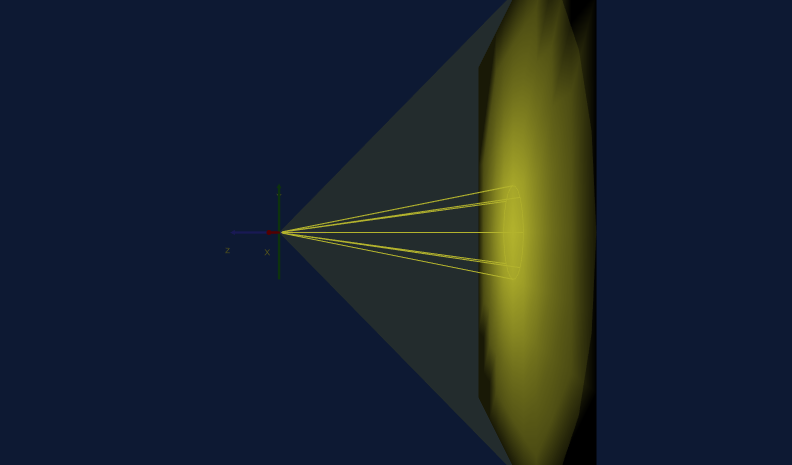

[42] SpotLightVisualization.x3d (default X3D view from 0 0 10)

TextureBackgroundExample
Texture Background Example.x3d
[43] TextureBackgroundExample.x3d (default X3D view from 0 0 10)

TextureBackgroundKelpForestMain
Texture Background Kelp Forest Main.x3d
[44] TextureBackgroundKelpForestMain.x3d Kelp Forest Monterey Bay Aquarium

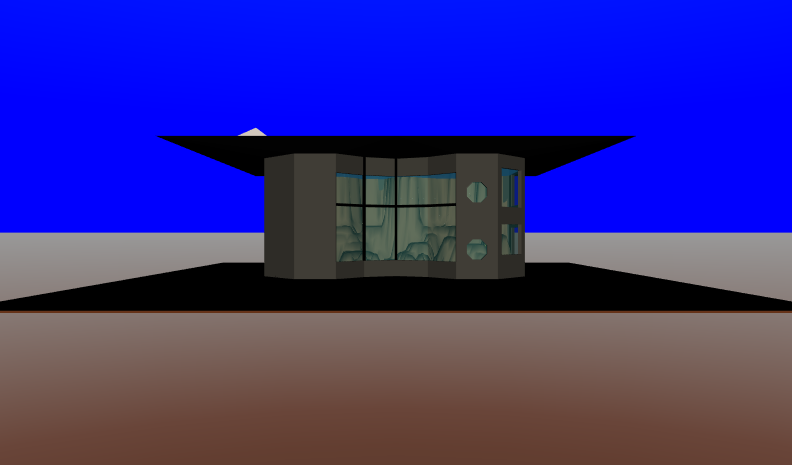

[45] TextureBackgroundKelpForestMain.x3d Side Windows

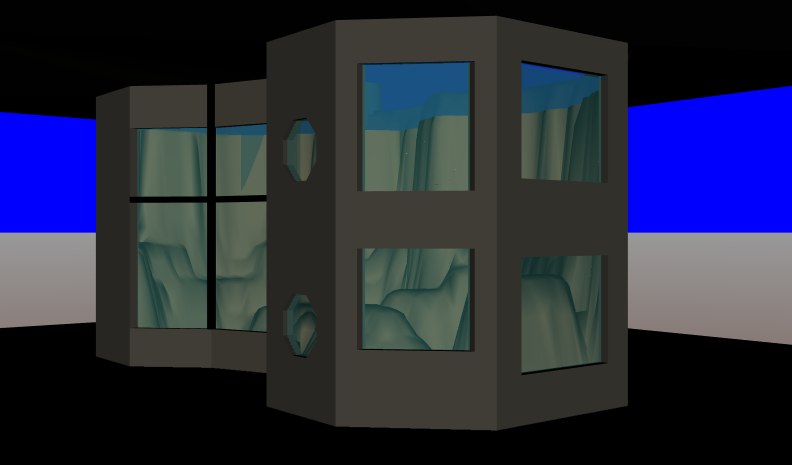

[46] TextureBackgroundKelpForestMain.x3d Star Fish

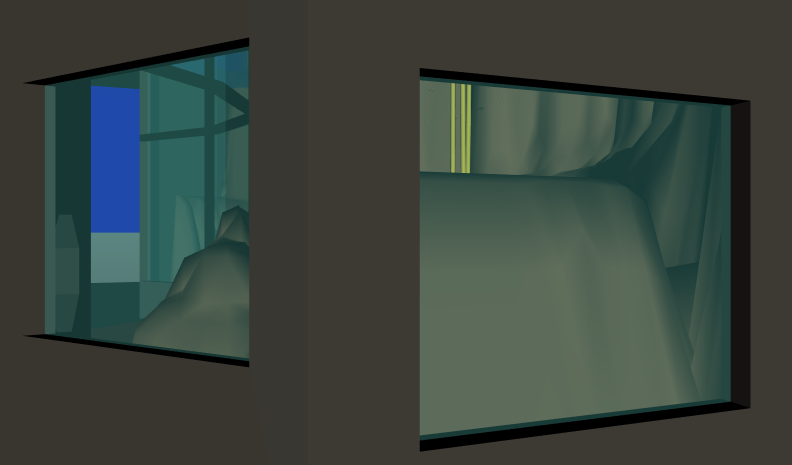

[47] TextureBackgroundKelpForestMain.x3d Inside Tank

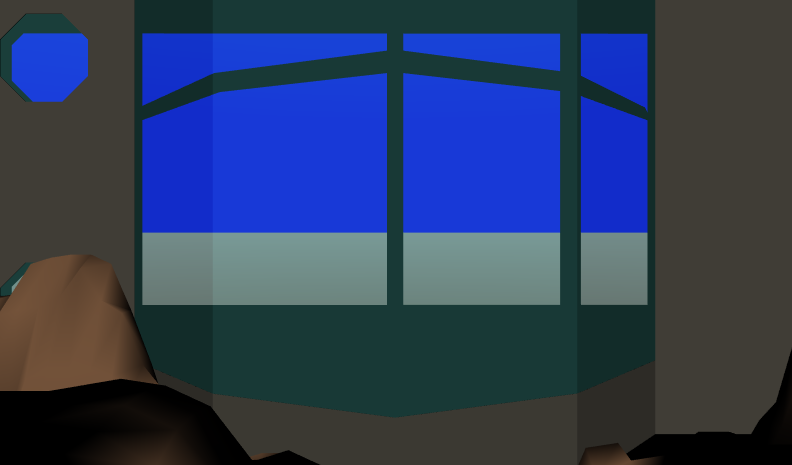

[48] TextureBackgroundKelpForestMain.x3d Top floor
[49] TextureBackgroundKelpForestMain.x3d Bird's Eye View

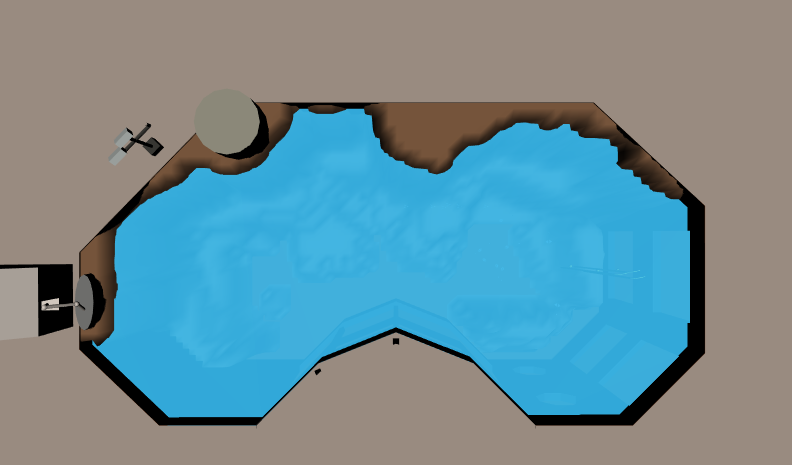

[50] TextureBackgroundKelpForestMain.x3d Pump House

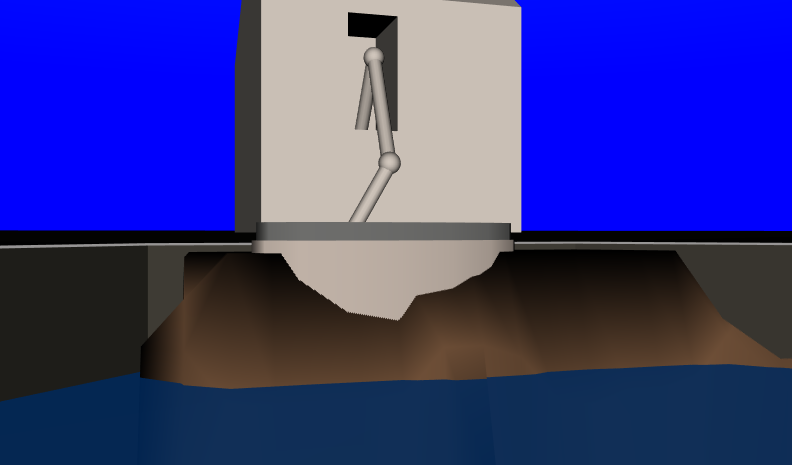

[51] TextureBackgroundKelpForestMain.x3d (default X3D view from 0 0 10)
