<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.1//EN"   "http://www.web3d.org/specifications/x3d-3.1.dtd">
<X3D profile='Immersive' version='3.1' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation=' http://www.web3d.org/specifications/x3d-3.1.xsd '>
<head>
<meta name='title' content='SummaryTriangleSets.x3d'/>
<meta name='description' content='A collection of example usage for all Triangle*Set nodes.'/>
<meta name='created' content='22 May 2006'/>
<meta name='modified' content='31 August 2008'/>
<meta name='reference' content=' http://X3dGraphics.com '/>
<meta name='reference' content=' http://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rights' content='Copyright 2006, Daly Realism and Don Brutzman'/>
<meta name='subject' content=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifier' content=' http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter13-GeometryTrianglesQuadrilaterals/SummaryTriangleSets.x3d '/>
<meta name='generator' content='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content='../license.html'/>
</head>
<!--
Index for DEF nodes: Colors, Points

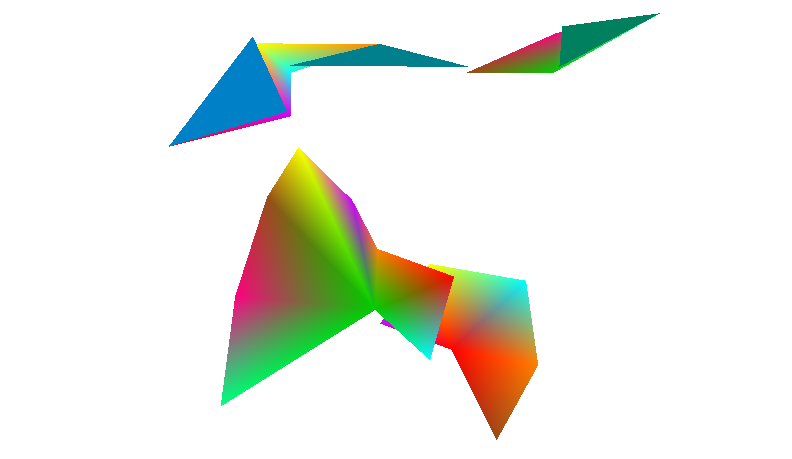

Index for Viewpoint image: Viewpoint_1
-->
<Scene>
<Viewpoint description='Book View' orientation='0 -1 0 0.01' position='0.27 -0.59 13.7'/>
<Background skyColor='1 1 1'/>
<Transform>
<Shape>
<Appearance>
<Material diffuseColor='0 0 1' emissiveColor='0 .5 0' shininess='.8' specularColor='.5 0 0'/>
</Appearance>
<IndexedTriangleSet index='0 1 2 3 4 5 6 7 8' solid='false' ccw='true' colorPerVertex='true' normalPerVertex='true' containerField='geometry'>
<Coordinate DEF='Points' point='-4 1 3 -2 2 1.5 -3 4 0.5 -2 3 1.5 0 4 0.0 2 3 1.5 5 5 -1.5 4 3 1.5 6 4 2.0 -4 1 3 -2 2 1.0 -3 4 0.0 -2 3 1.0 0 4 0.0 2 3 1.0 5 5 -2.0 4 3 1.0 6 4 2.0 0 -2 4 1 -3 3.5 1.5 -1.5 3 0 -1 2 -.5 0 2.5 -1.5 1 3 -2 0 3.5 -3 -2 2 -3 -4 3 2 -4 -2 0 -3 -.5 1.3 -1.5 -1 4 -2 -1.5 4.2 -4.2 -1 3 -6 -.5'/>
<Color DEF='Colors' color='0 .8 0 0 1 1 1 0 0 1 .5 0 .8 0 1 1 1 0 .6 .3 .1 1 0 .5 0 1 .5 1 0 0 .8 0 1 1 1 0 0 1 1 1 .5 0 .6 .3 .1 1 0 .5 0 .8 0 0 1 .5 0 .8 0 0 1 1 1 0 0 1 .5 0 .8 0 1 1 1 0 .6 .3 .1 1 0 .5 0 1 .5 1 0 0 .8 0 1 1 1 0 0 1 1 1 .5 0 .6 .3 .1 1 0 .5 0 .8 0 0 1 .5'/>
</IndexedTriangleSet>
</Shape>
<Shape>
<IndexedTriangleStripSet index='9 10 11 12 13 -1 14 15 16 17 -1' solid='false' ccw='true' colorPerVertex='true' normalPerVertex='true' containerField='geometry'>
<Coordinate USE='Points'/>
<Color USE='Colors'/>
</IndexedTriangleStripSet>
</Shape>
<Shape>
<IndexedTriangleFanSet index='18 19 20 21 22 23 24 25 26 -1 27 28 29 30 31 32 -1' solid='false' ccw='true' colorPerVertex='true' normalPerVertex='true' containerField='geometry'>
<Coordinate USE='Points'/>
<Color USE='Colors'/>
</IndexedTriangleFanSet>
</Shape>
</Transform>
</Scene>
</X3D>
<!--
