TriangleStripSet.x3d (X3dToXhtml)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.1//EN"   "http://www.web3d.org/specifications/x3d-3.1.dtd">

<X3D profile='Interchange' version='3.1' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation=' http://www.web3d.org/specifications/x3d-3.1.xsd '>

<head>

<meta name='title' content='TriangleStripSet.x3d'/>
<meta name='description' content='A simple example of the use of the TriangleStripSet node.'/>
<meta name='created' content='22 May 2006'/>
<meta name='modified' content='12 November 2008'/>
<meta name='creator' content='Leonard Daly and Don Brutzman'/>
<meta name='reference' content=' http://X3dGraphics.com '/>
<meta name='reference' content=' http://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rights' content='Copyright 2006, Daly Realism and Don Brutzman'/>
<meta name='subject' content=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifier' content=' http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter13-GeometryTrianglesQuadrilaterals/TriangleStripSet.x3d '/>
<meta name='generator' content='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content='../license.html'/>

</head>
<!--

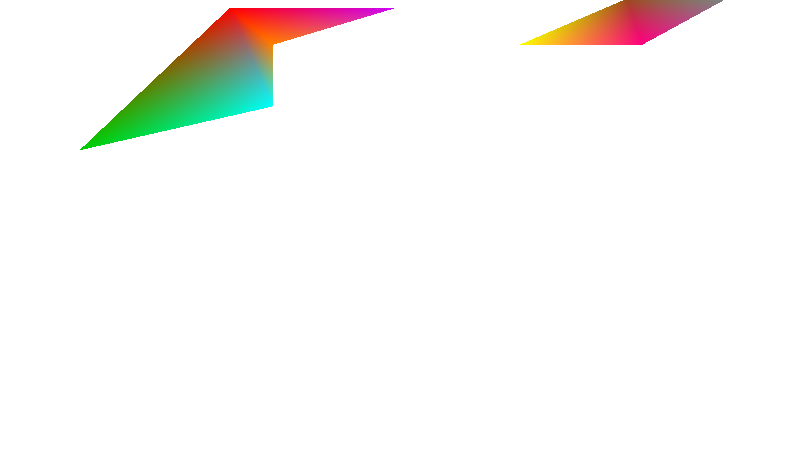

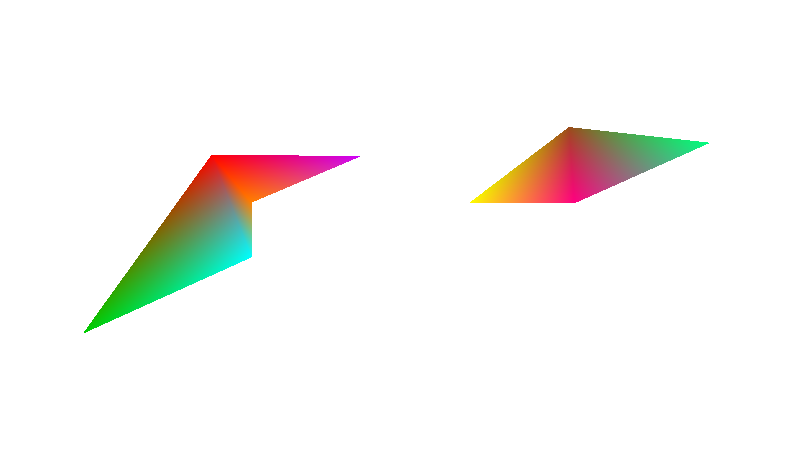

Index for Viewpoint images: Viewpoint_1, Viewpoint_2

-->
<Scene>

<Viewpoint description='Initial'/>
<Viewpoint description='Book View' orientation='0 -1 0 0.05' position='0.13 2.51 11.24'/>
<Background skyColor='1 1 1'/>
<Transform>

<Shape>

<TriangleStripSet ccw='true' solid='false' stripCount='5 4' colorPerVertex='true' normalPerVertex='true' containerField='geometry'>

<Coordinate point='-4 1 3 -2 2 1 -3 4 0 -2 3 1 0 4 0 2 3 1 5 5 -2 4 3 1 6 4 2'/>
<Color color='0 .8 0 0 1 1 1 0 0 1 .5 0 .8 0 1 1 1 0 .6 .3 .1 1 0 .5 0 1 .5'/>

</TriangleStripSet>

</Shape>

</Transform>

</Scene>

</X3D>
<!--

Index for Viewpoint images: Viewpoint_1, Viewpoint_2

-->
