IndexedTriangleFanSet.x3d (X3dToXhtml listing)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "http://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Interchange' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='IndexedTriangleFanSet.x3d'/>
<meta name='description' content='A simple example of the use of the IndexedTriangleFanSet node.'/>
<meta name='created' content='22 May 2006'/>
<meta name='modified' content='20 October 2019'/>
<meta name='creator' content='Leonard Daly and Don Brutzman'/>
<meta name='reference' content=' http://X3dGraphics.com '/>
<meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rights' content='Copyright 2006, Daly Realism and Don Brutzman'/>
<meta name='subject' content=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifier' content=' http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter13GeometryTrianglesQuadrilaterals/IndexedTriangleFanSet.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

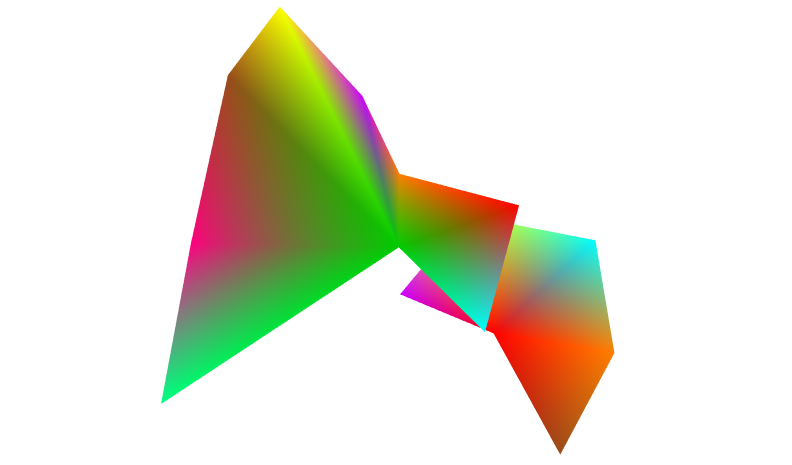

Index for Viewpoint image : Viewpoint_1

-->
<Scene>

<WorldInfo title='IndexedTriangleFanSet.x3d'/>
<Viewpoint description='Book View' orientation='0 1 0 0.01' position='0.03 -1.84 10.04'/>
<Background skyColor='1 1 1' transparency='0'/>
<Transform bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<Shape bboxCenter='0 0 0' bboxSize='-1 -1 -1'>

<IndexedTriangleFanSet ccw='true' colorPerVertex='true' index='18 19 20 21 22 23 24 25 26 -1 27 28 29 30 31 32 -1' normalPerVertex='true' solid='false' containerField='geometry'>

<Coordinate point='-4 1 3 -2 2 1.5 -3 4 0.5 -2 3 1.5 0 4 0.0 2 3 1.5 5 5 -2.5 4 3 1.5 6 4 2.0 -4 1 3 -2 2 1.0 -3 4 0.0 -2 3 1.0 0 4 0.0 2 3 1.0 5 5 -2.0 4 3 1.5 6 4 2.0 0 -2 4 1 -3 3.5 1.5 -1.5 3 0 -1 2 -.5 0 2.5 -1.5 1 3 -2 0 3.5 -3 -2 2 -3 -4 3 2 -4 -2 0 -3 -.5 1.3 -1.5 -1 4 -2 -1.5 4.2 -4.2 -1 3 -6 -.5'/>
<Color color='0 .8 0 0 1 1 1 0 0 1 .5 0 .8 0 1 1 1 0 .6 .3 .1 1 0 .5 0 1 .5 1 0 0 .8 0 1 1 1 0 0 1 1 1 .5 0 .6 .3 .1 1 0 .5 0 .8 0 0 1 .5 0 .8 0 0 1 1 1 0 0 1 .5 0 .8 0 1 1 1 0 .6 .3 .1 1 0 .5 0 1 .5 1 0 0 .8 0 1 1 1 0 0 1 1 1 .5 0 .6 .3 .1 1 0 .5 0 .8 0 0 1 .5'/>

</IndexedTriangleFanSet>

</Shape>

</Transform>

</Scene>

</X3D>
<!--

Index for Viewpoint image : Viewpoint_1

-->
