<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "http://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Interchange' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='titlecontent='IndexedTriangleSet.x3d'/>
<meta name='descriptioncontent='A simple example of the use of the IndexedTriangleSet node.'/>
<meta name='createdcontent='22 May 2006'/>
<meta name='modifiedcontent='13 November 2008'/>
<meta name='creatorcontent='Leonard Daly and Don Brutzman'/>
<meta name='referencecontent=' http://X3dGraphics.com '/>
<meta name='referencecontent=' http://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rightscontent='Copyright 2006, Daly Realism and Don Brutzman'/>
<meta name='subjectcontent=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifiercontent=' http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter13GeometryTrianglesQuadrilaterals/IndexedTriangleSet.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!--

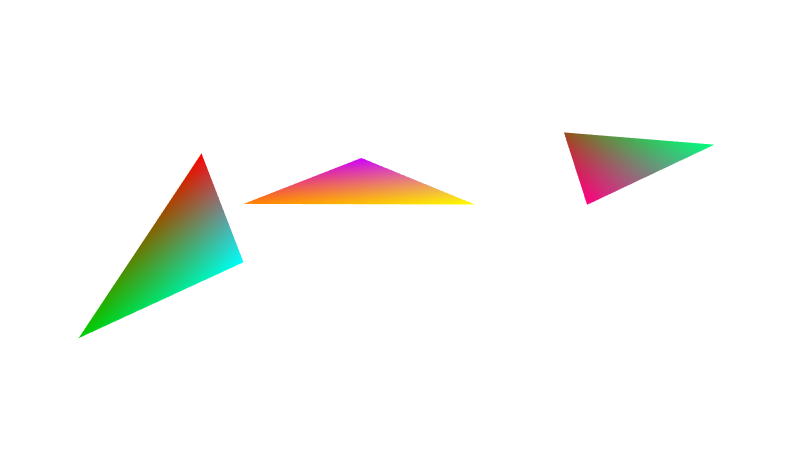

Index for Viewpoint image : Viewpoint_1
-->
<Scene>
<Viewpoint description='Book Vieworientation='0 -1 0 0.05position='0.13 2.51 11.24'/>
<Background skyColor='1 1 1'/>
<Transform>
<Shape>
<IndexedTriangleSet index='0 1 2 3 4 5 6 7 8solid='falseccw='truecolorPerVertex='truenormalPerVertex='truecontainerField='geometry'>
<Coordinate point='-4 1 3 -2 2 1.5 -3 4 0.5 -2 3 1.5 0 4 0 2 3 1.5 5 5 -2.5 4 3 1.5 6 4 2'/>
<Color color='0 0.8 0 0 1 1 1 0 0 1 0.5 0 0.8 0 1 1 1 0 0.6 0.3 0.1 1 0 0.5 0 1 0.5'/>
</IndexedTriangleSet>
</Shape>
</Transform>
</Scene>
</X3D>
<!--

Index for Viewpoint image : Viewpoint_1
-->

<!-- Color key: <X3dNode field='value'/> matches <XmlElement attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->

<!-- Additional help information about X3D scenes: X3D Resources, X3D Scene Authoring Hints and X3D Tooltips -->
