<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='title' content='MaterialModulatorExamples.x3d'/>
<meta name='description' content='Demonstrate multiple instances of an external prototype.'/>
<meta name='hint' content='Learning suggestion for authors: try changing the modulation script so that it goes from [0 ... 1] and then [1 ... 0] alternating, rather than abruptly shifting from 1 immediately back to 0.'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='created' content='7 September 2017'/>
<meta name='modified' content='20 October 2019'/>
<meta name='subject' content='X3D prototype instances DEF USE'/>
<meta name='Image' content='MaterialModulator.png'/>

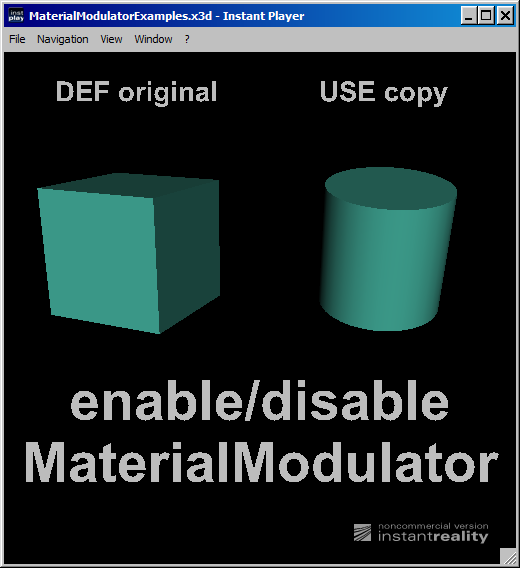

<meta name='Image' content='MaterialModulatorExamples.png'/>
<meta name='identifier' content=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter14Prototypes/MaterialModulatorExamples.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
Index for ExternProtoDeclare definition : MaterialModulator
Index for DEF nodes : EventToggler, MaterialModulatorInstance, ModulatingBoxShape, TextAppearance, TouchTextInterface
-->
<Scene>
<WorldInfo title='MaterialModulatorExamples.x3d'/>
<ExternProtoDeclare name='MaterialModulator' appinfo='mimic a Material node and modulate the diffuseColor field as an animation effect' documentation=' https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter14Prototypes/MaterialModulatorIndex.html '
  url=' "MaterialModulator.x3d#MaterialModulator" "https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter14Prototypes/MaterialModulator.x3d#MaterialModulator" '>
<field name='enabled' type='SFBool' accessType='inputOutput'
 appinfo='default value true'/>
<field name='diffuseColor' type='SFColor' accessType='inputOutput'
 appinfo='default value 0.8 0.8 0.8'/>
<field name='emissiveColor' type='SFColor' accessType='inputOutput'
 appinfo='default value 0 0 0'/>
<field name='specularColor' type='SFColor' accessType='inputOutput'
 appinfo='default value 0 0 0'/>
<field name='transparency' type='SFFloat' accessType='inputOutput'
 appinfo='default value 0.0'/>
<field name='shininess' type='SFFloat' accessType='inputOutput'
 appinfo='default value 0.2'/>
<field name='ambientIntensity' type='SFFloat' accessType='inputOutput'
 appinfo='default value 0.2'/>
</ExternProtoDeclare>
<!-- Rendered geometry for the ProtoInstance now follows external prototype declaration -->
<Transform rotation='-0.8 0.93923 0.18785 5.759586' translation='-2 1 0'>
<Shape DEF='ModulatingBoxShape'>
<Box/>
<Appearance>
<!-- ROUTE information for MaterialModulatorInstance node:  [from EventToggler.toggle to enabled ] -->
 <ProtoInstance name='MaterialModulator' DEF='MaterialModulatorInstance' containerField='material'>
<fieldValue name='enabled' value='true'/>
<fieldValue name='diffuseColor' value='0.5 0.1 0.1'/>
<!-- fieldValue declarations for other Material attributes can appear here -->
</ProtoInstance>
</Appearance>
</Shape>
</Transform>
<Transform rotation='1 0 0 0.523599' translation='2 1 0'>
<Shape>
<Cylinder/>
<Appearance>
<!-- note that ProtoInstance USE does not require name='MaterialModulator' -->
<ProtoInstance USE='MaterialModulatorInstance' containerField='material'/>
</Appearance>
</Shape>
</Transform>
<Transform translation='-2 3.5 0'>
<Shape>
<Text string='"DEF original"'>
<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.5' style='BOLD'/>
</Text>
<Appearance DEF='TextAppearance'>
<Material diffuseColor='0.9 0.9 0.9'/>
</Appearance>
</Shape>
</Transform>
<Transform translation='2 3.5 0'>
<Shape>
<Text string='"USE copy"'>
<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.5' style='BOLD'/>
</Text>
<Appearance USE='TextAppearance'/>
</Shape>
</Transform>
<Transform translation='0 -2 0'>
<Shape>
<Text string=' "enable/disable"
"MaterialModulator"
'>
<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' style='BOLD'/>
</Text>
<Appearance USE='TextAppearance'/>
</Shape>
<!-- Selectable Text design pattern has transparent Box and TouchSensor description as a tooltip -->
<Shape>
<Box size='8 2 .001'/>
<Appearance>
<Material transparency='1'/>
</Appearance>
</Shape>
<!-- Toggle text to enable/disable MaterialModulator -->
<!-- ROUTE information for TouchTextInterface node:  [from isActive to EventToggler.set_boolean ] -->
 <TouchSensor DEF='TouchTextInterface' description='Select text to enable/disable MaterialModulator'/>
<!-- ROUTE information for EventToggler node:  [from TouchTextInterface.isActive to set_boolean ] [from toggle to MaterialModulatorInstance.enabled ] -->
 <BooleanToggle DEF='EventToggler' containerField='children'/>
<ROUTE fromNode='TouchTextInterface' fromField='isActive' toNode='EventToggler' toField='set_boolean'/>
<ROUTE fromNode='EventToggler' fromField='toggle' toNode='MaterialModulatorInstance' toField='enabled'/>
</Transform>
</Scene>
</X3D>
<!--
