<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Interchange' version='3.3'
xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance'
xsd:noNamespaceSchemaLocation
='
https://www.web3d.org/specifications/x3d-3.3.xsd
'>
<head>
</head>
<!--
-->
<Scene>
<WorldInfo title='CylinderIndexedFaceSet.x3d'/>

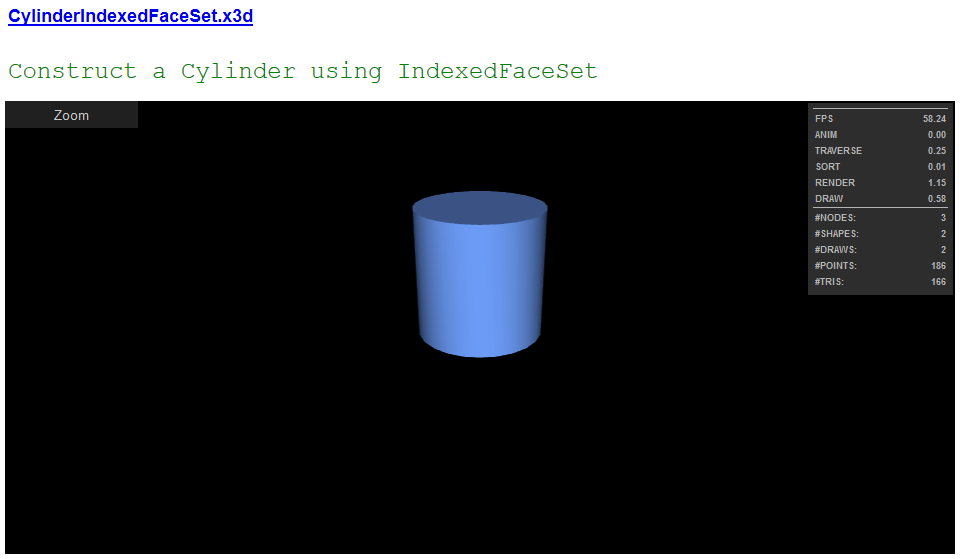

<Viewpoint description='Cylinder built using IndexedFaceSet' orientation='1 0 0 -0.463648' position='0 4 8'/>
<Shape DEF='CylinderTopBottomShape'>
<IndexedFaceSet solid='false' coordIndex='0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 -1 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 24 -1'>
<Coordinate DEF='CylinderPoints24' point='0 0 1 0.259 0 0.966 0.5 0 0.866 0.707 0 0.707 0.866 0 0.5 0.966 0 0.259 1 0 0 0.966 0 -0.259 0.866 0 -0.5 0.707 0 -0.707 0.5 0 -0.866 0.259 0 -0.966 0 0 -1 -0.259 0 -0.966 -0.5 0 -0.866 -0.707 0 -0.707 -0.866 0 -0.5 -0.966 0 -0.259 -1 0 -0 -0.966 0 0.259 -0.866 0 0.5 -0.707 0 0.707 -0.5 0 0.866 -0.259 0 0.966 0 2 1 0.259 2 0.966 0.5 2 0.866 0.707 2 0.707 0.866 2 0.5 0.966 2 0.259 1 2 0 0.966 2 -0.259 0.866 2 -0.5 0.707 2 -0.707 0.5 2 -0.866 0.259 2 -0.966 0 2 -1 -0.259 2 -0.966 -0.5 2 -0.866 -0.707 2 -0.707 -0.866 2 -0.5 -0.966 2 -0.259 -1 2 -0 -0.966 2 0.259 -0.866 2 0.5 -0.707 2 0.707 -0.5 2 0.866 -0.259 2 0.966'/>
</IndexedFaceSet>
<Appearance DEF='BlueAppearance'>
<Material diffuseColor='0.439216 0.631373 1'/>
</Appearance>
</Shape>
<Shape DEF='CylinderSideShape'>
<IndexedFaceSet creaseAngle='1.570796' solid='false' coordIndex='1 24 0 1 25 24 1 -1 2 25 1 2 26 25 2 -1 3 26 2 3 27 26 3 -1 4 27 3 4 28 27 4 -1 5 28 4 5 29 28 5 -1 6 29 5 6 30 29 6 -1 7 30 6 7 31 30 7 -1 8 31 7 8 32 31 8 -1 9 32 8 9 33 32 9 -1 10 33 9 10 34 33 10 -1 11 34 10 11 35 34 11 -1 12 35 11 12 36 35 12 -1 13 36 12 13 37 36 13 -1 14 37 13 14 38 37 14 -1 15 38 14 15 39 38 15 -1 16 39 15 16 40 39 16 -1 17 40 16 17 41 40 17 -1 18 41 17 18 42 41 18 -1 19 42 18 19 43 42 19 -1 20 43 19 20 44 43 20 -1 21 44 20 21 45 44 21 -1 22 45 21 22 46 45 22 -1 23 46 22 23 47 46 23 -1 0 47 23 0 24 47 0 -1'>
</IndexedFaceSet>
<Appearance USE='BlueAppearance'/>
</Shape>
</Scene>
</X3D>
<!--
-->
<!--
Color key:
<X3dNode
DEF='idName' field='value'/>
matches
<XmlElement
DEF='idName' attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->
<!--
For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources and X3D Scene Authoring Hints.
-->
