<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='title' content='ExtrusionExamplesTest.x3d'/>
<meta name='description' content='Extrusion examples for testing and debugging'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='created' content='18 August 2012'/>
<meta name='modified' content='20 October 2019'/>
<meta name=' warning ' content=' several tests (marked TODO) are failing under Xj3D but work satisfactorily on other X3D players '/>

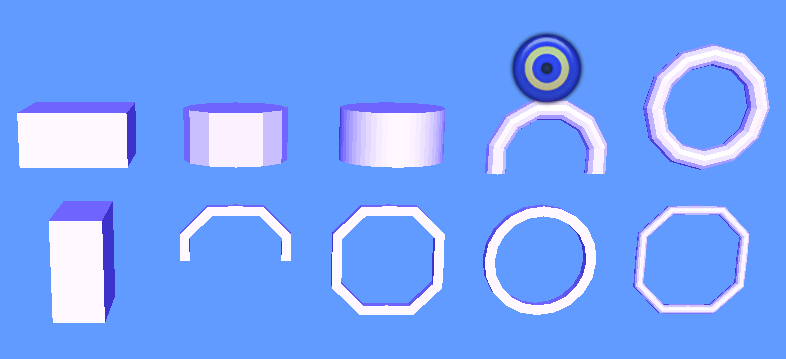

<meta name='Image' content='ExtrusionExamplesTest.BScontact.png'/>
<meta name='Image' content='ExtrusionExamplesTest.Coin3D.png'/>

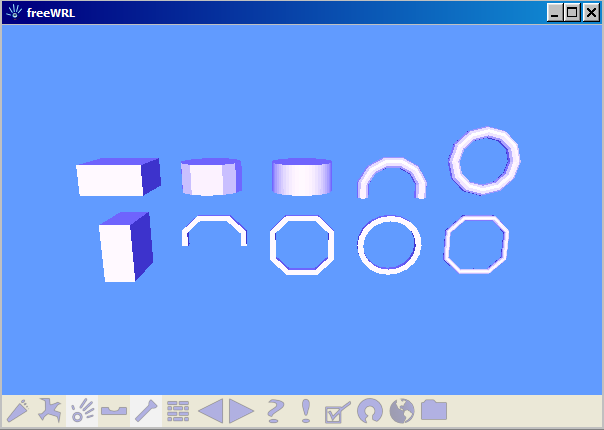

<meta name='Image' content='ExtrusionExamplesTest.FreeWrl.png'/>
<meta name='Image' content='ExtrusionExamplesTest.H3DViewer.png'/>
<meta name='Image' content='ExtrusionExamplesTest.InstantReality.png'/>

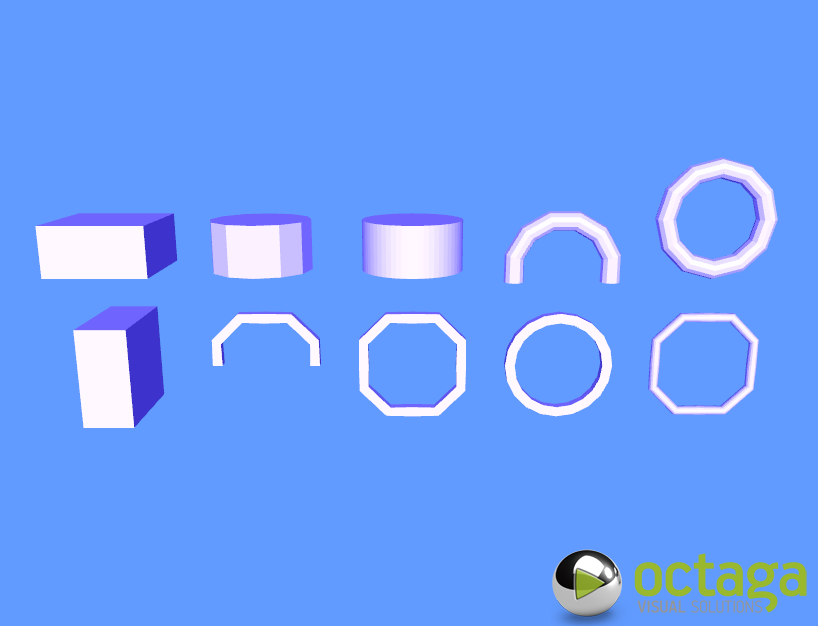

<meta name='Image' content='ExtrusionExamplesTest.OctagaVS.png'/>

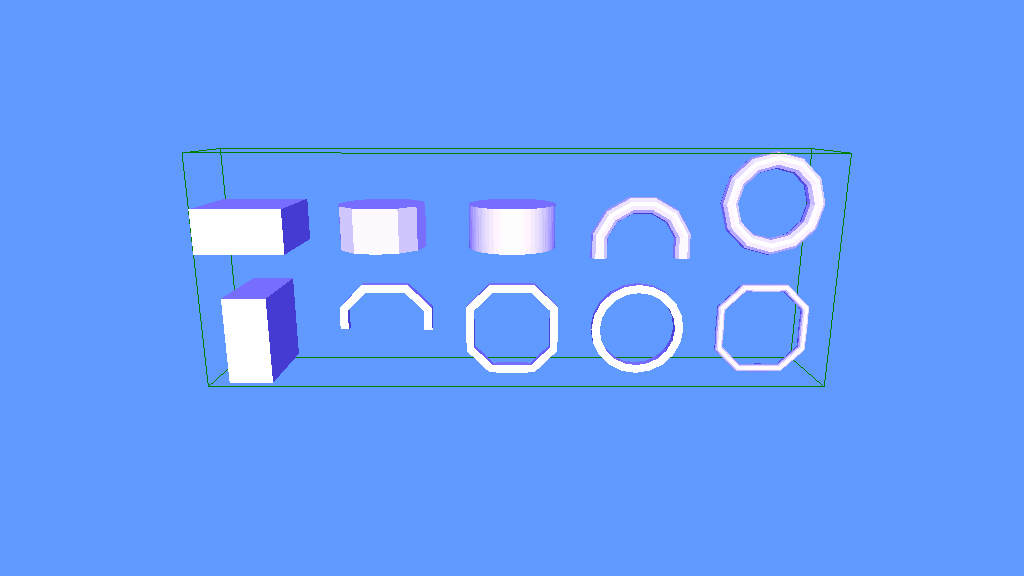

<meta name='Image' content='ExtrusionExamplesTest.view3dscene.png'/>

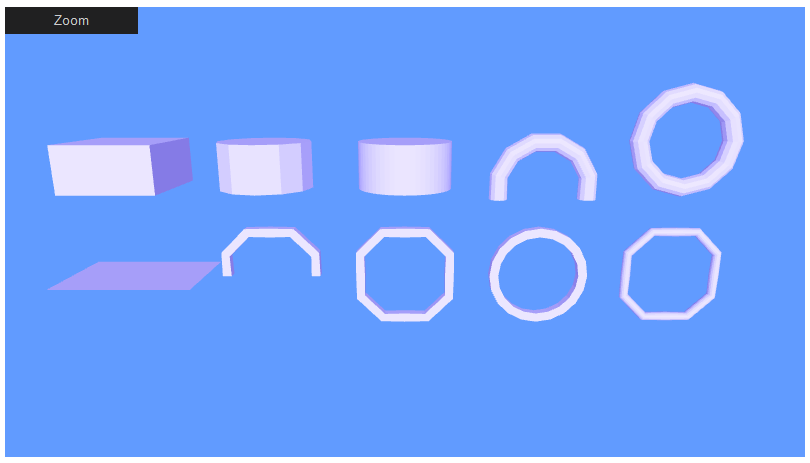

<meta name='Image' content='ExtrusionExamplesTest.X3DOM.png'/>

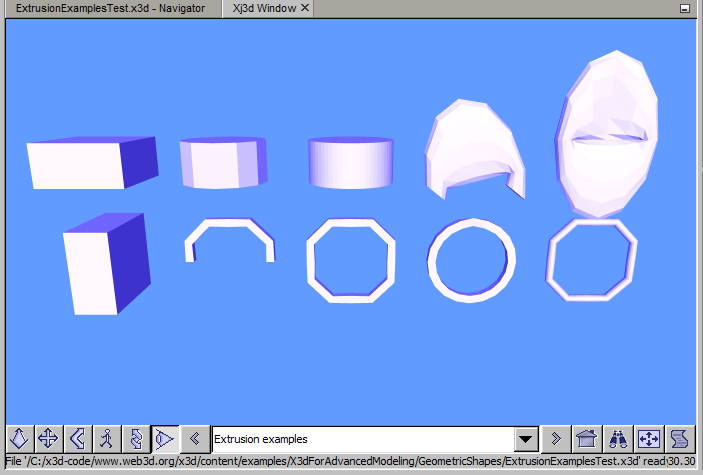

<meta name='Image' content='ExtrusionExamplesTest.Xj3D.png'/>
<meta name='reference' content='ExtrusionExamplesTestXj3dConsoleOutput.txt'/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/ExtrusionExamplesTest.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
Index for DEF nodes : AppearanceDefault, Extrusion10Right45DegreeBendsClosedCircularCrossection, Extrusion1Default, Extrusion2CircularCrossSection12, Extrusion3CircularCrossSection60, Extrusion4CircularCrossSection12SemiCircularSpine, Extrusion5CircularCrossSection12CircularSpine, Extrusion6DefaultSideways, Extrusion7Right45DegreeBends, Extrusion8Right45DegreeBendsClosed, Extrusion9CircularSpineSquareCrossection
Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7, Viewpoint_8, Viewpoint_9, Viewpoint_10, Viewpoint_11
-->
<Scene>
<WorldInfo title='ExtrusionExamplesTest.x3d'/>
<Viewpoint description='Extrusion examples' orientation='1 0 0 -0.244979' position='0 4 16'/>
<Background skyColor='0.380392 0.607843 1'/>
<Transform translation='-6 1 0'>
<Viewpoint description='Extrusion1 Default' position='0 0 4'/>
<Shape>
<Extrusion DEF='Extrusion1Default'/>
<Appearance DEF='AppearanceDefault'>
<Material emissiveColor='0.24 0.2 0.8'/>
</Appearance>
</Shape>
</Transform>
<Transform translation='-3 1 0'>
<Viewpoint description='Extrusion2 CircularCrossSection12' position='0 0 4'/>
<Shape>
<Extrusion DEF='Extrusion2CircularCrossSection12' crossSection='0 1 0.5 0.866 0.866 0.5 1 0 0.866 -0.5 0.5 -0.866 0 -1 -0.5 -0.866 -0.866 -0.5 -1 -0 -0.866 0.5 -0.5 0.866 0 1'/>
<Appearance USE='AppearanceDefault'/>
</Shape>
</Transform>
<Transform translation='0 1 0'>
<Viewpoint description='Extrusion3 CircularCrossSection60' position='0 0 4'/>
<Shape>
<Extrusion DEF='Extrusion3CircularCrossSection60' crossSection='0 1 0.105 0.995 0.208 0.978 0.309 0.951 0.407 0.914 0.5 0.866 0.588 0.809 0.669 0.743 0.743 0.669 0.809 0.588 0.866 0.5 0.914 0.407 0.951 0.309 0.978 0.208 0.995 0.105 1 0 0.995 -0.105 0.978 -0.208 0.951 -0.309 0.914 -0.407 0.866 -0.5 0.809 -0.588 0.743 -0.669 0.669 -0.743 0.588 -0.809 0.5 -0.866 0.407 -0.914 0.309 -0.951 0.208 -0.978 0.105 -0.995 0 -1 -0.105 -0.995 -0.208 -0.978 -0.309 -0.951 -0.407 -0.914 -0.5 -0.866 -0.588 -0.809 -0.669 -0.743 -0.743 -0.669 -0.809 -0.588 -0.866 -0.5 -0.914 -0.407 -0.951 -0.309 -0.978 -0.208 -0.995 -0.105 -1 -0 -0.995 0.105 -0.978 0.208 -0.951 0.309 -0.914 0.407 -0.866 0.5 -0.809 0.588 -0.743 0.669 -0.669 0.743 -0.588 0.809 -0.5 0.866 -0.407 0.914 -0.309 0.951 -0.208 0.978 -0.105 0.995 0 1'/>
<Appearance USE='AppearanceDefault'/>
</Shape>
</Transform>
<Transform rotation='0 0 1 0.261799' translation='3 1 0'>
<Viewpoint description='Extrusion4 CircularCrossSection12SemiCircularSpine' position='0 0 4'/>
<Shape>
<!-- TODO isolated problem: Xj3D rotations look like SCP is mistaken and (unspecified) scales are bogus. mesh connectivity seems OK. crossSection is closed, spine is open. -->
<Extrusion DEF='Extrusion4CircularCrossSection12SemiCircularSpine' crossSection='0 1 0.5 0.866 0.866 0.5 1 0 0.866 -0.5 0.5 -0.866 0 -1 -0.5 -0.866 -0.866 -0.5 -1 -0 -0.866 0.5 -0.5 0.866 0 1' scale='0.2 0.2' spine='-1 0 0 -0.866 0.5 0 -0.5 0.866 0 0 1 0 0.5 0.866 0 0.866 0.5 0 1 0 0 0.866 -0.5 0'/>
<Appearance USE='AppearanceDefault'/>
</Shape>
</Transform>
<Transform translation='6 2 0'>
<Viewpoint description='Extrusion5 CircularCrossSection12CircularSpine' position='0 0 4'/>
<Shape>
<!-- TODO isolated problem: Xj3D rotations look like SCP is mistaken and (unspecified) scales are bogus. mesh connectivity seems OK. crossSection is closed, spine is closed. -->
<Extrusion DEF='Extrusion5CircularCrossSection12CircularSpine' crossSection='0 1 0.5 0.866 0.866 0.5 1 0 0.866 -0.5 0.5 -0.866 0 -1 -0.5 -0.866 -0.866 -0.5 -1 -0 -0.866 0.5 -0.5 0.866 0 1' scale='0.2 0.2' spine='0 1 0 0.5 0.866 0 0.866 0.5 0 1 0 0 0.866 -0.5 0 0.5 -0.866 0 0 -1 0 -0.5 -0.866 0 -0.866 -0.5 0 -1 -0 0 -0.866 0.5 0 -0.5 0.866 0 0 1 0'/>
<Appearance USE='AppearanceDefault'/>
</Shape>
</Transform>
<!-- ========================================= -->
<Transform translation='-6.5 -1 0'>
<Viewpoint description='Extrusion6 DefaultSideways' position='0 0 4'/>
<Shape>
<Extrusion DEF='Extrusion6DefaultSideways' spine='0 0 0 1 0 0'/>
<Appearance USE='AppearanceDefault'/>
</Shape>
</Transform>
<Transform translation='-4 -1 0'>
<Viewpoint description='Extrusion7 Right45DegreeBends' position='0 0 4'/>
<Shape>
<Extrusion DEF='Extrusion7Right45DegreeBends' crossSection='0.1 0.1 0.1 -0.1 -0.1 -0.1 -0.1 0.1 0.1 0.1' spine='0 0 0 0 0.5 0 0.5 1 0 1 1 0 1.5 1 0 2 0.5 0 2 0 0'/>
<Appearance USE='AppearanceDefault'/>
</Shape>
</Transform>
<Transform translation='-1 -1 0'>
<Viewpoint description='Extrusion8 Right45DegreeBendsClosed' position='0 0 4'/>
<Shape>
<Extrusion DEF='Extrusion8Right45DegreeBendsClosed' crossSection='0.1 0.1 0.1 -0.1 -0.1 -0.1 -0.1 0.1 0.1 0.1' spine='0 0 0 0 0.5 0 0.5 1 0 1 1 0 1.5 1 0 2 0.5 0 2 0 0 2 -0.5 0 1.5 -1 0 1 -1 0 0.5 -1 0 0 -0.5 0 0 0 0'/>
<Appearance USE='AppearanceDefault'/>
</Shape>
</Transform>
<Transform translation='3 -1 0'>
<Viewpoint description='Extrusion9 CircularSpineSquareCrossection' position='0 0 4'/>
<Shape>
<!-- TODO isolated problem: Xj3D end segments squeezed (but not shut) when crossSection is closed, regardless of beginCap='true' endCap='true' -->
<Extrusion DEF='Extrusion9CircularSpineSquareCrossection' crossSection='0.1 0.1 0.1 -0.1 -0.1 -0.1 -0.1 0.1 0.1 0.1' spine='0 1 0 0.309 0.951 0 0.588 0.809 0 0.809 0.588 0 0.951 0.309 0 1 0 0 0.951 -0.309 0 0.809 -0.588 0 0.588 -0.809 0 0.309 -0.951 0 0 -1 0 -0.309 -0.951 0 -0.588 -0.809 0 -0.809 -0.588 0 -0.951 -0.309 0 -1 -0 0 -0.951 0.309 0 -0.809 0.588 0 -0.588 0.809 0 -0.309 0.951 0 0 1 0'/>
<Appearance USE='AppearanceDefault'/>
</Shape>
</Transform>
<Transform translation='5 -1 0'>
<Viewpoint description='Extrusion10 Right45DegreeBendsClosedCircularCrossection' position='0 0 4'/>
<Shape>
<Extrusion DEF='Extrusion10Right45DegreeBendsClosedCircularCrossection' crossSection='0 0.1 0.0383 0.0924 0.0707 0.0707 0.0924 0.0383 0.1 0 0.0924 -0.0383 0.0707 -0.0707 0.0383 -0.0924 0 -0.1 -0.0383 -0.0924 -0.0707 -0.0707 -0.0924 -0.0383 -0.1 -0 -0.0924 0.0383 -0.0707 0.0707 -0.0383 0.0924 0 0.1' spine='0 0 0 0 0.5 0 0.5 1 0 1 1 0 1.5 1 0 2 0.5 0 2 0 0 2 -0.5 0 1.5 -1 0 1 -1 0 0.5 -1 0 0 -0.5 0 0 0 0'/>
<Appearance USE='AppearanceDefault'/>
</Shape>
</Transform>
</Scene>
</X3D>
<!--
