<head>
<meta name='title' content='OlympicRings.x3d'/>
<meta name='description' content='Olympic Rings built for authoring course MV3204 using regulation colors, each approximately 5m radius. Debugging efforts showed difficulties with concave crossSection, important to set convex=false for proper rendering.'/>
<meta name='creator' content='Tobias Brennenstuhl'/>
<meta name='created' content='10 December 2019'/>
<meta name='modified' content='13 April 2020'/>
<meta name='reference' content='CircleCalculator.xlsx'/>
<meta name='reference' content=' https://en.wikipedia.org/wiki/Olympic_symbols '/>
<meta name='drawing' content=' https://en.wikipedia.org/wiki/Olympic_symbols#/media/File:Olympic_rings_without_rims.svg '/>

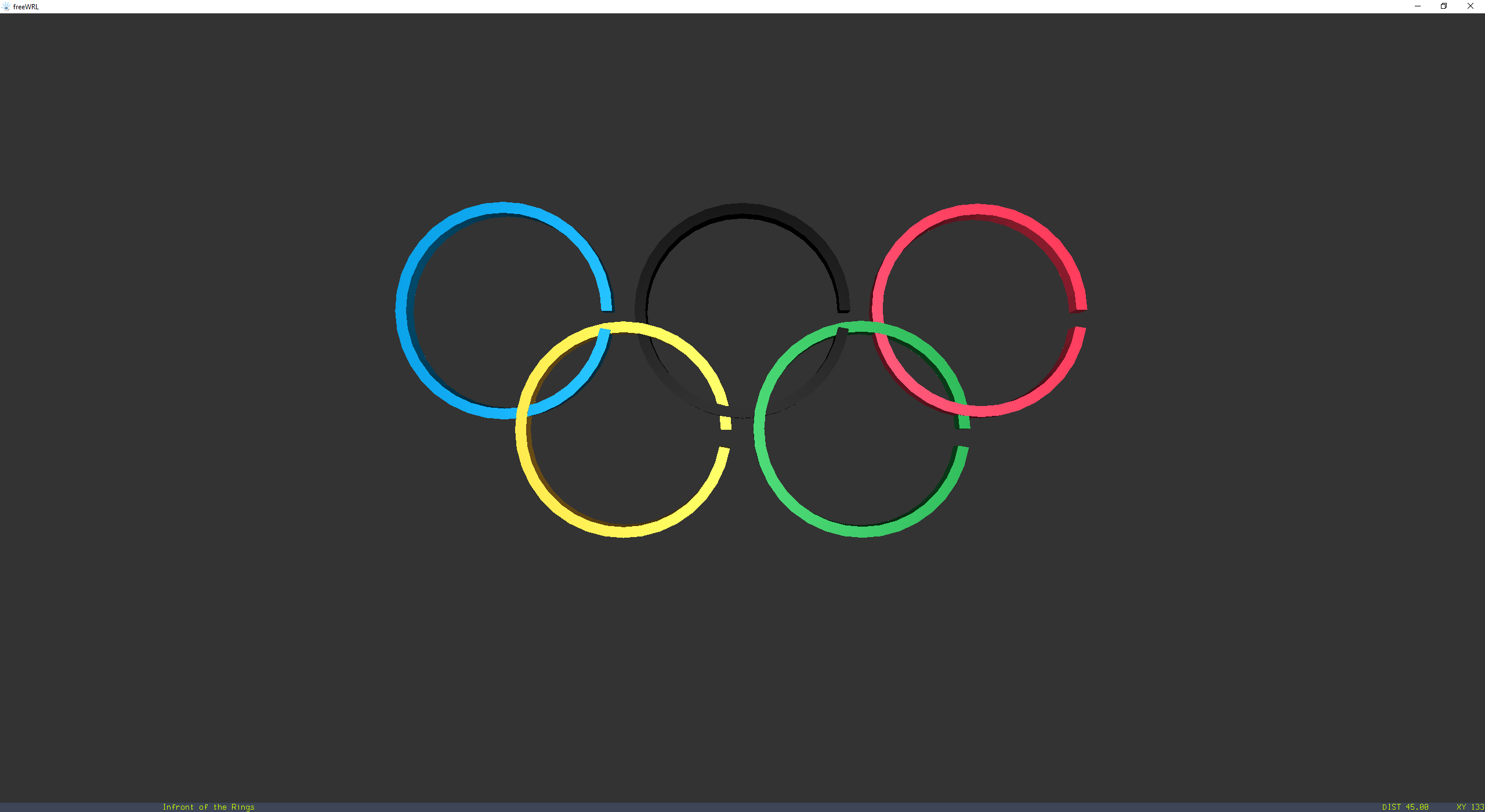

<meta name='Image' content='OlympicRings.FreeWRL.png'/>

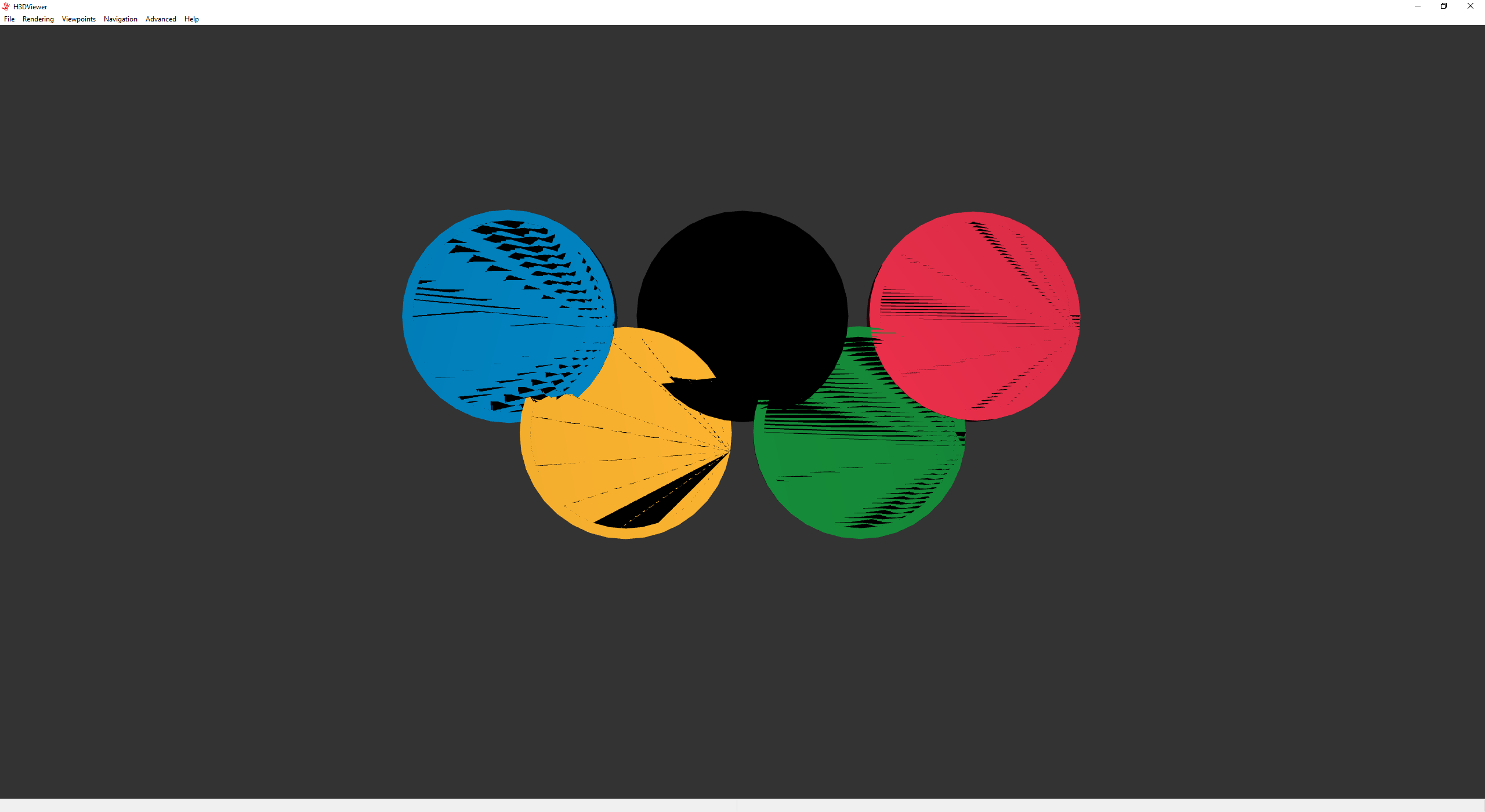

<meta name='Image' content='OlympicRings.H3dViewer.png'/>

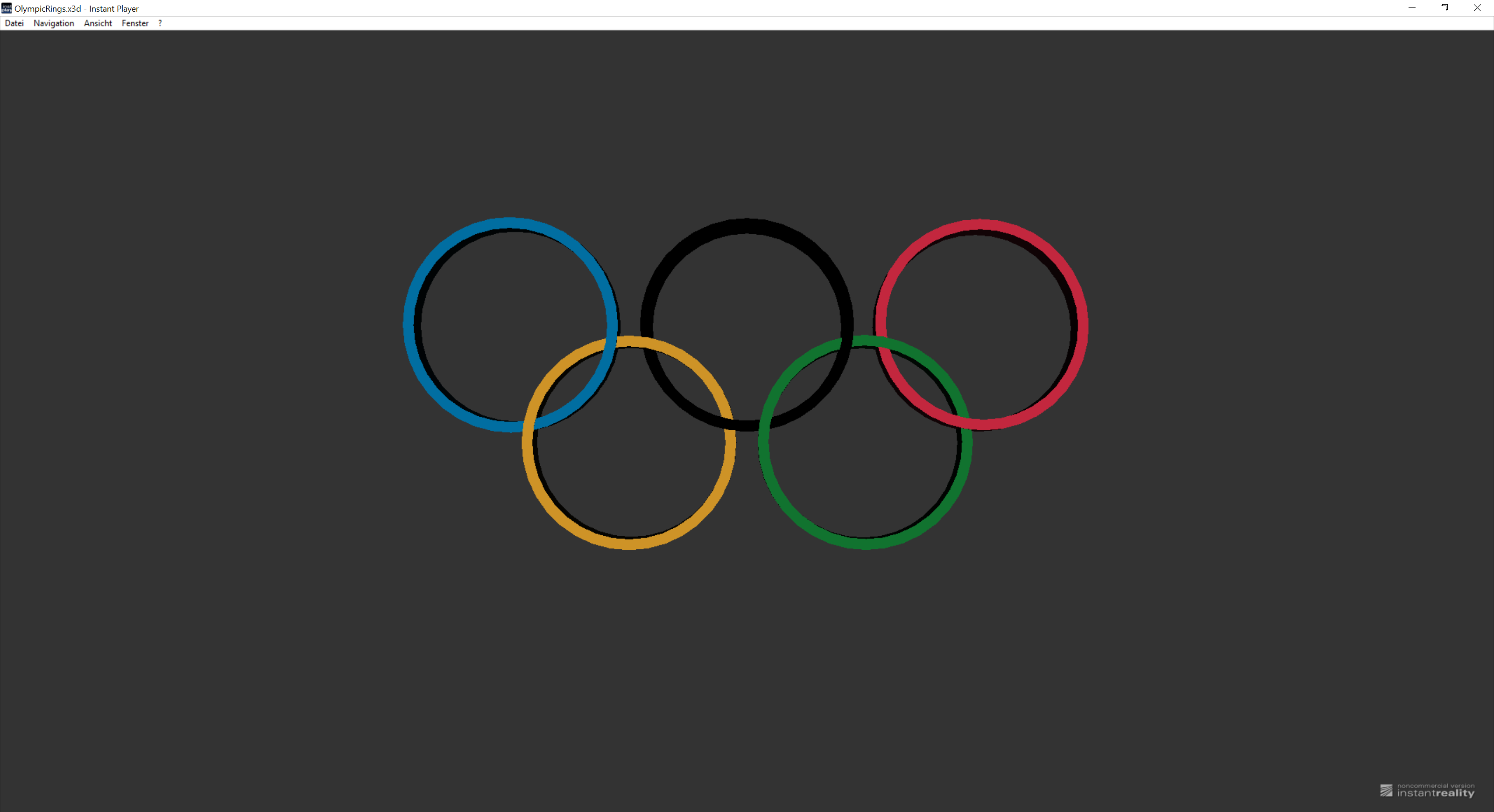

<meta name='Image' content='OlympicRings.InstantReality.png'/>

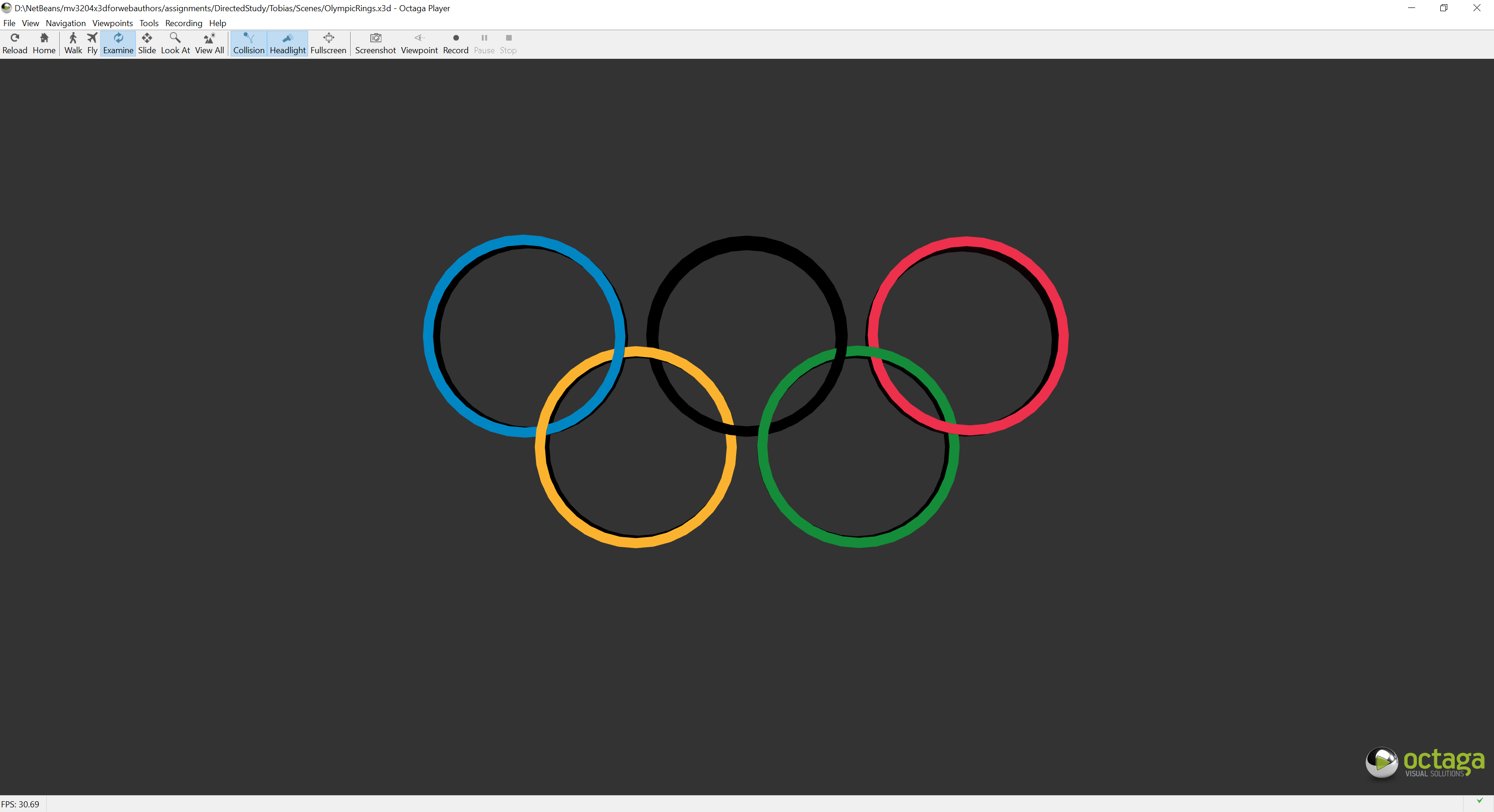

<meta name='Image' content='OlympicRings.Octaga.png'/>

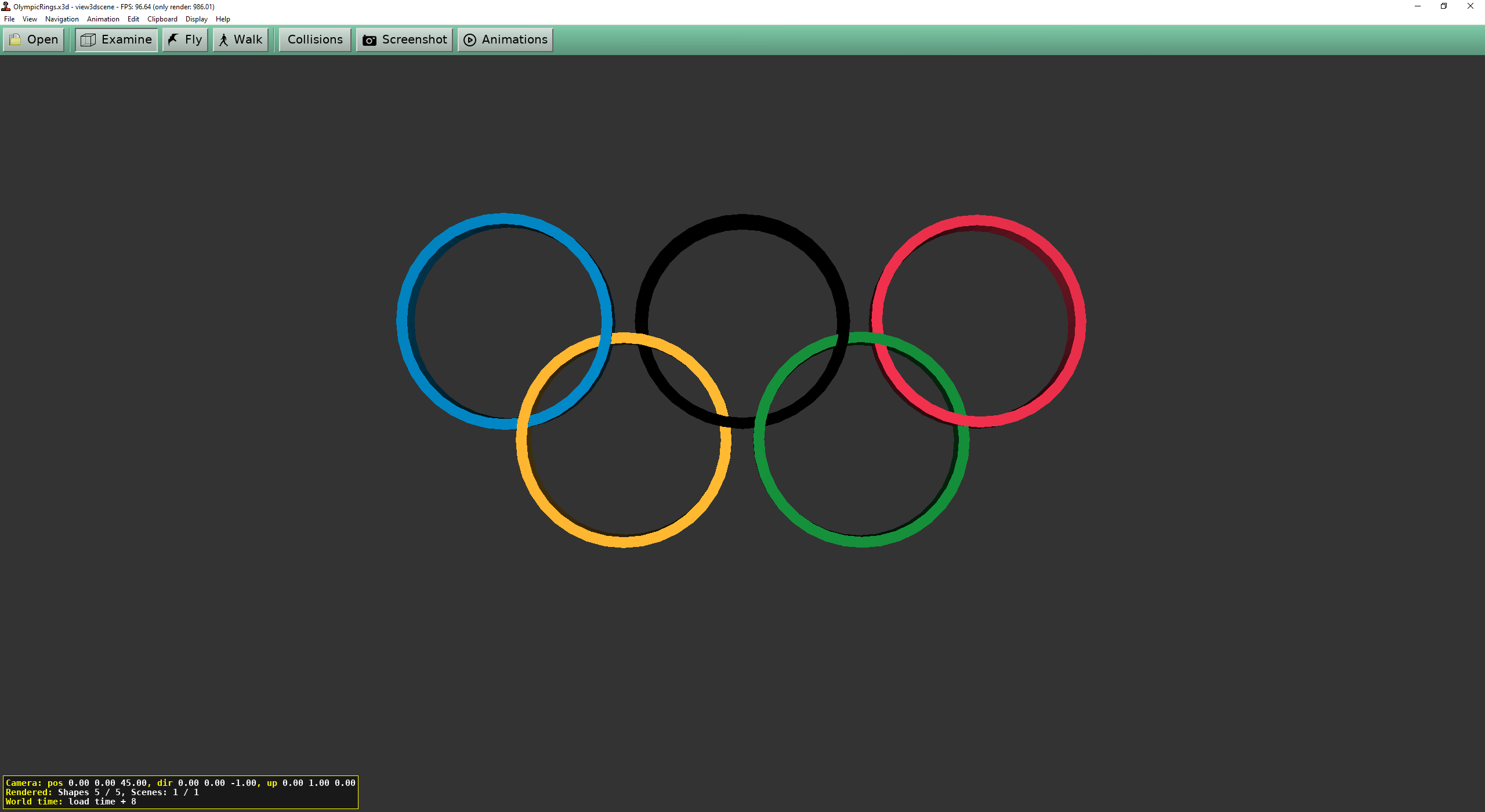

<meta name='Image' content='OlympicRings.view3dScene.png'/>
<meta name='Image' content='OlympicRings.XJ3dBrowser.png'/>
<meta name='reference' content='OlympicRingsBlender.blend'/>
<meta name='reference' content='OlympicRingsBlender.png'/>
<meta name='reference' content='OlympicRingsBlender.original.txt'/>
<meta name='reference' content='OlympicRingsBlender.x3d'/>
<meta name='reference' content='ExtrusionCrossSectionSelfIntersectingView3dsceneVisualization.mp4'/>
<meta name='reference' content=' https://twitter.com/Web3DConsortium/status/1245370306417418240 '/>
<meta name='subject' content='Olympic Rings'/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='reference' content=' https://gitlab.nps.edu/Savage/mv3204x3dforwebauthors/blob/master/assignments/DirectedStudy/Tobias/Scenes/OlympicRings.x3d '/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/OlympicRings.x3d '/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
Index for DEF nodes : AllRings, MustardYellow, OlympicGreen, OlympicRingsFromInFront, PointLight, RingExtrusion, SolidBlack, StrongBlue, StrongRed
Index for Viewpoint image : OlympicRingsFromInFront
-->
<Scene>
<WorldInfo title='OlympicRings.x3d'/>
<NavigationInfo headlight='false'/>
<PointLight DEF='PointLight' location='0 0 45'/>
<Viewpoint DEF='OlympicRingsFromInFront' description='Regulation color Olympic Rings' position='0 0 45'/>
<Background skyColor='0.2 0.2 0.2'/>
<Transform DEF='AllRings' translation='0 2 0'>
<Transform rotation='1 0 0 1.6' translation='-11 2.5 0.1'>
<Shape>
<Extrusion DEF='RingExtrusion' convex='false' crossSection='4.924039 0.868241 4.698463 1.710101 4.330127 2.5 3.830222 3.213938 3.213938 3.830222 2.5 4.330127 1.710101 4.698463 0.868241 4.924039 0 5 -0.868241 4.924039 -1.710101 4.698463 -2.5 4.330127 -3.213938 3.830222 -3.830222 3.213938 -4.330127 2.5 -4.698463 1.710101 -4.924039 0.868241 -5 0 -4.924039 -0.868241 -4.698463 -1.710101 -4.330127 -2.5 -3.830222 -3.213938 -3.213938 -3.830222 -2.5 -4.330127 -1.710101 -4.698463 -0.868241 -4.924039 -0 -5 0.868241 -4.924039 1.710101 -4.698463 2.5 -4.330127 3.213938 -3.830222 3.830222 -3.213938 4.330127 -2.5 4.698463 -1.710101 4.924039 -0.868241 5 -0 4.5 0 4.431635 -0.781417 4.228617 -1.539091 3.897114 -2.25 3.4472 -2.892544 2.892544 -3.4472 2.25 -3.897114 1.539091 -4.228617 0.781417 -4.431635 -0 -4.5 -0.781417 -4.431635 -1.539091 -4.228617 -2.25 -3.897114 -2.892544 -3.4472 -3.4472 -2.892544 -3.897114 -2.25 -4.228617 -1.539091 -4.431635 -0.781417 -4.5 0 -4.431635 0.781417 -4.228617 1.539091 -3.897114 2.25 -3.4472 2.892544 -2.892544 3.4472 -2.25 3.897114 -1.539091 4.228617 -0.781417 4.431635 0 4.5 0.781417 4.431635 1.539091 4.228617 2.25 3.897114 2.892544 3.4472 3.4472 2.892544 3.897114 2.25 4.228617 1.539091 4.431635 0.781417 4.5 0 5 0 4.924039 0.868241' solid='false'>
<!-- spine is open, crossSection is closed -->
</Extrusion>
<Appearance>
<Material DEF='StrongBlue' diffuseColor='0.003922 0.52549 0.768627'/>
</Appearance>
</Shape>
</Transform>
<Transform rotation='1 0 0 1.54' translation='0 2.5 -0.1'>
<Shape>
<Extrusion USE='RingExtrusion'/>
<Appearance>
<Material DEF='SolidBlack' diffuseColor='0 0 0'/>
</Appearance>
</Shape>
</Transform>
<Transform rotation='1 0 0 1.50' translation='11 2.5 -0.21'>
<Shape>
<Extrusion USE='RingExtrusion'/>
<Appearance>
<Material DEF='StrongRed' diffuseColor='0.933333333 0.188235294 0.298039216'/>
</Appearance>
</Shape>
</Transform>
<Transform rotation='1 0 0 1.57' translation='-5.5 -3 0'>
<Shape>
<Extrusion USE='RingExtrusion'/>
<Appearance>
<Material DEF='MustardYellow' diffuseColor='0.984313725 0.701960784 0.184313725'/>
</Appearance>
</Shape>
</Transform>
<Transform rotation='1 0 0 1.52' translation='5.5 -3 0.1'>
<Shape>
<Extrusion USE='RingExtrusion'/>
<Appearance>
<Material DEF='OlympicGreen' diffuseColor='0.082352941 0.549019608 0.223529412'/>
</Appearance>
</Shape>
</Transform>
</Transform>
</Scene>
</X3D>
<!--
