RoundedRectanglePrimitives.x3d (X3dToXhtml listing)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Interchange' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='RoundedRectanglePrimitives.x3d'/>
<meta name='description' content='Illustrates how to build rounded rectangle using only primitive nodes.'/>
<meta name='creator' content='Marlon Heron and Don Brutzman'/>
<meta name='created' content='23 October 2014'/>
<meta name='modified' content='20 October 2019'/>
<meta name='reference' content='X3D for Web Authors, homework for chapters 2 and 3.'/>
<meta name='reference' content=' https://x3dgraphics.com/slidesets/X3dForWebAuthors/Chapter02-GeometryPrimitives.pdf '/>
<meta name='reference' content=' https://x3dgraphics.com/slidesets/X3dForWebAuthors/Chapter03Grouping.pdf '/>
<meta name=' TODO ' content=' add drawing of scene graph structure '/>
<meta name=' TODO ' content=' fix Xj3D aliasing bug '/>

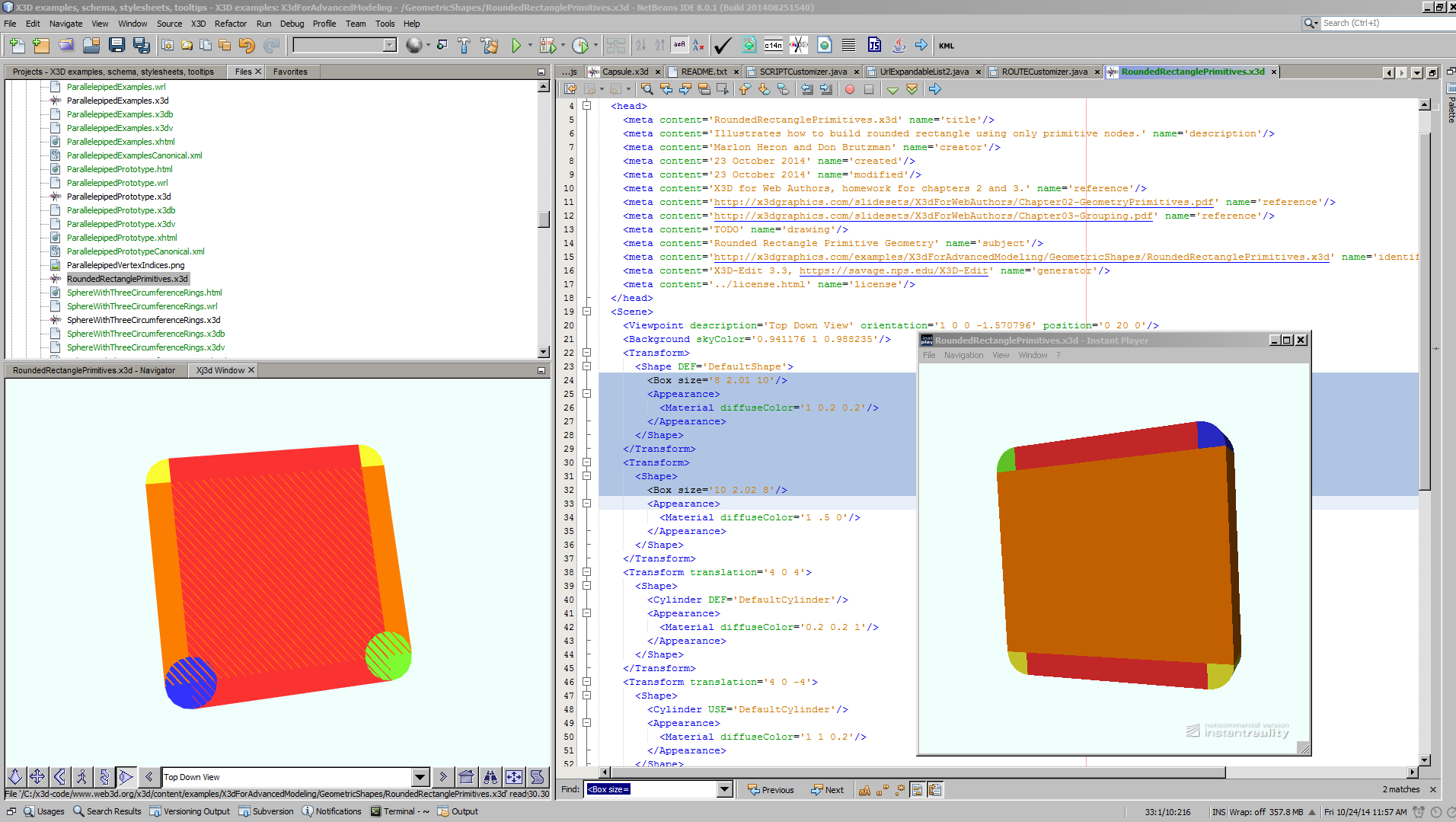

<meta name='Image' content='Xj3dAliasingProblemRoundedRectanglePrimitives.png'/>
<meta name='subject' content='Rounded Rectangle Primitive Geometry'/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/RoundedRectanglePrimitives.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

Index for DEF nodes : DefaultCylinder, DefaultShape

Index for Viewpoint image : Viewpoint_1

-->
<Scene>

<WorldInfo title='RoundedRectanglePrimitives.x3d'/>
<Viewpoint description='Top Down View' orientation='1 0 0 -1.570796' position='0 20 0'/>
<Background skyColor='0.941176 1 0.988235'/>
<Transform>

<Shape DEF='DefaultShape'>

<Box size='8 2.01 10'/>
<Appearance>

<Material diffuseColor='1 0.2 0.2'/>

</Appearance>

</Shape>

</Transform>
<Transform>

<Shape>

<Box size='10 2.02 8'/>
<Appearance>

<Material diffuseColor='1 .5 0'/>

</Appearance>

</Shape>

</Transform>
<Transform translation='4 0 4'>

<Shape>

<Cylinder DEF='DefaultCylinder'/>
<Appearance>

<Material diffuseColor='0.2 0.2 1'/>

</Appearance>

</Shape>

</Transform>
<Transform translation='4 0 -4'>

<Shape>

<Cylinder USE='DefaultCylinder'/>
<Appearance>

<Material diffuseColor='1 1 0.2'/>

</Appearance>

</Shape>

</Transform>
<Transform translation='-4 0 4'>

<Shape>

<Cylinder USE='DefaultCylinder'/>
<Appearance>

<Material diffuseColor='.5 1 0.2'/>

</Appearance>

</Shape>

</Transform>
<Transform translation='-4 0 -4'>

<Shape>

<Cylinder USE='DefaultCylinder'/>
<Appearance>

<Material diffuseColor='1 1 0.2'/>

</Appearance>

</Shape>

</Transform>

</Scene>

</X3D>
<!--
