<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Interchange' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<unit category='length' conversionFactor='0.0254' name='InchesToMeters'/>
<meta name='title' content='ShayDPixelBobbleHeadBoxSiggraph2017.x3d'/>
<meta name=' warning ' content=' Some X3D players may still have difficulty with the unit element and need to be upgraded. '/>
<meta name='description' content='BobbleHead Box for Shay D Pixel from SIGGRAPH 2017. Box measures 3.75 x 3.75 x 6.5 cubic inches overall. Thanks Mario for signature!'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='artist' content='Mario Nagamura'/>
<meta name='created' content='11 October 2017'/>
<meta name='modified' content='22 March 2020'/>
<meta name='Image' content='images/BobbleHeadAtopBox.jpg'/>

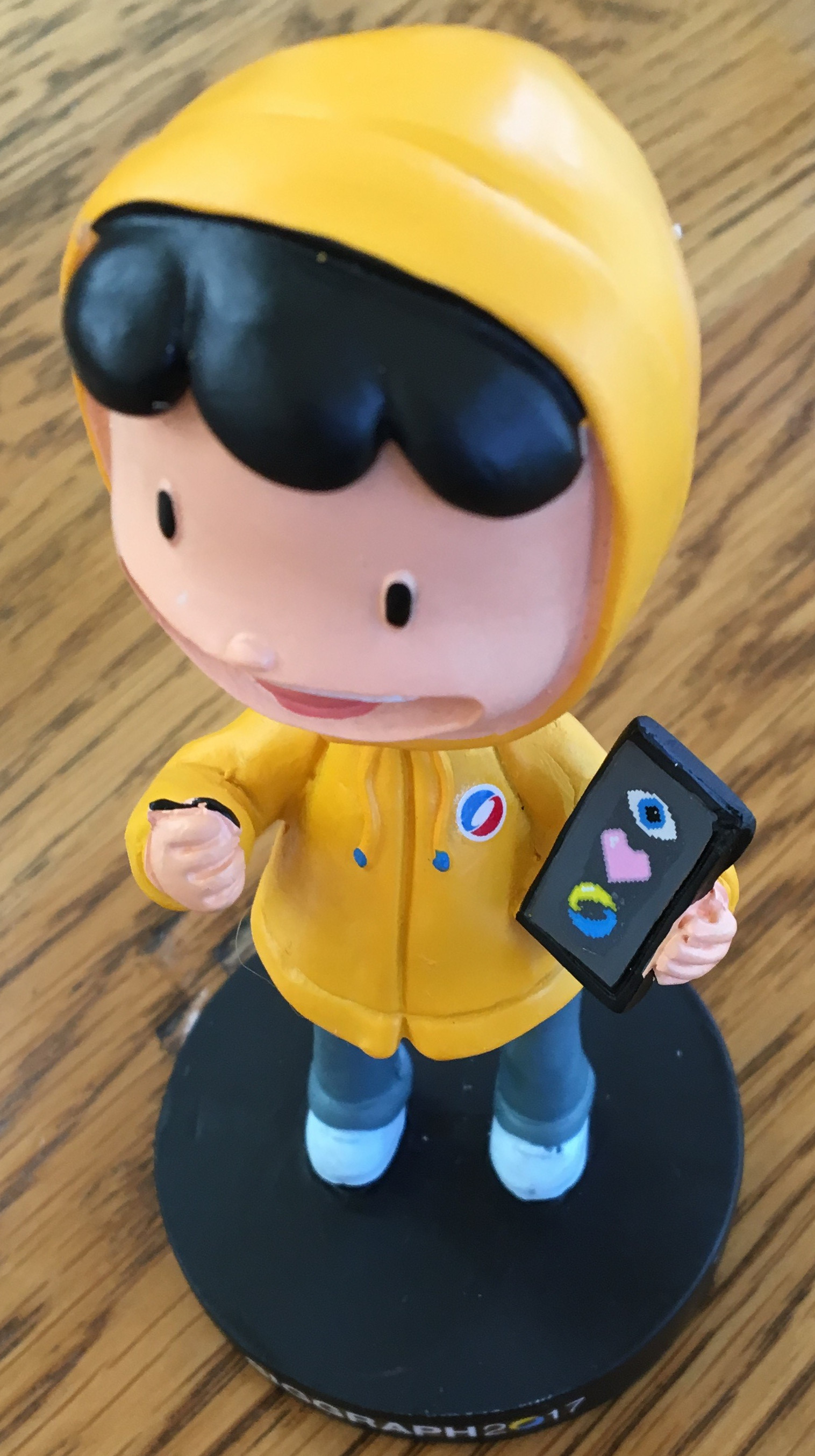

<meta name='Image' content='images/BobbleHeadOblique.jpg'/>
<meta name='Image' content='images/Siggraph2017GoldenTicketInHand.jpg'/>
<meta name='Video' content=' https://www.youtube.com/embed/vzkaKhrQk60 '/>
<meta name='reference' content=' http://blog.siggraph.org/2017/07/3-siggraph-2017-mug-hacks.html '/>
<meta name='reference' content=' ../GeometricShapes/CubeWithLabeledSides.x3d'/>
<meta name=' TODO ' content=' X3DOM Player Issue, Viewpoint PgDn/PgUp/Home/End https://github.com/x3dom/x3dom/issues/777 '/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/ShayDPixel/ShayDPixelBobbleHeadBoxSiggraph2017.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) https://creativecommons.org/licenses/by-nc-sa/4.0 '/>

</head>
<!--

Index for DEF nodes : Back, BackView, Bottom, BottomView, DefaultTextureCoordinate, Front, FrontView, LeftSide, LeftSideView, Points, RightSide, RightSideView, Rotate180, RotateRight90, Top, TopView

Index for Viewpoint images : BackView, BottomView, FrontView, LeftSideView, RightSideView, TopView

-->
<Scene>

<WorldInfo title='ShayDPixelBobbleHeadBoxSiggraph2017.x3d'/>
<Background skyColor='0.1 0.1 0.1'/>
<Group DEF='Front'>

<Viewpoint DEF='FrontView' description='Front view' orientation='0 1 0 1.57' position='12 0 0'/>
<Shape>

<IndexedFaceSet coordIndex='0 1 2 3' texCoordIndex='0 1 2 3'>

<Coordinate DEF='Points' point='1.875 3.25 1.875 1.875 -3.25 1.875 1.875 -3.25 -1.875 1.875 3.25 -1.875 -1.875 3.25 1.875 -1.875 -3.25 1.875 -1.875 -3.25 -1.875 -1.875 3.25 -1.875'/>
<TextureCoordinate DEF='DefaultTextureCoordinate' point='0 0 1 0 1 1 0 1'/>

</IndexedFaceSet>
<Appearance>

<ImageTexture
url=' "images/BoxFrontSigned.jpg" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/ShayDPixel/images/BoxFrontSigned.jpg" '/>

<TextureTransform DEF='RotateRight90' rotation='-1.57'/>

</Appearance>

</Shape>

</Group>
<Group DEF='LeftSide'>

<Viewpoint DEF='LeftSideView' description='Left side view' orientation='0 1 0 3.1416' position='0 0 -12'/>
<Shape>

<IndexedFaceSet coordIndex='3 2 6 7' texCoordIndex='0 1 2 3'>

<Coordinate USE='Points'/>
<TextureCoordinate USE='DefaultTextureCoordinate'/>

</IndexedFaceSet>
<Appearance>

<ImageTexture
url=' "images/BoxLeftSide.jpg" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/ShayDPixel/images/BoxLeftSide.jpg" '/>
<TextureTransform USE='RotateRight90'/>

</Appearance>

</Shape>

</Group>
<Group DEF='Back'>

<Viewpoint DEF='BackView' description='Back view' orientation='0 1 0 -1.57' position='-12 0 0'/>
<Shape>

<IndexedFaceSet coordIndex='7 6 5 4' texCoordIndex='0 1 2 3'>

<Coordinate USE='Points'/>
<TextureCoordinate USE='DefaultTextureCoordinate'/>

</IndexedFaceSet>
<Appearance>

<ImageTexture
url=' "images/BoxBack.jpg" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/ShayDPixel/images/BoxBack.jpg" '/>
<TextureTransform USE='RotateRight90'/>

</Appearance>

</Shape>

</Group>
<Group DEF='RightSide'>

<Viewpoint DEF='RightSideView' description='Right Side view' position='0 0 12'/>
<Shape>

<IndexedFaceSet coordIndex='0 4 5 1' texCoordIndex='0 1 2 3'>

<Coordinate USE='Points'/>
<TextureCoordinate USE='DefaultTextureCoordinate'/>

</IndexedFaceSet>
<Appearance>

<ImageTexture
url=' "images/BoxRightSide.jpg" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/ShayDPixel/images/BoxRightSide.jpg" '/>
<TextureTransform DEF='Rotate180' rotation='3.14159'/>

</Appearance>

</Shape>

</Group>
<Group DEF='Bottom'>

<Viewpoint DEF='BottomView' description='Bottom view' orientation='1 0 0 1.57' position='0 -12 0'/>
<Shape>

<IndexedFaceSet coordIndex='1 5 6 2' texCoordIndex='0 1 2 3'>

<Coordinate USE='Points'/>
<TextureCoordinate USE='DefaultTextureCoordinate'/>

</IndexedFaceSet>
<Appearance>

<ImageTexture
url=' "images/BoxBottom.jpg" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/ShayDPixel/images/BoxBottom.jpg" '/>
<TextureTransform USE='Rotate180'/>

</Appearance>

</Shape>

</Group>
<Group DEF='Top'>

<Viewpoint DEF='TopView' description='Top view' orientation='-0.5772 0.5772 0.57766 2.09394' position='0 12 0'>

</Viewpoint>
<Shape>

<IndexedFaceSet coordIndex='0 3 7 4' texCoordIndex='0 1 2 3'>

<Coordinate USE='Points'/>
<TextureCoordinate USE='DefaultTextureCoordinate'/>

</IndexedFaceSet>
<Appearance>

<ImageTexture
url=' "images/BoxTop.jpg" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/ShayDPixel/images/BoxTop.jpg" '/>

</Appearance>

</Shape>

</Group>

</Scene>

</X3D>
<!--
