GeometryPrimitiveNodesWhiteBackground.x3d (X3dToXhtml listing)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='GeometryPrimitiveNodesWhiteBackground.x3d'/>
<meta name='description' content='Geometry Primitive Nodes: Shape, Box, Cone, Cylinder, Sphere, Text, FontStyle'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='created' content='25 March 2005'/>
<meta name='modified' content='20 October 2019'/>

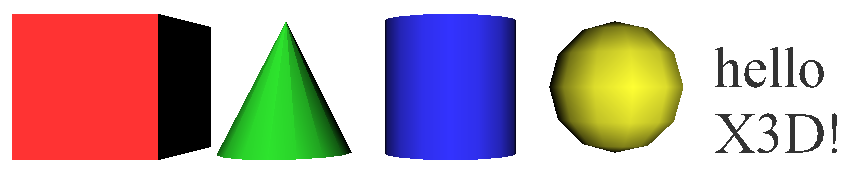

<meta name='Image' content='GeometryPrimitiveNodesWhiteBackground.png'/>
<meta name='Image' content='GeometryPrimitiveNodesWhiteBackgroundReducedQuality.png'/>
<meta name='hint' content='Default values have been added to geometry nodes for clarity, ordinarily default values are omitted.'/>
<meta name='rights' content='Copyright (c) Don Brutzman and Leonard Daly, 2005'/>
<meta name='identifier' content=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter02GeometryPrimitives/GeometryPrimitiveNodesWhiteBackground.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

Index for DEF nodes : DefaultAppearance, DefaultBox, DefaultCone, DefaultCylinder, DefaultFontStyle, DefaultMaterial, DefaultShape, DefaultSphere, DefaultText

-->
<Scene>

<WorldInfo title='GeometryPrimitiveNodesWhiteBackground.x3d'/>
<Background skyColor='1 1 1'/>
<Transform translation='-5 0 0'>

<Shape DEF='DefaultShape'>

<Box DEF='DefaultBox'/>
<Appearance DEF='DefaultAppearance'>

<Material diffuseColor='1 0.2 0.2'/>

</Appearance>

</Shape>

</Transform>
<Transform translation='-2.5 0 0'>

<Shape>

<Cone DEF='DefaultCone'/>
<Appearance>

<Material diffuseColor='0.2 1 0.2'/>

</Appearance>

</Shape>

</Transform>
<Transform>

<Shape>

<Cylinder DEF='DefaultCylinder'/>
<Appearance>

<Material diffuseColor='0.2 0.2 1'/>

</Appearance>

</Shape>

</Transform>
<Transform translation='2.5 0 0'>

<Shape>

<Sphere DEF='DefaultSphere'/>
<Appearance>

<Material diffuseColor='1 1 0.2'/>

</Appearance>

</Shape>

</Transform>
<Transform translation='4 0 0'>

<Shape>

<Text DEF='DefaultText' string='"hello" "X3D!"'>

<FontStyle DEF='DefaultFontStyle'/>

</Text>
<Appearance>

<Material DEF='DefaultMaterial' diffuseColor='.2 .2 .2'/>

</Appearance>

</Shape>

</Transform>

</Scene>

</X3D>
<!--

Index for DEF nodes : DefaultAppearance, DefaultBox, DefaultCone, DefaultCylinder, DefaultFontStyle, DefaultMaterial, DefaultShape, DefaultSphere, DefaultText

-->
