TextLengthMaxExtent.x3d (X3dToXhtml listing)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='TextLengthMaxExtent.x3d'/>
<meta name='description' content='Simple Text node, illustrating length array and maxExtent field'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='created' content='25 January 2009'/>
<meta name='modified' content='20 October 2019'/>

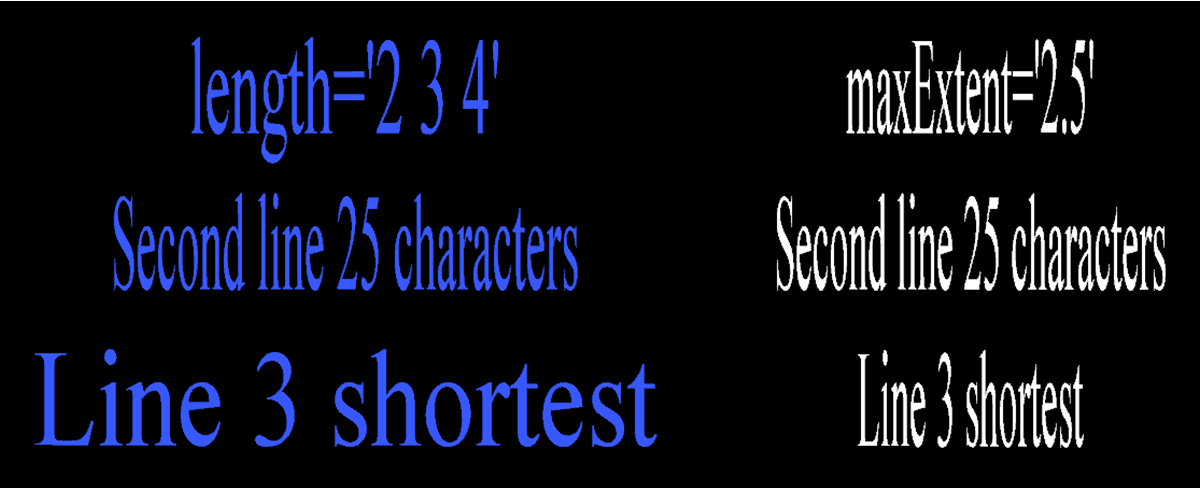

<meta name='reference' content='TextLengthMaxExtent.png'/>
<meta name='rights' content='Copyright (c) Don Brutzman and Leonard Daly, 2005'/>
<meta name='identifier' content=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter02GeometryPrimitives/TextLengthMaxExtent.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

Index for DEF nodes : BlueMaterial, CenteredFontStyle, LengthText, maxExtentText

Index for Viewpoint images : Viewpoint_1, Viewpoint_2

-->
<Scene>

<WorldInfo title='TextLengthMaxExtent.x3d'/>
<Viewpoint description='Default View' position='0 0 6'/>
<Viewpoint description='Book View' position='0.89 -1.11 2.33'/>
<Transform translation='-2 0 0'>

<Shape>

<Text DEF='LengthText' length='2 3 4' string='"length='2 3 4'" "Second line 25 characters" "Line 3 shortest"'>

<FontStyle DEF='CenteredFontStyle' justify='"MIDDLE" "MIDDLE"'/>

</Text>
<Appearance>

<Material DEF='BlueMaterial' diffuseColor='0.219608 0.345098 1'/>

</Appearance>

</Shape>

</Transform>
<Transform translation='2 0 0'>

<Shape>

<Text DEF='maxExtentText' maxExtent='2.5' string='"maxExtent='2.5'" "Second line 25 characters" "Line 3 shortest"'>

<FontStyle USE='CenteredFontStyle'/>

</Text>
<Appearance>

<Material/>

</Appearance>

</Shape>

</Transform>

</Scene>

</X3D>
<!--
