<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='title' content='KeySensorLefty.x3d'/>
<meta name='description' content='A KeySensor is used to change relative Viewpoints looking at the shark Lefty, while a SphereSensor can also rotate Lefty in place.'/>
<meta name='creator' content='Leonard Daly and Don Brutzman'/>
<meta name='created' content='10 June 2006'/>
<meta name='modified' content='20 October 2019'/>
<meta name='reference' content=' https://X3dGraphics.com '/>
<meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rights' content='Copyright 2006, Leonard Daly and Don Brutzman'/>
<meta name='subject' content=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifier' content=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter08UserInteractivity/KeySensorLefty.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
Index for DEF nodes : KeyDetector, KeyHandler, LeftyViewpointsUnrotated, OrientationControl, OrientationDisplay, ReOrient, Rotator, View1, View2, View3, View4, View5, View6
Index for Viewpoint images : View1, View2, View3, View4, View5, View6
-->
<Scene>
<WorldInfo title='KeySensorLefty.x3d'/>
<Background skyColor='1 1 1'/>
<Group DEF='LeftyViewpointsUnrotated'>
<!-- ROUTE information for View1 node:  [from KeyHandler.bind_View1 to set_bind ] -->

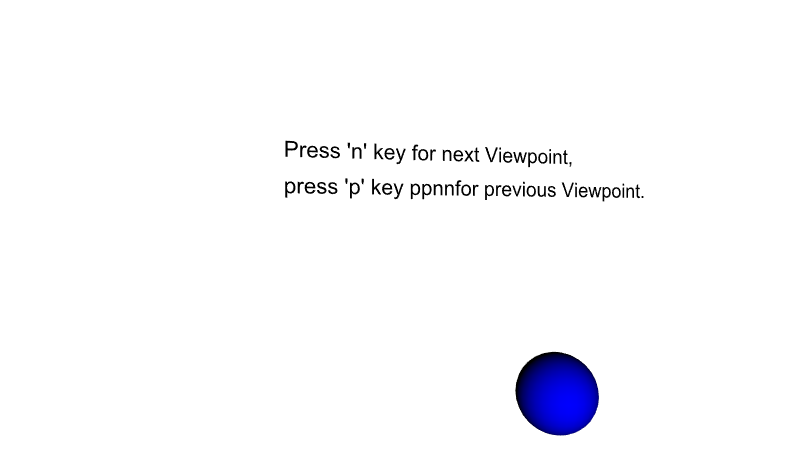

 <Viewpoint DEF='View1' description='Lefty from the Right'/>
<!-- ROUTE information for View2 node:  [from KeyHandler.bind_View2 to set_bind ] -->
 <Viewpoint DEF='View2' description='Lefty from the Front' orientation='0 1 0 1.57' position='10 0 0'/>
<!-- ROUTE information for View3 node:  [from KeyHandler.bind_View3 to set_bind ] -->
 <Viewpoint DEF='View3' description='Lefty from the Left' orientation='0 1 0 3.14' position='0 0 -10'/>
<!-- ROUTE information for View4 node:  [from KeyHandler.bind_View4 to set_bind ] -->
 <Viewpoint DEF='View4' description='Lefty from Behind' orientation='0 1 0 -1.57' position='-10 0 0'/>
<!-- ROUTE information for View5 node:  [from KeyHandler.bind_View5 to set_bind ] -->
 <Viewpoint DEF='View5' description='Lefty from the Top' orientation='1 0 0 -1.57' position='0 10 0'/>
<!-- ROUTE information for View6 node:  [from KeyHandler.bind_View6 to set_bind ] -->
 <Viewpoint DEF='View6' description='Lefty from the Bottom' orientation='1 0 0 1.57' position='0 -10 0'/>
</Group>
<Transform translation='-2 2 0'>
<Billboard axisOfRotation='0 0 0'>
<Shape>
<Appearance>
<Material diffuseColor='0 0 0'/>
</Appearance>
<Text string='"Press 'n' key for next Viewpoint," "press 'p' key ppnnfor previous Viewpoint."'>
<FontStyle family='"SANS"' justify='"BEGIN" "BEGIN"' size='0.5'/>
</Text>
</Shape>
</Billboard>
</Transform>
<Transform DEF='OrientationControl' translation='2 -2 3'>
<!-- ROUTE information for Rotator node:  [from rotation_changed to OrientationDisplay.rotation ] [from rotation_changed to ReOrient.rotation ] -->
 <SphereSensor DEF='Rotator' description='Select and drag to rotate'/>
<!-- ROUTE information for OrientationDisplay node:  [from Rotator.rotation_changed to rotation ] -->
 <Transform DEF='OrientationDisplay'>
<Shape>
<Appearance>
<Material diffuseColor='0 0 1'/>
</Appearance>
<Sphere radius='.5'/>
</Shape>
</Transform>
</Transform>
<Transform scale='3 3 3'>
<!-- ROUTE information for ReOrient node:  [from Rotator.rotation_changed to rotation ] -->
 <Transform DEF='ReOrient'>
<Inline
  url=' "../KelpForestExhibit/SharkLefty.x3d" "https://X3dGraphics.com/examples/X3dForWebAuthors/KelpForestExhibit/SharkLefty.x3d" "../KelpForestExhibit/SharkLefty.wrl" "https://X3dGraphics.com/examples/X3dForWebAuthors/KelpForestExhibit/SharkLefty.wrl" '/>
</Transform>
</Transform>
<ROUTE fromNode='Rotator' fromField='rotation_changed' toNode='OrientationDisplay' toField='rotation'/>
<ROUTE fromNode='Rotator' fromField='rotation_changed' toNode='ReOrient' toField='rotation'/>
<!-- ROUTE information for KeyDetector node:  [from keyPress to KeyHandler.keyPress ] -->
 <KeySensor DEF='KeyDetector'/>
<!-- ROUTE information for KeyHandler node:  [from KeyDetector.keyPress to keyPress ] [from bind_View1 to View1.set_bind ] [from bind_View2 to View2.set_bind ] [from bind_View3 to View3.set_bind ] [from bind_View4 to View4.set_bind ] [from bind_View5 to View5.set_bind ] [from bind_View6 to View6.set_bind ] -->
 <Script DEF='KeyHandler'
  url=' "KeySensorLeftyScript.js" "https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter08UserInteractivity/KeySensorLeftyScript.js" '>
<field name='keyPress' type='SFString' accessType='inputOnly'/>
<field name='viewpointIndex' type='SFInt32' value='1' accessType='initializeOnly'/>
<field name='bind_View1' type='SFBool' accessType='outputOnly'/>
<field name='bind_View2' type='SFBool' accessType='outputOnly'/>
<field name='bind_View3' type='SFBool' accessType='outputOnly'/>
<field name='bind_View4' type='SFBool' accessType='outputOnly'/>
<field name='bind_View5' type='SFBool' accessType='outputOnly'/>
<field name='bind_View6' type='SFBool' accessType='outputOnly'/>
</Script>
<ROUTE fromNode='KeyDetector' fromField='keyPress' toNode='KeyHandler' toField='keyPress'/>
<ROUTE fromNode='KeyHandler' fromField='bind_View1' toNode='View1' toField='set_bind'/>
<ROUTE fromNode='KeyHandler' fromField='bind_View2' toNode='View2' toField='set_bind'/>
<ROUTE fromNode='KeyHandler' fromField='bind_View3' toNode='View3' toField='set_bind'/>
<ROUTE fromNode='KeyHandler' fromField='bind_View4' toNode='View4' toField='set_bind'/>
<ROUTE fromNode='KeyHandler' fromField='bind_View5' toNode='View5' toField='set_bind'/>
<ROUTE fromNode='KeyHandler' fromField='bind_View6' toNode='View6' toField='set_bind'/>
</Scene>
</X3D>
<!--
