ProximitySensorOverlap.x3d (X3dToXhtml listing)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='ProximitySensorOverlap.x3d'/>
<meta name='description' content='Example multiply-instanced ProximitySensor with overlapping regions'/>
<meta name='creator' content='Leonard Daly and Don Brutzman'/>
<meta name='created' content='15 July 2006'/>
<meta name='modified' content='20 October 2019'/>
<meta name='reference' content='ProximitySensorMultiple.x3d'/>
<meta name='reference' content='ProximitySensorNoOverlap.x3d'/>
<meta name='reference' content='ProximitySensorSingle.x3d'/>
<meta name='reference' content=' https://X3dGraphics.com '/>
<meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rights' content='Copyright Don Brutzman and Leonard Daly 2007'/>
<meta name='subject' content=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifier' content=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter12EnvironmentSensorSound/ProximitySensorOverlap.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

Index for DEF nodes : BoxOutline, BoxSurface, HereIAm1, LocationReport, SensorGroup, SensorSize

Index for Viewpoint image : Viewpoint_1

-->
<Scene>

<WorldInfo title='ProximitySensorOverlap.x3d'/>

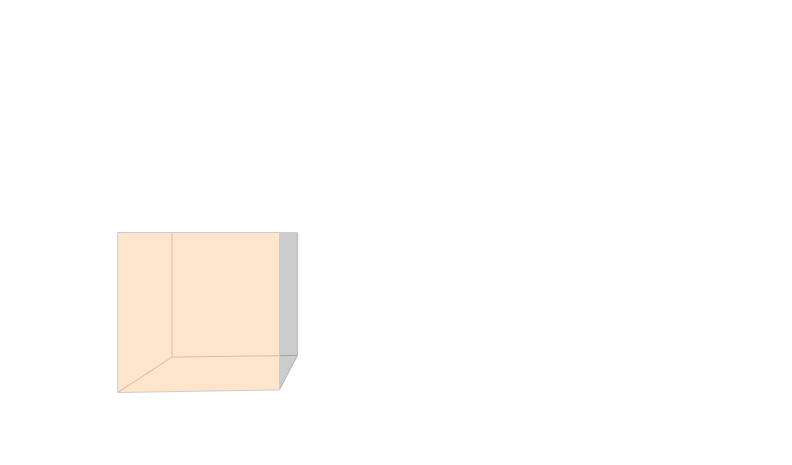

<Viewpoint description='Book Viewpoint' orientation='0 1 0 -0.06' position='0.05 0 8.71'/>
<Background skyColor='1 1 1'/>
<Collision enabled='false'>

<Transform DEF='SensorGroup'>

<ProximitySensor DEF='HereIAm1' size='2 2 2'/>
<Transform DEF='SensorSize'>

<Shape DEF='BoxOutline'>

<Appearance>

<Material emissiveColor='0.8 0.8 0.8'/>

</Appearance>
<IndexedLineSet coordIndex='0 1 2 3 0 -1 4 5 6 7 4 -1 0 4 -1 1 5 -1 2 6 -1 3 7 -1'>

<Coordinate point='1 1 1 1 1 -1 1 -1 -1 1 -1 1 -1 1 1 -1 1 -1 -1 -1 -1 -1 -1 1'/>

</IndexedLineSet>

</Shape>
<Shape DEF='BoxSurface'>

<Appearance>

<Material diffuseColor='1 .5 0' transparency='.8'/>

</Appearance>
<Box/>

</Shape>

</Transform>

</Transform>

</Collision>
<Collision enabled='false'>

<Transform rotation='.707 .707 0 1' translation='3 1 2'>

<ProximitySensor USE='HereIAm1'/>
<Transform USE='SensorSize'/>

</Transform>

</Collision>
<Collision enabled='false'>

<Transform translation='-1 .5 -.5'>

<ProximitySensor USE='HereIAm1'/>
<Transform USE='SensorSize'/>

</Transform>

</Collision>
<Collision enabled='false'>

<Transform translation='-2 -1 .5'>

<ProximitySensor USE='HereIAm1'/>
<Transform USE='SensorSize'/>

</Transform>

</Collision>

<Script DEF='LocationReport'
url=' "ProximitySensorSingleScriptLocationReport.js" "https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter12EnvironmentSensorSound/ProximitySensorSingleScriptLocationReport.js" '>

<field name='position' type='SFVec3f' accessType='inputOnly'/>
<field name='orientation' type='SFRotation' accessType='inputOnly'/>

</Script>
<ROUTE fromNode='HereIAm1' fromField='position_changed' toNode='LocationReport' toField='position'/>
<ROUTE fromNode='HereIAm1' fromField='orientation_changed' toNode='LocationReport' toField='orientation'/>

</Scene>

</X3D>
<!--
