<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Interchange' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='titlecontent='TriangleSetExample.x3d'/>
<meta name='descriptioncontent='A simple example of the use of the TriangleSet node.'/>
<meta name='createdcontent='22 May 2006'/>
<meta name='modifiedcontent='14 June 2020'/>
<meta name='creatorcontent='Leonard Daly and Don Brutzman'/>
<meta name='referencecontent=' https://X3dGraphics.com '/>
<meta name='referencecontent=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rightscontent='Copyright 2006, Daly Realism and Don Brutzman'/>
<meta name='subjectcontent=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifiercontent=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter13GeometryTrianglesQuadrilaterals/TriangleSetExample.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!--

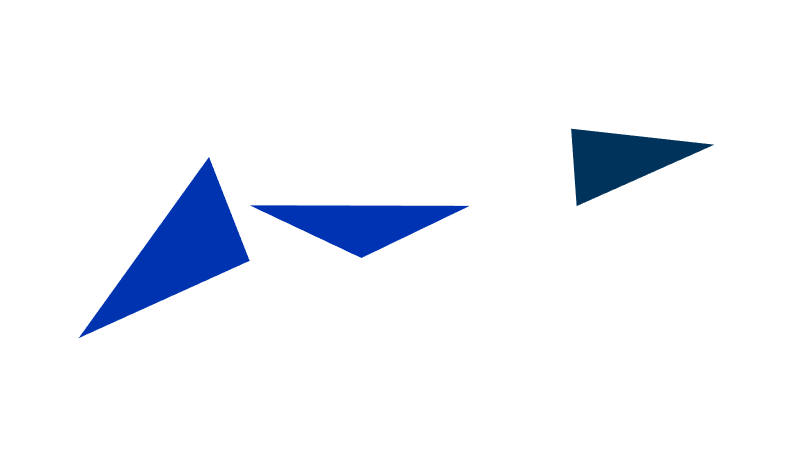

Index for Viewpoint images : Viewpoint_1, Viewpoint_2
-->
<Scene>
<WorldInfo title='TriangleSet.x3d'/>
<Viewpoint description='Book View 1orientation='0 -1 0 0.05position='0.13 2.51 11.24'/>
<Viewpoint description='Book View 2orientation='-0.247 -0.964 -0.101 0.695position='-4.96 3.13 7.09'/>
<Background skyColor='1 1 1'/>
<Transform>
<Shape>
<Appearance>
<Material diffuseColor='0 0 1emissiveColor='0 .2 0shininess='.8specularColor='.3 0 0'/>
</Appearance>
<TriangleSet ccw='truecolorPerVertex='truenormalPerVertex='truesolid='falsecontainerField='geometry'>
<Coordinate point='-4 1 3 -2 2 1 -3 4 0 0 2 0 2 3 1 -2 3 1 5 5 -2 4 3 1 6 4 2'/>
</TriangleSet>
</Shape>
</Transform>
</Scene>
</X3D>
<!--

Index for Viewpoint images : Viewpoint_1, Viewpoint_2
-->

<!-- Color key: <X3dNode field='value'/> matches <XmlElement attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->

<!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources and X3D Scene Authoring Hints. -->
