HTML Object Tag for X3D

The following examples show how to place an X3D object within an HTML page.

X3D plugin object (if installed)   No X3D plugin installed   HTML source
Online example scene:   Anchor-link text backup:
  Select an X3D plugin to see this example...

 <html>
  <body>

   <object data="http://www.web3d.org/x3d/content/examples/HelloWorld.x3d"
     type="model/x3d+xml" height="360" width="300">

     <param name="src" value="http://www.web3d.org/x3d/content/examples/HelloWorld.x3d"/>
     <param name="DASHBOARD" value="FALSE"/>
     <param name="SPLASHSCREEN" value="FALSE"/>

     <!-- the following anchor-link text is only displayed to user if no X3D plugin is already installed -->
     <div class="noX3dPluginInstalled">
       <a href="http://www.web3d.org/x3d/content/examples/X3dResources.html#Applications" target="helpPage">
       Select an X3D plugin to see this example...</a>
     </div>

   </object>

  </body>
 </html>
Online example scene:   Anchor-link image backup:

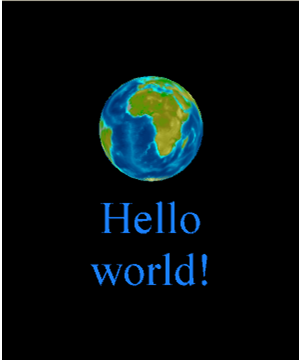

Click image to select an X3D plugin
  Click image to select an X3D plugin

 <html>
  <body>

   <object data="http://www.web3d.org/x3d/content/examples/HelloWorld.x3d"
     type="model/x3d+xml" height="360" width="300">

     <param name="src" value="http://www.web3d.org/x3d/content/examples/HelloWorld.x3d"/>
     <param name="DASHBOARD" value="FALSE"/>
     <param name="SPLASHSCREEN" value="FALSE"/>

     <!-- the following anchor-link image is only displayed to user if no X3D plugin is already installed -->
     <div class="noX3dPluginInstalled">
     <a href="http://www.web3d.org/x3d/content/examples/X3dResources.html#Applications" target="helpPage">
          <img src="HelloWorldTall.png" height="360" width="300" alt="Click image to select an X3D plugin" />
     </a>
     </div>

   </object>

  </body>
 </html>

Design notes

Acknowledgements

Thanks to X3D/HTML experts Joe Williams (Hypermultimedia) and Leonard Daly (Daly Realism) for their help troubleshooting this design pattern among multiple X3D browsers.

Contact

Questions, suggestions and comments about these resources are welcome. Please send them to Don Brutzman (brutzman at nps.edu)
Available online at http://www.web3d.org/x3d/content/examples/HtmlObjectTagForX3d.html
Updated: 15 May 2010
