BouncingBoxSimulink.x3d (X3dToXhtml listing)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Interchange' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='BouncingBoxSimulink.x3d'/>
<meta name='description' content='Bounce a flexible Box up and down by adapting an example from Mathworks Matlab using Simulink for animation.'/>
<meta name='creator' content='Ben Cheng and Don Brutzman'/>
<meta name='translator' content='Ben Cheng'/>
<meta name='created' content='1 October 2014'/>
<meta name='modified' content='20 October 2019'/>
<meta name='Image' content='BouncingBoxSimulinkLooping.png'/>

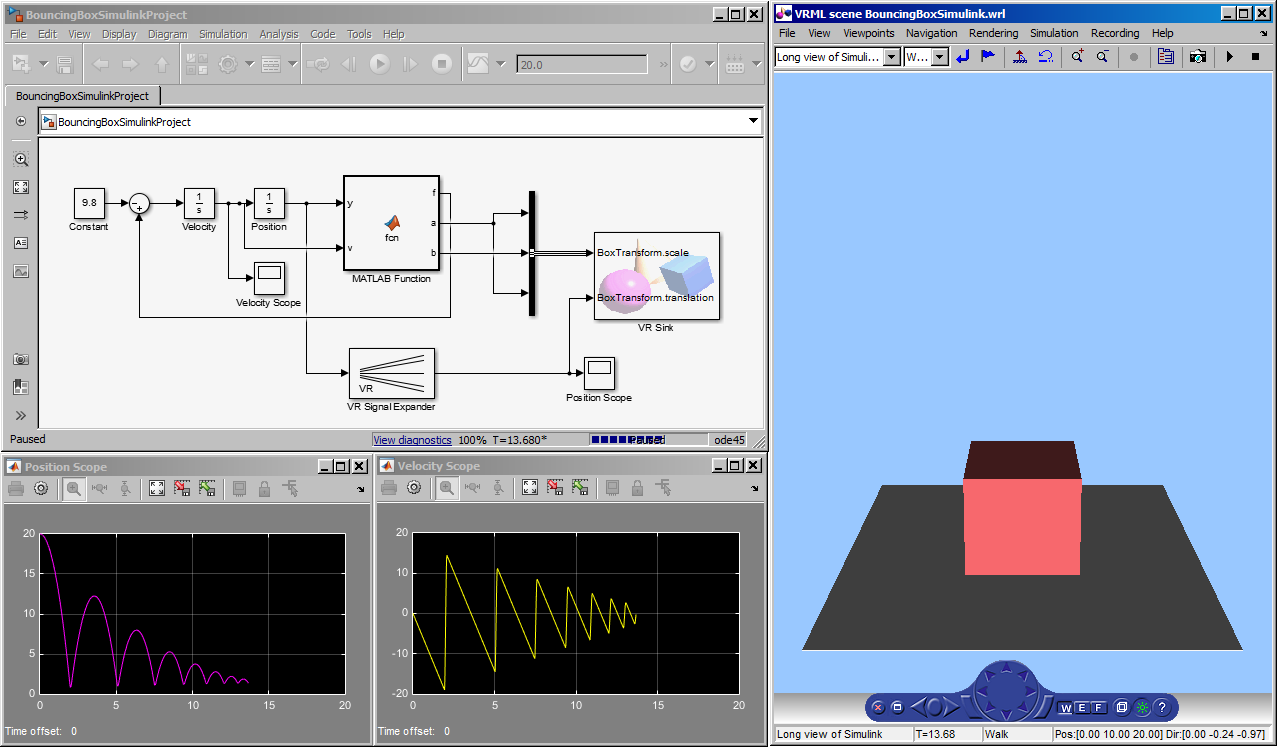

<meta name='Image' content='BouncingBoxSimulink.png'/>
<meta name='info' content='Matlab users can select one of the following Simulink project links to run this demo. Each uses the VRML .wrl version of the scene.'/>
<meta name='reference' content='BouncingBoxLooping.slx'/>
<meta name='reference' content='BouncingBoxNoAttenuation.slx'/>
<meta name=' TODO ' content=' delete from version control: BouncingBoxSimulinkProject.slx '/>
<meta name='reference' content='BouncingBoxSimulink.wrl'/>
<meta name='reference' content='MatlabSimulinkBouncingBoxVrmlDemo.mov'/>
<meta name='reference' content='BouncingBoxSimulinkMatlabVRtoolExample.pdf'/>
<meta name='reference' content='BouncingBoxSimulinkMatlabVRtoolExample.doc'/>
<meta name='reference' content='MatlabSimulinkX3D-Web3D2015FastForwardChengBrutzman.pdf'/>
<meta name='reference' content='MatlabSimulinkX3D-Web3D2015FastForwardChengBrutzman.pptx'/>
<meta name='reference' content='SimulinkX3dPosterChengBrutzman2015May14_letter.pdf'/>
<meta name='reference' content='SimulinkX3dPosterChengBrutzman2015May14_letter.pptx'/>
<meta name='reference' content='SimulinkX3dPosterChengBrutzman2015May11_widescreen.pdf'/>
<meta name='reference' content='SimulinkX3dPosterChengBrutzman2015May11_widescreen.pptx'/>
<meta name='reference' content=' http://www.mathworks.com/help/sl3d/examples/bouncing-ball.html '/>
<meta name='reference' content=' http://www.mathworks.com '/>
<meta name='reference' content=' http://www.mathworks.com/products/matlab '/>
<meta name='reference' content=' http://www.mathworks.com/products/simulink '/>
<meta name='reference' content=' http://www.mathworks.com/products/3d-animation/features.html '/>
<meta name='reference' content=' http://www.mathworks.com/examples/3d-animation '/>
<meta name='reference' content=' http://www.mathworks.com/products/3d-animation/videos.html '/>
<meta name='reference' content=' http://www.mathworks.com/help/sl3d/index.html#build-virtual-reality-worlds '/>
<meta name='reference' content=' http://www.mathworks.com/help/sl3d/using-cad-models-with-the-simulink-3d-animation-product.html '/>
<meta name='reference' content=' http://www.mathworks.com/help/physmod/sm/mech/vis/visualizing-with-a-virtual-reality-client.html '/>
<meta name='info' content='The accompanying wish list describes how Matlab and Humusoft should improve their support for X3D, instead of using VRML and being many years out of date.'/>
<meta name='reference' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/Matlab/MathworksWishList.txt '/>
<meta name='requires' content='MATLAB R2014B for Simulink animation to work'/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/Matlab/BouncingBoxSimulink.x3d '/>
<meta name='reference' content=' http://web3d.org/pipermail/x3d-public_web3d.org/2014-October/002975.html '/>
<meta name='generator' content='Matlab, http://www.mathworks.org'/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

Index for DEF nodes : BoxTransform, GroundPlane

Index for Viewpoint images : Viewpoint_1, Viewpoint_2

-->
<Scene>

<WorldInfo title='BouncingBoxSimulink.x3d'/>
<Viewpoint description='Hello Matlab Simulink bouncing box!' orientation='1 0 0 0.942478' position='0 -15 18'/>
<Viewpoint description='Closeup view Simulink bouncing box!' orientation='1 0 0 -0.463648' position='0 6 12'/>
<Background skyColor='0.6 0.784314 1'/>
<NavigationInfo/>
<Transform DEF='BoxTransform' translation='0 0 1'>

<Shape>

<Box/>
<Appearance>

<Material diffuseColor='1 0.419608 0.439216'/>

</Appearance>

</Shape>

</Transform>
<Transform DEF='GroundPlane'>

<Shape>

<Box size='10 10 0.02'/>
<Appearance>

<Material diffuseColor='1 1 1'/>

</Appearance>

</Shape>

</Transform>

</Scene>

</X3D>
<!--
